Mocka Parker 6 Drawer Assembly Instructions Manual

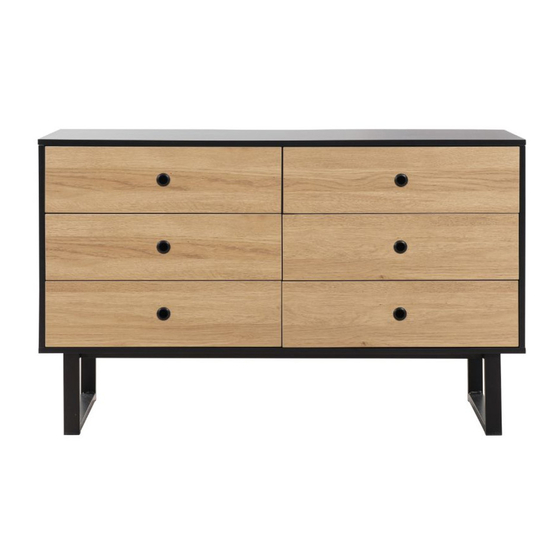

Parker 6 Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B
bolt & 50mm screw 30mm screw
locking nut x8
x36
G
F
14mm screw
18mm screw
x48
x10
F L
14mm screw 25mm screw
x2 x2
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C D
E1
50mm screw
x8 x24
H I J
bracket pin dowel
x10 x2 x12
Hardware Supplied
M N
wall plug wall strap
x2 x2
E
E3
E4
E2
rails
x12
K
handle
x6
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
Wall Strap
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
1
