Jolt Six Drawer - Slim
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
locking
bolt
dowel
nut x16
x16
x32
H
I
G
L + R slide
L + R slide
rail x6
rail x6

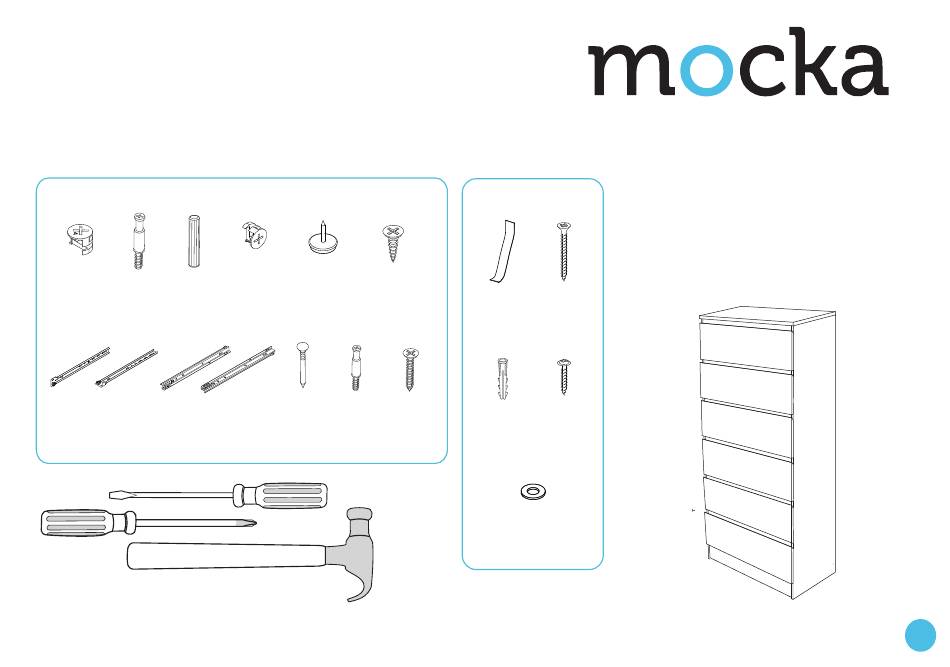

Hardware Supplied
Phillips & Flathead screwdriver and hammer required
For quicker assembly, we recommend the use of a
power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
F
small
plastic
small
locking
glide x4
screw x60
nut x24
K
J
M
L
nail
small
screw
x24
bolt x24
x24
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
potential to tip over in certain circumstances, i.e. if a child
V
W
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Wall
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
Any furniture that is not anchored to a wall has the
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jolt Six Drawer - Slim
Summary of Contents for Mocka Jolt Six Drawer - Slim
- Page 1 Jolt Six Drawer - Slim Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Jolt Six Drawer - Slim Assembly Instructions Attach 6x slide rails (G) to panel [2] with 18x small screws (F). Attach Insert 6x bolts (B) into panel [2]. Insert 6x bolts (B) into panel [3]. 6x slide rails (H) to panel [3] with 18x small screws (F). Tighten with a screwdriver.
- Page 3 Jolt Six Drawer - Slim Assembly Instructions Insert 14x dowels (C) into panel [2] as shown, and attach panels [4], Insert 14x dowels (C) into the tops of panels [4], [5], [6], [7] and [8] and [5], [6], [7] and [8]. Secure with 6x locking nuts (A) and tighten with a attach panel [3].
- Page 4 Jolt Six Drawer - Slim Assembly Instructions Insert 4x bolts (B) into panel [1]. Attach panel [1] to the rest of the unit with 4x dowels (C). Secure with 4x locking nuts (A) and tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 5 Jolt Six Drawer - Slim Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panels [9] to the back of the unit using the connector [10]. Insert 4x plastic glides (E) into the base of the unit. Secure the panels with 24x nails (K) using a hammer.
- Page 6 Jolt Six Drawer - Slim Assembly Instructions Drawers x6 Insert 4x small bolts (L) into panel [11]. Attach side panels [12] and [13] Slide panel [14] between the grooves of the side panels to form the base and secure with 4x locking nuts (D). Tighten with a screwdriver.
- Page 7 Jolt Six Drawer - Slim Assembly Instructions Attach slide rails (I) and (J) to the sides of the drawer and secure with Insert the completed drawers into the unit, ensuring they slide easily 4x small screws (F). Tighten with a screwdriver.
- Page 8 Jolt Six Drawer - Slim Assembly Instructions Wall Strap Strap Washer wall anchor wall screw washer Carefully lay unit on its front and attach safety strap (V) to the top of the Move the unit into the desired location up against a wall. Use a drill to back side of the unit using 1x washer (Z) and 1x screw (Y).
