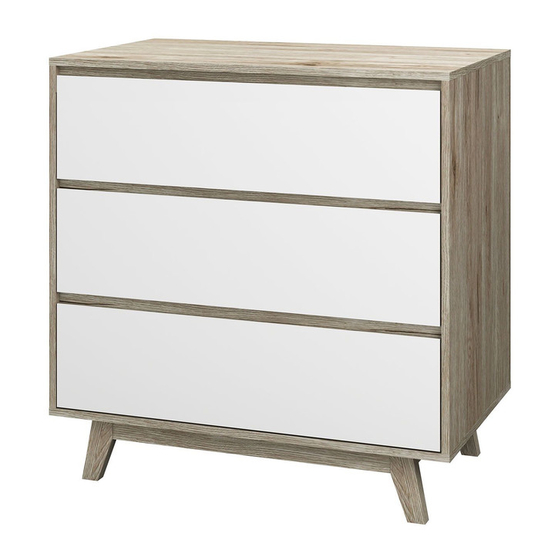

Jesse Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x17
x18
F
G
CL runner tracks
CR runner tracks
x3
x3
L
K
cam bolt
cam nut
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au
C
D
bolt
locking nut
x43
x43
H
I
DL runners
DR runners
x3
x3
M
N
wedge
scerw
x4
x4

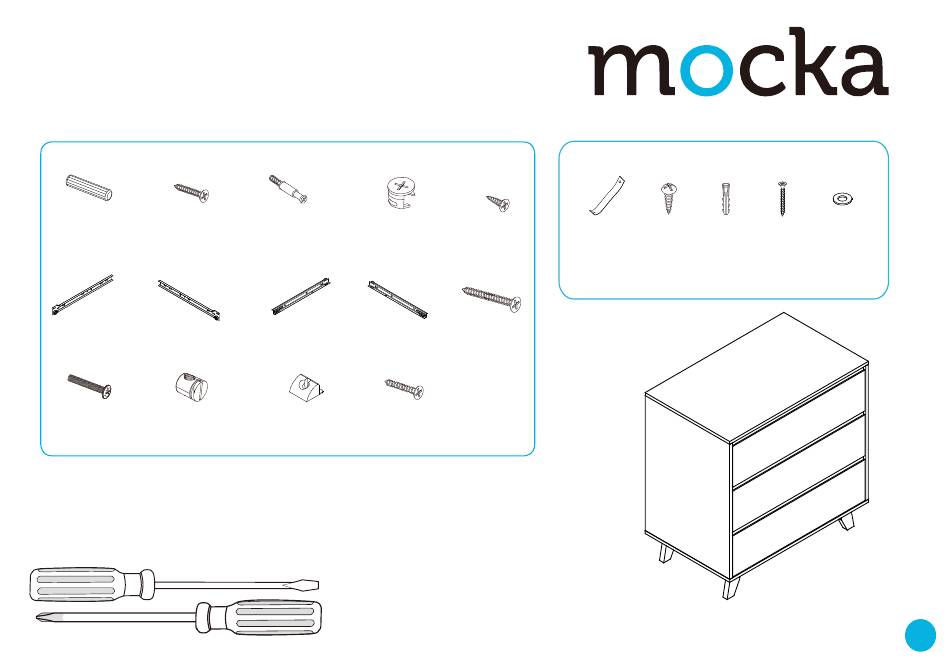

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
V
small screw
safety
x30
strap x1
J
long
scerw
x4
W
X
Y
screw
wall
wall
washer
x1
anchor
screw
x1
x1
Wall Strap
Z
x2
1
Advertisement
Related Manuals for Mocka Jesse Three Drawer
Summary of Contents for Mocka Jesse Three Drawer
- Page 1 Jesse Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. dowel screw bolt small screw locking nut safety screw wall wall washer strap x1 anchor screw Wall Strap CL runner tracks CR runner tracks...
- Page 2 Jesse Three Drawer Assembly Instructions Attach 3xCL runner tracks (F) to panel [2] using 9x small screws (E). Insert 6x bolts (C) into panel [2]. Insert 6x bolts (C) into panel [3]. Attach 3xCR runner tracks (F) to panel [3] using 9x small screws (E).
- Page 3 Jesse Three Drawer Assembly Instructions Attach panels [5] and [6] to panels [3] and [2] using 12x locking Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 4 Jesse Three Drawer Assembly Instructions Attach panel [1] to panel [2] , [3] and [5] using 6x dowels (A) and Insert connector [8] to join panels [7]. secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 5 Jesse Three Drawer Assembly Instructions Slide panels [7] along the grooves between the side panels [2] Insert 4x dowels (A) into the top of panel [2] and [3]. Attach the base panel and [3]. [4] by inserting 4x long screws (J) and tighten with a screwdriver.
- Page 6 Jesse Three Drawer Assembly Instructions Insert 8x bolts (C) into panel [4]. Tighten with a screwdriver. Insert 2x dowels (A) and screw 2x cam bolts (C) into panels [11] and [12]. Attach panel [10] , [11] and [12] using 2x locking nuts (D). Tighten with a screwdriver.
- Page 7 Jesse Three Drawer Assembly Instructions Insert 2x cam nuts (L) into each support panel [9]. Attach panels Attach the base and legs using 8x locking nuts (D). Tighten with [11] and [12] to panels [9] using 4x cam bolt (K). Tighten with a a screwdriver.
- Page 8 Jesse Three Drawer Assembly Instructions Insert 5x bolts (C) into panel [13]. Tighten with a screwdriver. Insert dowel (A) into panel [13]. Attach panels [14], [15] and [17] to panel [13] secure with 5x locking nuts (D). Tighten with a screwdriver.
- Page 9 Jesse Three Drawer Assembly Instructions Slide panel [16] along the grooves between the side panels [14] Attach panels [14], [15] and [18] as shown using 6x screws (B). and [15] to form the base of the drawer. Tighten with a screwdriver.
- Page 10 Jesse Three Drawer Assembly Instructions Insert the assembled drawers into the corresponding compartments as Attach slide rails (I) and slide rails (H) to the underside of the side panels as shown. Secure with 4x screws (E) and tighten with a shown.
- Page 11 Jesse Three Drawer Assembly Instructions Attach 4x wedges (M) into the corners of the back of the unit and Once assembled lift furniture into place, do not drag. Use a drill to create secure with 4x screws (N). Tighten with a screwdriver. Attach 1x a small hole lining up with the top of the safety strap (V).
