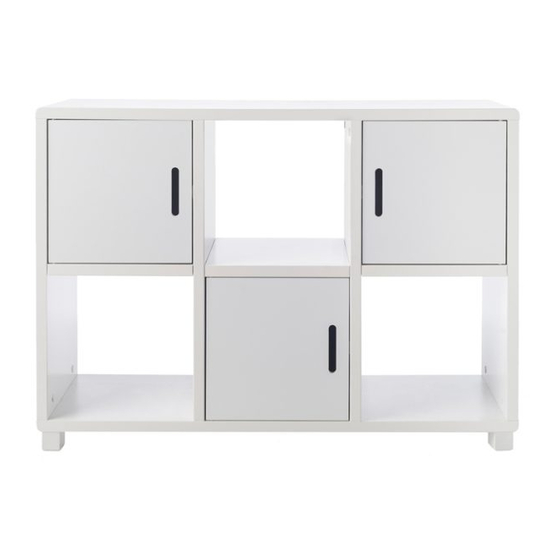

Mocka Essentials 6 Cube
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
x28
x8
x28
E
F
G
H
x6
x18
x3
x6

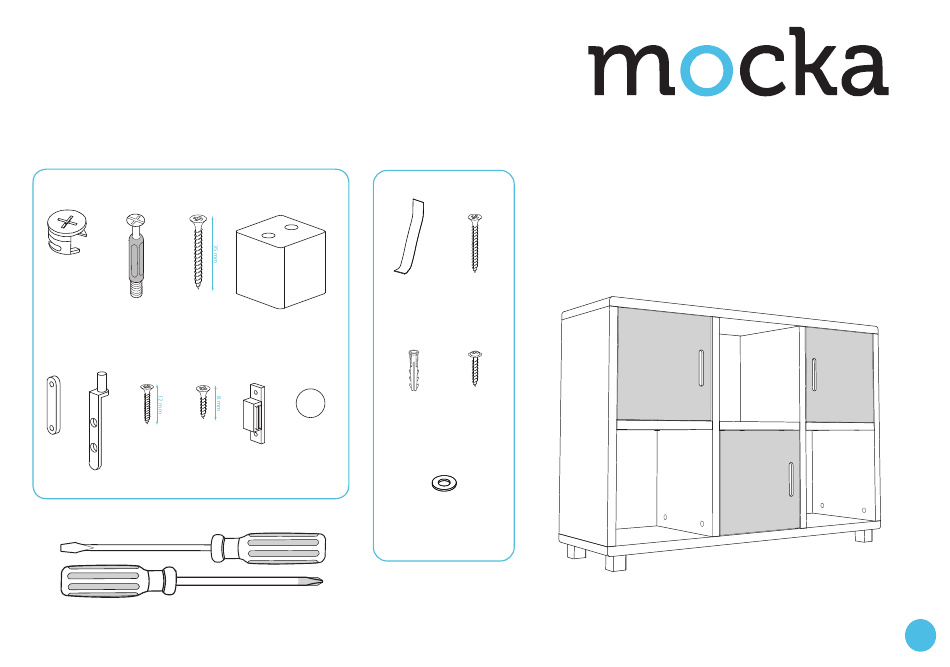

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
W
D
Safety
Strap
x4
X
I
J
wall
anchor
x28
x1
x3
washer
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
Wall
Screw
Y
r/washer
screw
x1
Z
x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Essentials 6 Cube
Summary of Contents for Mocka Essentials 6 Cube
- Page 1 Mocka Essentials 6 Cube Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Mocka Essentials 6 Cube Assembly Instructions Cupboard Doors First, screw hardware (B) into all side panels [1, 3, 5 and 7]. Starting with [1] and Use screws (H) to mount hinge pins (F) to all three cupboard [3], slide both panels together with the middle shelf [2], making sure the grooved doors [9].
- Page 3 Mocka Essentials 6 Cube Assembly Instructions Slide cupboard back panel [8] into grooves as shown. Screw hinge pins Screw hardware (B) into base panel [10]. Place base panel on top while (F) into the holes in the cupboard door. Lower door into pin hole in sliding the ends of (B) into holes on the top of side panels.
- Page 4 Mocka Essentials 6 Cube Assembly Instructions Attach feet blocks (D) to base panel [10] using long screws (C) and the Flip the unit over so the feet stand on the floor. Slide both back panels pre-drilled holes. Fasten clip plate (E) to the cupboard door. Attach [8] into grooves as shown.
- Page 5 Mocka Essentials 6 Cube Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Screw hardware (B) into top panel [11]. Place panel on top of side Check all doors can swing and close easily. Tighten all locking nuts (A). panels while sliding the ends of (B) into the holes. Insert bolts (A).
- Page 6 Mocka Essentials 6 Cube Assembly Instructions Wall Strap Strap Washer wall anchor wall screw wall screw Once assembled lift furniture into place, do not drag. Attach the safety Move unit into desired location up against a wall. Use a drill to create a strap (W) to the top of the back side of the unit using screw (Y).
