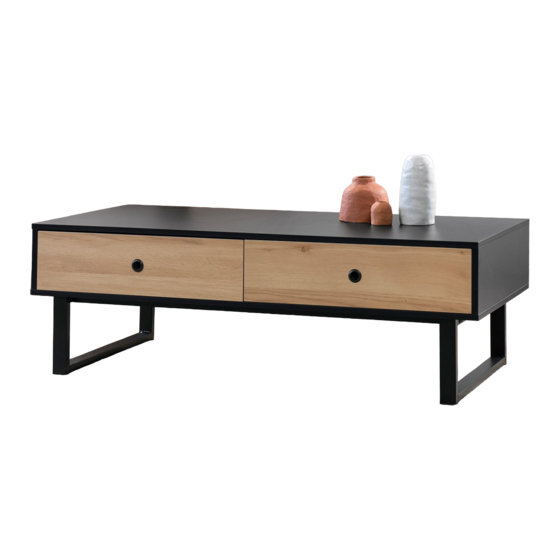

Parker Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt &
50mm screw
locking nut
x8
x32
E
F
E3
E4
E1
E2
rails
14mm screw
x4
x16

Hardware Supplied

Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
30mm screw
50mm screw
x8
x8
G
H
dowel
handle
x12
x2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parker and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Parker

Summary of Contents for Mocka Parker

  • Page 1 14mm screw dowel handle Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 2 Attach panels [3] and [4] to panel [6] and secure with 4 x bolts (A) and 4 x locking nuts (A). Tighten with a screwdriver. screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 3 Attach 2 x rails (E3) to panels [4] and [5] and secure with 4 x screws panel [2] and secure with 8 x bolts (A) and 8 x locking nuts (A). Tighten (F). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 4 Insert 6 x dowels (G) into panels [3], [4] and [5]. Attach panel [1] to (F). Tighten with a screwdriver. panels [3], [4], [5] and [6] and secure with 8 x bolts (A) and 8 x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 5 [12] into position as shown. Attach panels [7] and [8] to assembled frame and secure with 8 x bolts (A) and 8 x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 6 Attach 2 x rail (E2) to panel [9] and secure with 4 x screws (F). Tighten Attach 2 x rail (E4) to panel [10] and secure with 4 x screws (F). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 7 Parker Coffee Table Assembly Instructions Slide drawers into position as shown, ensuring alignment with rails. Once assembled lift furniture into place, do not drag. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
