Brooklyn Change Table & Drawer Set
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
x20
L + R
L + R
x4
F
E
x28
x40
Hardware Supplied
Phillips & Flathead screwdrivers required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
C
D
Safety
Strap
x4
x28
G
H
wall
anchor
x22
x1
x8
WARNING:
W
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Wall
Screw
X
Y
r/washer
screw
x1
Z
washer
x1
Wall Strap
Any furniture that is not anchored to a wall has the potential
1
Advertisement
Table of Contents
Related Manuals for Mocka Brooklyn Change Table and Drawer Set
Summary of Contents for Mocka Brooklyn Change Table and Drawer Set

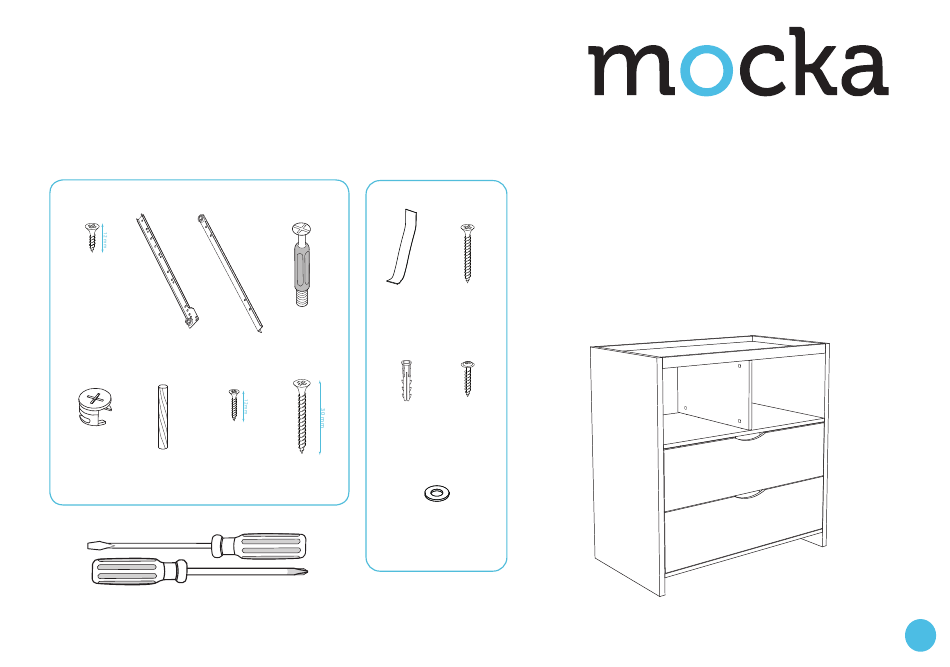

- Page 1 L + R L + R Wall Safety Screw Strap wall r/washer anchor screw Hardware Supplied washer Wall Strap Phillips & Flathead screwdrivers required *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. mocka.co.nz | mocka.com.au...
- Page 2 Lay them all out in order. Screw hardware (D) into holes in pieces two wooden dowels (F) into piece [3] as shown. [1] and [2]. Slot together with table pieces [3] as shown. Place locking nuts (E) into corresponding holes and tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 3 (F) into shelf piece [7]. Push nut (E) into holes in piece [6] as holes on each wooden piece as shown above. Fasten to wood using shown and tighten with a screwdriver. three screws (A) in each. mocka.co.nz | mocka.com.au...
- Page 4 (G) all around to fasten boards to the change table unit. piece, and braces [8] & [9] together between side panels. Secure by placing hardware (E) in corresponding holes in the underside of pieces [3, 7, 8, & 9]. Tighten until rigid. mocka.co.nz | mocka.com.au...
- Page 5 Fit panels [12] and [13] over the bolts as shown, ensuring the grooves dowels (F) into the end of both support braces [17] and peg into holes in in panels face inwards. Secure using 4x locking nuts (E) and tighten front panel [15]. with a screwdriver. mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au...
- Page 6 Finally, attach rail hardware (C) to both left and right side of the drawer back panel [14] into position on dowels and fasten into place using 4x using screws (A). Repeat Steps 7 to 10 until all four drawers are fully screws (H). assembled. mocka.co.nz | mocka.com.au...
- Page 7 Brooklyn Change Table & Drawer Set Assembly Instructions Now both drawers are made up, slide them into rails in the change Ensure the drawers easily slide open and closed. table unit. mocka.co.nz | mocka.com.au...
- Page 8 (Y). Tighten with a screwdriver. a small hole lining up with the top of the safety strap (W). Fasten to wall using wall anchor (X), washer (Z) and screw. Ensure the unit is balaced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au...
