AXIOMTEK IPC934-230-FL Quick Installation Manual

Insert the HDD module into the HDD socket.
Step 5
4 9416G934010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 November 2014
Printed in Taiwan

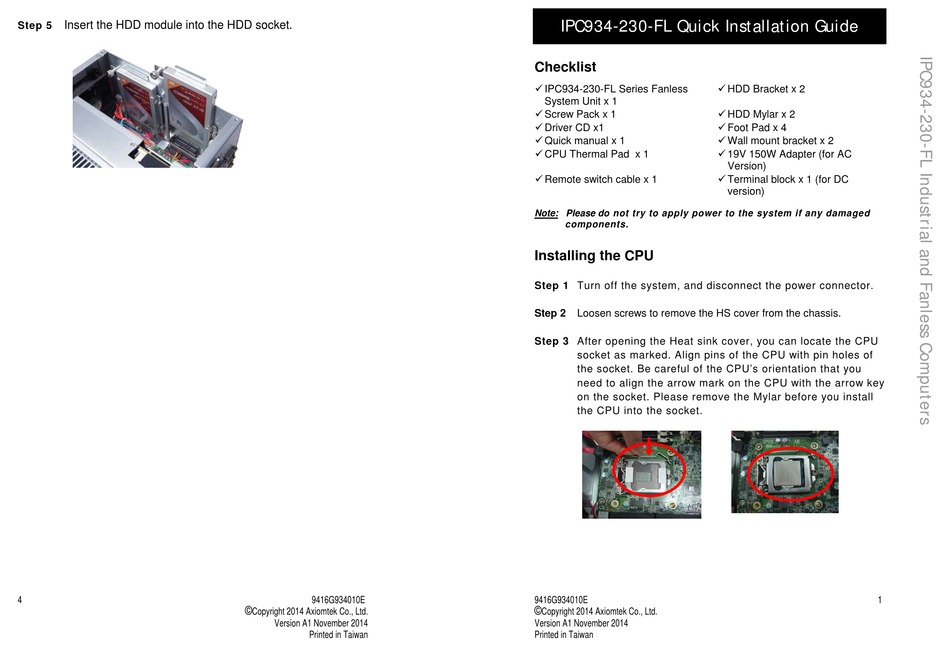

IPC934-230-FL Quick Installation Guide
Checklist

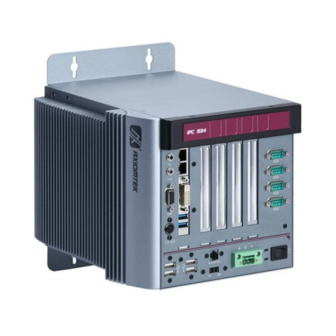

 IPC934-230-FL Series Fanless
System Unit x 1
 Screw Pack x 1
 Driver CD x1
 Quick manual x 1
 CPU Thermal Pad x 1
 Remote switch cable x 1
Note: Please do not try to apply power to the system if any damaged
components.

Installing the CPU

Step 1 Turn off the system, and disconnect the power connector.
Step 2 Loosen screws to remove the HS cover from the chassis.
Step 3 After opening the Heat sink cover, you can locate the CPU
socket as marked. Align pins of the CPU with pin holes of
the socket. Be careful of the CPU's orientation that you
need to align the arrow mark on the CPU with the arrow key
on the socket. Please remove the Mylar before you install
the CPU into the socket.
9416G934010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 November 2014
Printed in Taiwan
 HDD Bracket x 2
 HDD Mylar x 2
 Foot Pad x 4
 Wall mount bracket x 2
 19V 150W Adapter (for AC
Version)
 Terminal block x 1 (for DC
version)
1
