Pre-Drilled Holes
with Anchors
3.1.6

Free-Standing Installations

For a free-standing shelf of table-top installation, install the STHI on an
unrestricted free surface area 21 inches wide, 18 inched deep, and 6 inches
high, within 7 feet of its power source, as shown in Figure 3-6.
18 IN.
6 IN.
Wall-Mounting Bracket
attached to STHi
Mounting Screws

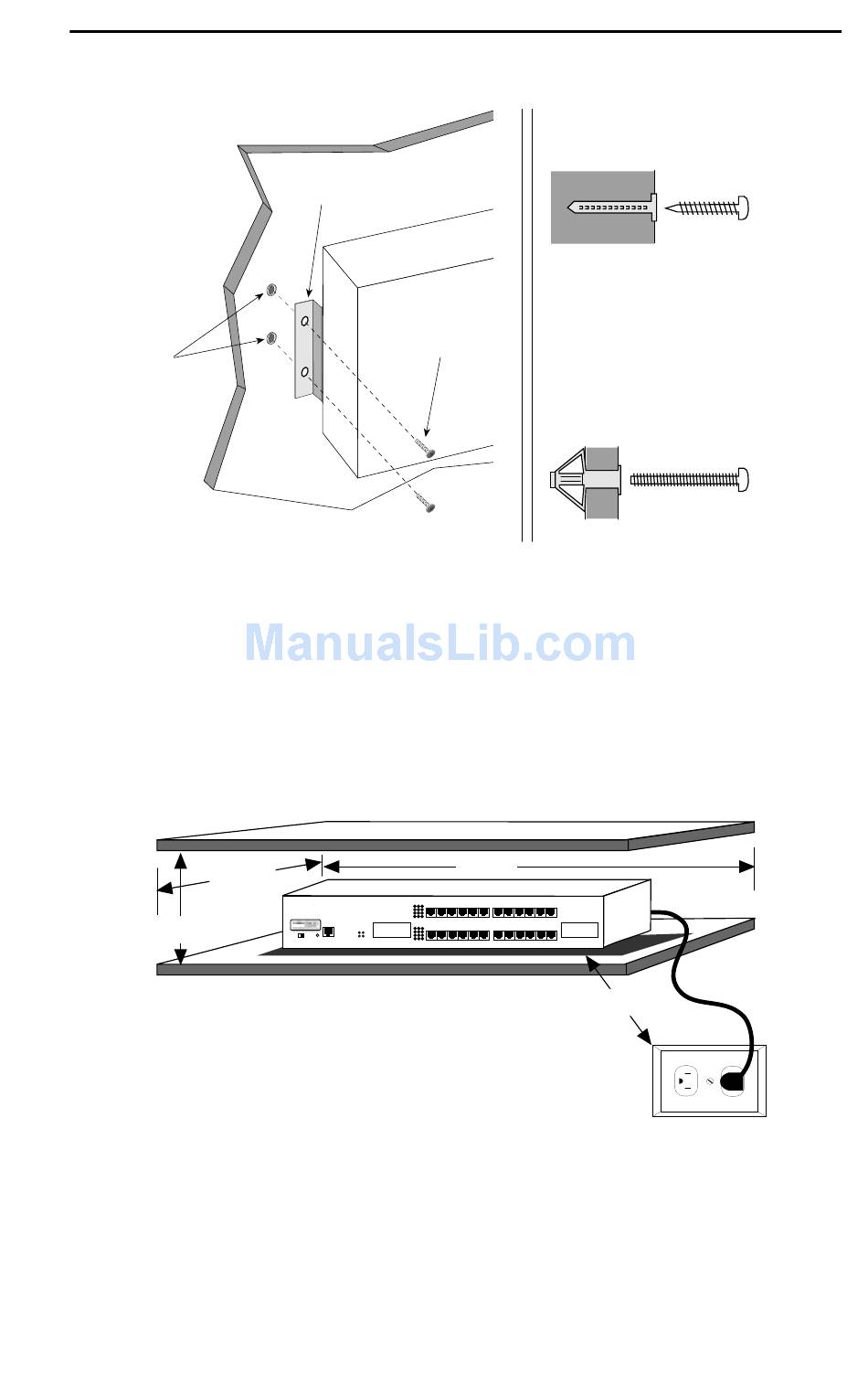

Figure 3-5. Wall-mounting the STHI
HubSTACK TOKEN RING HUB LANVIEW ®
WITH
SUPPORTING 100 OHM UTP CABLE
STHI-24
CPU ACT
4M 16M 16 Mb/s MGMT
RESET
SPEED COM RO
Figure 3-6. Shelf or Table-top Installation
Solid Wall Anchor
Hollow Wall Anchor
21 IN.
24X 23X 22X 21X 20X 19X 18X 17X 16X 15X 14X 13X
RI
12X 11X 10X 9X 8X 7X 6X 5X 4X 3X 2X 1X
Installing the STHI
7 FT.
