2.5

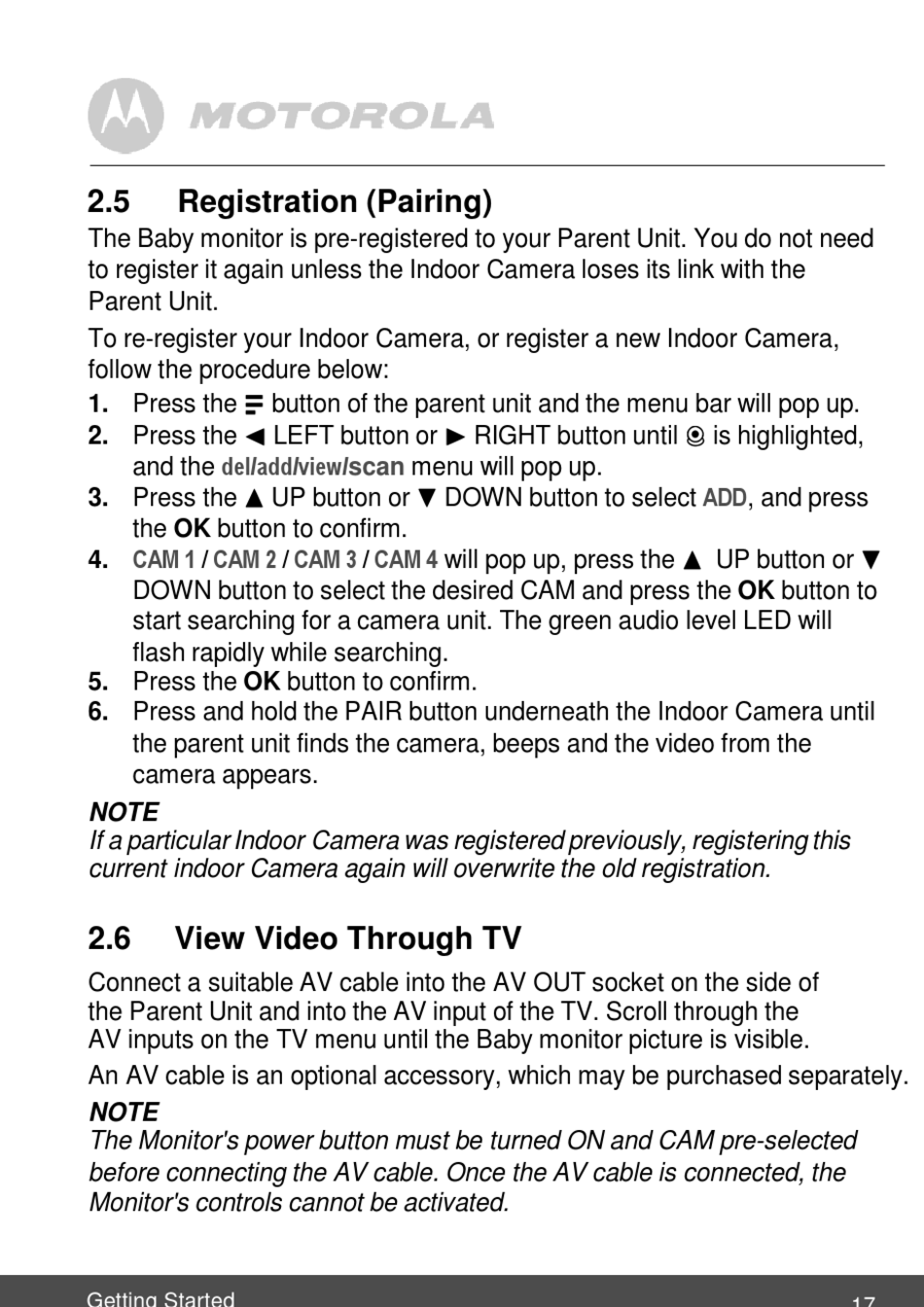

Registration (Pairing)

The Baby monitor is pre-registered to your Parent Unit. You do not need
to register it again unless the Indoor Camera loses its link with the
Parent Unit.
To re-register your Indoor Camera, or register a new Indoor Camera,
follow the procedure below:
1. Press the M button of the parent unit and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until C is highlighted,
del/add/view/scan
and the
3. Press the + UP button or - DOWN button to select ADD, and press
the OK button to confirm.
CAM 1
/
CAM 2
4.
DOWN button to select the desired CAM and press the OK button to
start searching for a camera unit. The green audio level LED will
flash rapidly while searching.
5. Press the OK button to confirm.
6. Press and hold the PAIR button underneath the Indoor Camera until
the parent unit finds the camera, beeps and the video from the
camera appears.
NOTE
If a particular Indoor Camera was registered previously, registering this
current indoor Camera again will overwrite the old registration.
2.6

View Video Through TV

Connect a suitable AV cable into the AV OUT socket on the side of
the Parent Unit and into the AV input of the TV. Scroll through the
AV inputs on the TV menu until the Baby monitor picture is visible.
An AV cable is an optional accessory, which may be purchased separately.
NOTE
The Monitor's power button must be turned ON and CAM pre-selected
before connecting the AV cable. Once the AV cable is connected, the
Monitor's controls cannot be activated.
menu will pop up.
/
CAM 3
/
CAM 4
will pop up, press the + UP button or -
