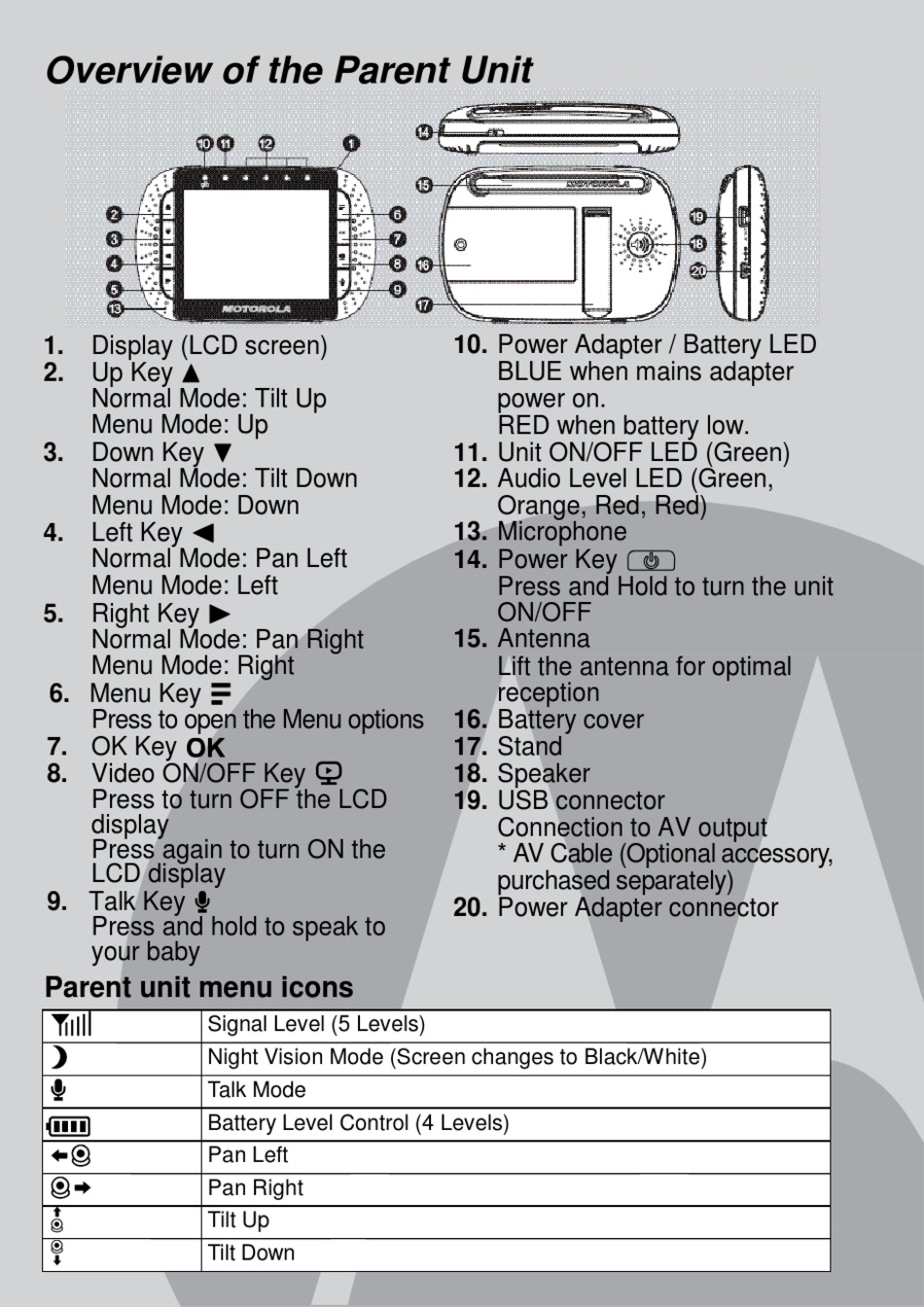

Overview of the Parent Unit
1. Display (LCD screen)
Up Key +
2.
Normal Mode: Tilt Up
Menu Mode: Up
Down Key -
3.
Normal Mode: Tilt Down
Menu Mode: Down
<
4. Left Key
Normal Mode: Pan Left
Menu Mode: Left
>
5. Right Key
Normal Mode: Pan Right
Menu Mode: Right
M
6. Menu Key
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key
Press to turn OFF the LCD
display
Press again to turn ON the
LCD display
T
9. Talk Key
Press and hold to speak to
your baby
Parent unit menu icons
1
Signal Level (5 Levels)
N
Night Vision Mode (Screen changes to Black/White)
T
Talk Mode
B
Battery Level Control (4 Levels)
H
Pan Left
J
Pan Right
K
Tilt Up
L
Tilt Down
10. Power Adapter / Battery LED
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
13. Microphone
14. Power Key
15. Antenna
16. Battery cover
17. Stand
V
18. Speaker
19. USB connector
20. Power Adapter connector
BLUE when mains adapter
power on.
RED when battery low.
Orange, Red, Red)
P
Press and Hold to turn the unit
ON/OFF
Lift the antenna for optimal
reception
Connection to AV output
* AV Cable (Optional accessory,
purchased separately)
