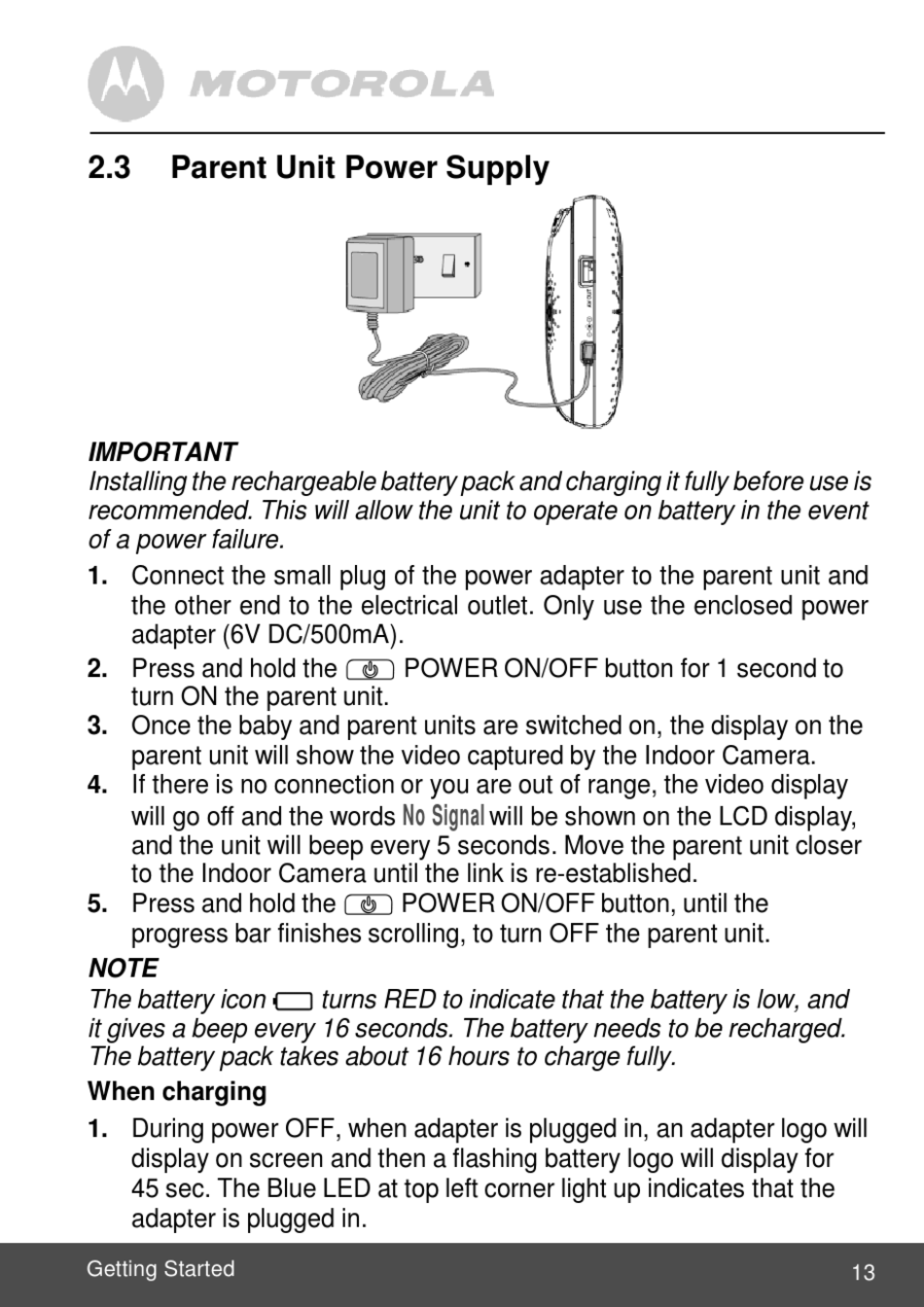

2.3

Parent Unit Power Supply

IMPORTANT
Installing the rechargeable battery pack and charging it fully before use is
recommended. This will allow the unit to operate on battery in the event
of a power failure.
1. Connect the small plug of the power adapter to the parent unit and
the other end to the electrical outlet. Only use the enclosed power
adapter (6V DC/500mA).
2. Press and hold the
turn ON the parent unit.
3. Once the baby and parent units are switched on, the display on the
parent unit will show the video captured by the Indoor Camera.
4. If there is no connection or you are out of range, the video display
will go off and the words
and the unit will beep every 5 seconds. Move the parent unit closer
to the Indoor Camera until the link is re-established.
5. Press and hold the
progress bar finishes scrolling, to turn OFF the parent unit.
NOTE
The battery icon 0 turns RED to indicate that the battery is low, and
it gives a beep every 16 seconds. The battery needs to be recharged.
The battery pack takes about 16 hours to charge fully.
When charging
1. During power OFF, when adapter is plugged in, an adapter logo will
display on screen and then a flashing battery logo will display for
45 sec. The Blue LED at top left corner light up indicates that the
adapter is plugged in.
Getting Started
P
POWER ON/OFF button for 1 second to
No Signal
will be shown on the LCD display,
P
POWER ON/OFF button, until the
