000691024.EN
Seat ing System
Instructions for Use
Zippie/Teens Seat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKIE Zippie/Teens Seat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunrise Medical QUICKIE Zippie/Teens Seat

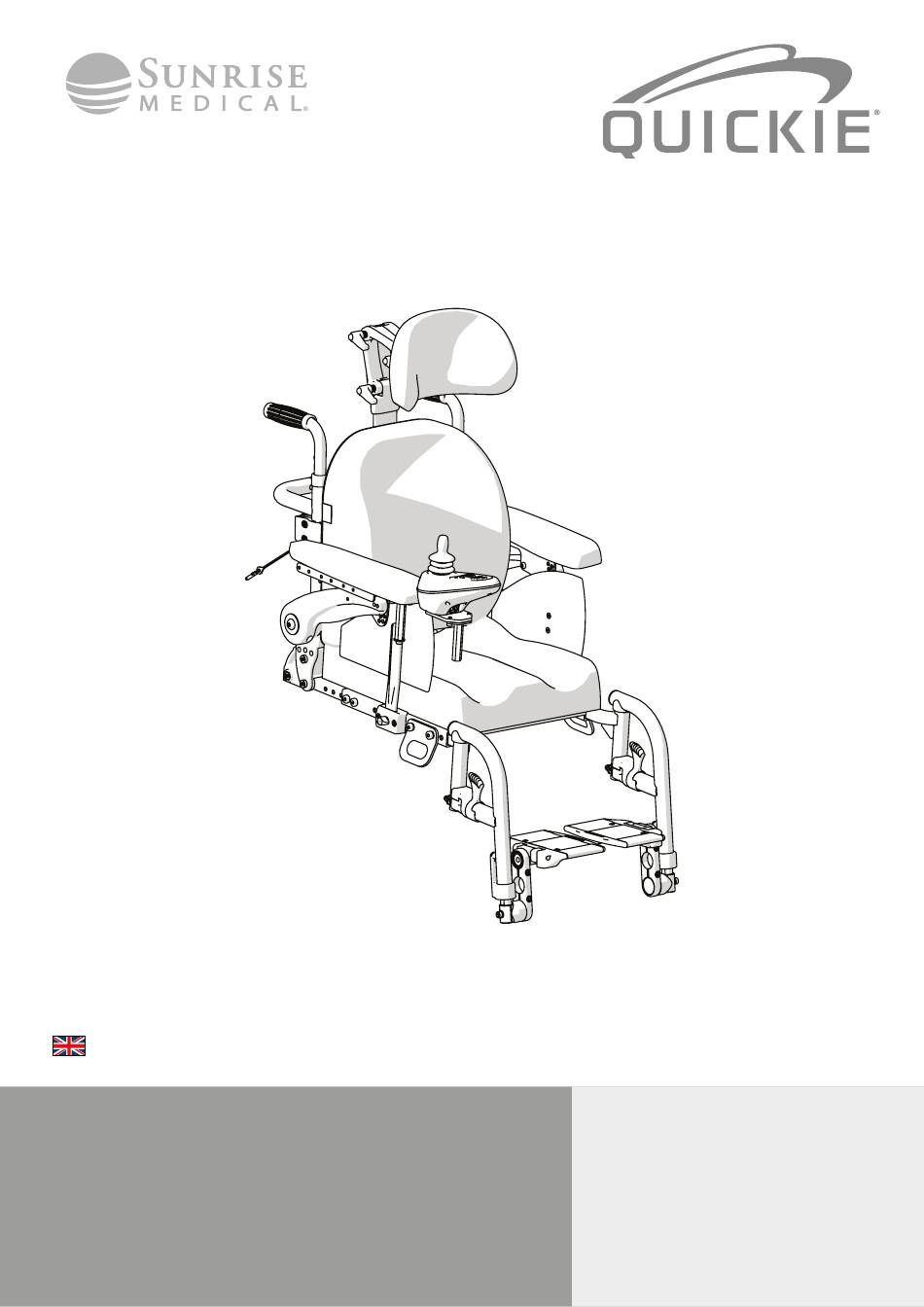

  • Page 1 000691024.EN Seat ing System Instructions for Use Zippie/Teens Seat...
  • Page 2 Wheelchair Components We at SUNRISE MEDICAL have been awarded the ISO-13485 certificate, which affirms the quality of our products at every stage, from R & D to production. This products meet the requirements in accordance with EC guidelines. Options or accessories shown are available at extra cost.
  • Page 3 If you have any queries about the use, maintenance or safety of your seating system, please contact your local approved Sunrise Medical service agent. If you do not know of an approved dealer in your area or have any other questions please write or telephone:...
  • Page 4: Table Of Contents

    Contents 1.0 User information  ..........5 7.0 Reducing the seating system size for transportation purposes  ............31 1.1 This user manual  ������������������������������������������������������5 7.1 Seat cushion  �����������������������������������������������������������31 1.2 For further information  ��������������������������������������������5 7.2 Back cushion  �����������������������������������������������������������31 1.3 Symbols used in this manual  ������������������������������������5 7.3 Swing away legrests  ������������������������������������������������32 2.0 Safety  ..............6 8.0 Maintenance and cleaning  .........33 2.1 Seating related symbols and labels used on the product  ���������������������������������������������������������������������6 8.1 General Maintenance  ���������������������������������������������33 2.2 Safety: Temperature ...
  • Page 5: User Information

    In case there is no authorized dealer in your area or you have any questions, contact Sunrise Medical either in writing or by telephone. For information about product safety notices and product recalls, go to www.SunriseMedical.eu...
  • Page 6: Safety

    2.0 Safety Fig. 2.1 Follow the instructions carefully next to these warning symbols! Not paying careful attention to these instructions could result in physical injury or damage to the wheelchair or the environment. Wherever possible, safety information is provided in the relevant chapter. 2.1 Seating related symbols and labels used on the product The signs, symbols and instructions affixed to the wheelchair comprise part of the safety facilities.
  • Page 7: Safety: Trays

    2.5 Safety: Trays Safety: Vent tray DANGER! / WARNING! Using a vent tray will affect the stability and overall weight of your wheelchair. • Make sure that the batteries and the ventilator are securely fastened to the tray before use. •...
  • Page 8: Setting Up The Seating System

    4.0 Setting up the seating system Fig. 4.1 The average wheelchair user does not exist. This is why Sunrise Medical wheelchairs can be pre-set according to specific needs of the user. Pre-settings are carried out once, the first time the wheelchair is going to be used. They must be executed by qualified specialist, unless explicitly stated otherwise.
  • Page 9: Pre-Set Backrest

    4.3 Pre-set backrest (this adjustment can only be performed Fig. 4.4 by a trained professional) Backrest angle (Fig 4.4) 1. Unscrew and remove (A) on both sides. 2. Adjust (B) to the desired position. 3. Replace and tighten (A). Backrest height Sling Back (Fig 4.5) (Remove sling back before proceeding) 1. Unscrew and remove 4 x (A). 2.
  • Page 10 J3 Back (Fig 4.8) Fig. 4.8 & NOTE: The Jay 3 Backrest can be used in conjunction with the Sedeo Lite seating system. Please refer to the J3 Back Owner’s Manual for fitting and adjustment. Zippie & Teens Seat Rev. A...
  • Page 11: Pre-Set Flip Back Armrests

    4.4 Pre-set Flip back armrests Fig. 4.9 Armrest height Major or minor adjustment it is a two-part process: PART 1 (Fig. 4.9) 1. Turn (A) in order to adjust (B). PART 2 (Fig. 4.10) 1. Loosen rear screw (A) by one turn then fully remove (B). 2.
  • Page 12: Teens Armrests

    4.5 Teens armrests Fig. 4.12 Armrest height Major or minor adjustment it is a two-part process: PART 1 (Fig. 4.12) 1. Turn (A) in order to adjust (B). PART 2 (Fig. 4.13) 1. Loosen (A) by one turn. 2. Adjust (B) to the desired position. 3. Tighten (A). Armrest pad depth (Fig.4.14) Fig.
  • Page 13: Side Guard

    4.6 Side guard Fig. 4.15 Straight Side guard height (Fig 4.15) 1. Unscrew (A). 2. Adjust (B) to the desired position. 3. Tighten (A). In-rig Side guard height (Fig 4.16) 1. Unscrew (A). 2. Adjust (B) to the desired position. M2.5 3. Tighten (A). M2.5 Fig. 4.16 Zippie & Teens Seat Rev. A...
  • Page 14: Pre-Set Center Mount Legrest

    4.7 Pre-set center mount legrest Fig. 4.17 Lower leg length (Fig 4.17) 1. Unscrew and remove (A). 2. Adjust (B) to the desired position. A L+R 3. Replace and tighten (A). 13mm 13mm NOTE / CAUTION! Ensure that there is sufficient free space under (B) for the wheelchair to drive over obstacles.
  • Page 15: Pre-Set Fixed Center Mount Legrest

    4.8 Pre-set Fixed center mount legrest Fig. 4.20 Lower leg length (Fig 4.20) 1. Unscrew and remove (A). 13mm 2. Adjust (B) to the desired position. 3. Replace and tighten (A). Ankle angle (Fig 4.21) 1. Flip up (A). 13mm 2. Turn (B) in order to adjust the ankle angle as desired. 3.
  • Page 16: Pre-Set Life Hangers

    4.9 Pre-set LIFE hangers Fig. 4.23 Lower leg length (Fig 4.23) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Footrest angle (Fig 4.24) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). NOTE / CAUTION! • Ensure that there is sufficient free space under (B) for the wheelchair to drive over obstacles.
  • Page 17: Pre-Set Life Hangers - High Mount

    4.10 Pre-set LIFE hangers - high mount Fig. 4.26 Lower leg length (Fig 4.26) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). NOTE / CAUTION! • Ensure that there is sufficient free space under (B) for the wheelchair to drive over obstacles. Footrest angle (Fig 4.27) 1.
  • Page 18: Pre-Set Uni Swing Away Legrest

    4.11 Pre-set UNI swing away legrest Fig. 4.29 11mm Lower leg length (Fig 4.29) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). 4.12 Pre-set swing away legrests - Zippie Salsa Fig. 4.30 10mm 10mm Lower leg length (Fig 4.30) 1. Unscrew and remove (A). 10mm 10mm 2.
  • Page 19: Pre-Set Legrest

    4.13 Pre-set legrest Fig. 4.32 Lower leg length (Fig 4.32) 1. Unscrew and remove (A). 2. Adjust (B) to the desired position. 3. Replace and tighten (A). NOTE / CAUTION! • Ensure that there is sufficient free space under (B) for the wheelchair to drive over obstacles. Footrest angle (Fig 4.33) 1.
  • Page 20: Pre-Set Swing Away Legrests Elr/Alr

    4.15 Pre-set swing away legrests ELR/ALR Fig. 4.36 Lower leg length (Fig 4.36) 1. Unscrew and remove (A). 2. Adjust (B) to the desired position. 3. Replace and tighten (A). NOTE / CAUTION! Ensure that there is sufficient free space under (B) for the wheelchair to drive over obstacles.
  • Page 21: Pre-Set Headrest

    4.16 Pre-set headrest Fig. 4.40 DANGER! / WARNING! • If a headrest is part of the options selected for the user/chair, never drive the chair without the headrest attached. • Never use the chair without a headrest if a person is transported with the chair in a vehicle.
  • Page 22: Pre-Set Fixed / Swing Away Controller Bracket - Teens

    4.17 Pre-set fixed / swing away controller bracket - Fig. 4.44 Teens Depth of the controller (Fig 4.44) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Height of the controller (Fig 4.45) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). 4.18 Pre-set fixed / swing away controller bracket - Zippie Fig. 4.45 Depth of the controller (Fig 4.46) 1. Loosen (A). 2.
  • Page 23: Pre-Set Swing Away Controller Capsulated

    4.19 Pre-set swing away controller capsulated Fig. 4.48 Depth of the controller (Fig 4.48) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Height of the controller (1) (Fig 4.49) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Height of the controller (2) (Fig 4.50) 1. Loosen (A). 2.
  • Page 24: Pre-Set Laterals

    4.20 Pre-set laterals Fig. 4.51 Laterals height (Fig 4.51) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Laterals depth (Fig 4.52) 1. Loosen (A). 2. Adjust (B) to the desired position. 3. Tighten (A). Laterals angle (Fig 4.53) 1. Loosen (A). 2. Adjust (B) to the desired position. Fig.
  • Page 25: Lap Strap / Seating Positioning Belt

    4.21 Lap strap / seating positioning belt Fig. 4.54 DANGER! / WARNING! • This product is only to be used to position a single person in a wheelchair. • Lap straps are not suitable for transit purposes, approved occupant restraint systems must be used. • Failure to heed these warnings may result in severe injury or death. •...
  • Page 26: Using The Seating System

    5.0 Using the seating system Fig. 5.1 5.1 Getting in and out of the wheelchair (Transferring) Sunrise Medical recommend that you consult your healthcare professional for assistance in developing your personal front or side transfer technique to best suit your needs and avoid any personal injury. DANGER! / WARNING To prevent a fall: •...
  • Page 27: Preparing For Side Transfer

    5.3 Preparing for side transfer Fig. 5.4 DANGER! / WARNING • Move your system as close as you can to the seat you are transferring to. If possible, use a transfer board. • Transfer as far back onto the seat surface as you can. This will reduce the risk that you will miss the seat or fall.
  • Page 28: Headrest

    5.4 Headrest Fig. 5.8 Removing/positioning the headrest (Fig 5.8) 1. Lift (A). 2. Slide (B) out of or into (C). 3. Push (A) down. 5.5 Swing-away controller bracket Fig. 5.9 Swing-away the controller bracket capsulated (Fig. 5.9). The joystick is mounted with a mechanism that allows the joystick to be locked in two forward positions. 1.
  • Page 29: Manual And Powered Seating Options

    6.0 Manual and Powered seating options Fig. 6.1 6.1 Manual seating options Zippie Manually elevating legrests knee angle (Fig 6.1) The angle of the comfort legrests can be adjusted independently of each other. 1. Lift leg to raise legrest (A). 2. Operate lever (B) to lower legrest. DANGER! / WARNING! • Risk of trapping fingers! When moving the legrest up or down, Fig.
  • Page 30: Powered) Seating Options

    6.2 (Powered) seating options Fig. 6.4 The wheelchair can be equipped by the following powered options to adjust your seating position. These options can be operated by the user without the use of tools. Powered adjustable seating options (Fig. 6.4 - Fig. 6.6) How to operate these powered seating options can be found in &...
  • Page 31: Reducing The Seating System Size For Transportation

    7.0 Reducing the seating system size for transportation Fig. 7.1 purposes DANGER! / WARNING! The wheelchair can be reduced in size for transportation without a passenger. Any components of the seating system that can be detached easily should be removed. Store away such components safely so that they can not cause injury or damage, or become damaged themselves.
  • Page 32: Swing Away Legrests

    7.3 Swing away legrests (Fig 7.5) Fig. 7.5 Removing a swing-away legrest 1. Loosen the calf band. 2. Push the catch (A) to the rear in order to unlock the legrest. 3. Swing the legrest outwards. 4. Remove the legrest (B) from its bracket by lifting. You should hear a click when replacing the legrest.
  • Page 33: Maintenance And Cleaning

    To do this, you must use a suitable disinfectant for rapid • If a broken or loose component is found, discontinue use alcohol-based disinfection of medical products and medical immediately and contact your authorised Sunrise Medical devices. supplier for replacement.
  • Page 34: General Cleaning Instructions

    8.4 General cleaning instructions: 8.6 Cleaning controls: Should the control of your wheelchair become soiled or dirty, NOTE / CAUTION! it can be wiped with a damp cloth with a dilute disinfectant • You should remove stains on your seat as soon as possible. until clean.
  • Page 35: Disposal

    9.0 Disposal The symbols below mean that in accordance with local laws and regulations your product should be disposed of separately from household waste. When this product reaches the end of its life, take it to the local collection point designated by local authorities. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects the environment.
  • Page 36: Technical Specifications

    10.0 Technical specifications: 10.1 Applicable norms / standards This product complies with the regulations and guidelines for medical aids and carries a CE symbol. The product meets the requirements and standards below. These are checked by independent institutions. Medical Device Regulation (EU) Applicable as mentioned in table 1 2017/745 EN 12182 (2012) Class B...
  • Page 37: Technical Specifications

    10.2 Technical specifications: Zippie/Teens seating system Metric system values Imperial system values & alternative Minimum Maximum Minimum Maximum Seat angle adjustment Powered tilt with COG adjustment optional 0° - 30° -5° - 25° Powered tilt with COG adjustment optional -5° - 25° 0° - 30° Powered tilt with COG adjustment optional 0°...
  • Page 38 Metric system values Imperial system values & alternative Minimum Maximum Minimum Maximum Swing away LIFE high mount legrests Lower leg length (from seatplate) 160 mm 480 mm 6.3" 18.9" Knee angle 60° - 90° 60° - 90° Ankle angle +50° - -50° +50°...
  • Page 39: Guarantee / Warranty

    Sunrise Medical“ THIS GUARANTEE DOES NOT AFFECT YOUR LEGAL RIGHTS IN ANY WAY. * Means the Sunrise Medical facility from which the product Sunrise Medical* provides a guarantee, as set out in the was purchased.
  • Page 40 F: +31 (0)30 – 60 55 880 Sunrise Medical Aps E: info@sunrisemedical.nl Mårkærvej 5-9 www.SunriseMedical.nl 2630 Taastrup Denmark Sunrise Medical HCM B.V. +45 70 22 43 49 Vossenbeemd 104 info@sunrisemedical.dk 5705 CL Helmond Sunrisemedical.dk The Netherlands T: +31 (0)492 593 888 Sunrise Medical Australia E: customerservice@sunrisemedical.nl...
