Aspire
M11, F11
User Instruction Manual & Warranty
SUPPLIER: THIS MANUAL MUST BE GIVEN TO THE RIDER OF THIS WHEELCHAIR.
RIDER: BEFORE USING THIS WHEELCHAIR READ THIS ENTIRE MANUAL AND SAVE FOR FUTURE REFERENCE.
Aspire
M11, F11
Mode d'emploi et garantie
FOURNISSEUR: CE MANUEL DOIT ÊTRE REMIS À L'UTILISATEUR / UTILISATRICE DE CE FAUTEUIL ROULANT.
UTILISATEUR / UTILISATRICE : AVANT D'UTILISER CE FAUTEUIL ROULANT, LISEZ ENTIÈREMENT CE MANUEL ET CON-
SERVEZ LE POUR LE CONSULTER ULTÉRIEUREMENT.
Aspire
M11, F11
Manual de Instrucciones y Garantía para el Usuario
DISTRIBUIDOR: ESTE MANUAL DEBE SER ENTREGADO AL PASAJERO DE ESTA SILLA DE RUEDAS.
PASAJERO: ANTES DE USAR ESTA SILLA DE RUEDAS, LEA ESTE MANUAL EN SU TOTALIDAD Y GUÁRDELO
PARA FUTURA REFERENCIA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quickie Aspire M11 and is the answer not in the manual?

Questions and answers

Paul Henry Minar Jr
May 16, 2025

parts breakdown

0
1 comments:
Mr. Anderson
May 22, 2025

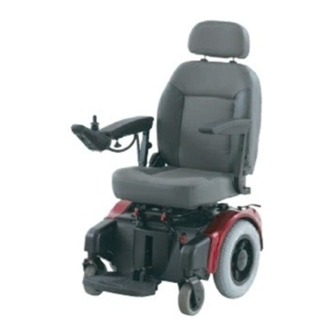

The parts breakdown for the Sunrise Medical Aspire M11 includes:

1. Flip-back, height-adjustable armrest
2. Integral controller joystick (programmable)
3. Contour seat (Contour Flat Pan Seat not pictured)
4. Front caster – 6" full
5. Rear stabilizing caster – 5"
6. Single plate foot platform
7. Semi-recline seat
8. Battery deck lid (not shown)
9. Drive wheels – 10" for M11
10. Freewheel release (not shown)
11. Front caster fork
12. Rear caster fork (not shown)
13. Shroud
14. Readi-align caster assist (optional, not shown)

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Sunrise Medical Quickie Aspire M11

Summary of Contents for Sunrise Medical Quickie Aspire M11

  • Page 1 Aspire M11, F11 User Instruction Manual & Warranty SUPPLIER: THIS MANUAL MUST BE GIVEN TO THE RIDER OF THIS WHEELCHAIR. RIDER: BEFORE USING THIS WHEELCHAIR READ THIS ENTIRE MANUAL AND SAVE FOR FUTURE REFERENCE. Aspire M11, F11 Mode d’emploi et garantie FOURNISSEUR: CE MANUEL DOIT ÊTRE REMIS À...

  • Page 2: Introduction

    Sunrise supplier. Please feel free to write or call us at the address and telephone number below: SUNRISE MEDICAL Customer Service Department 7477 East Dry Creek Parkway...

  • Page 3: Table Of Contents

    I I . T a b l e o f C o n t e n t s E n g l i s h II. TABLE OF CONTENTS I. INTRODUCTION ................2 II. TABLE OF CONTENTS ............... 3 III. YOUR CHAIR AND ITS PARTS............5 IV.
  • Page 4 I I . T a b l e o f C o n t e n t s E n g l i s h J. Seating Systems................17 K.Upholstery Fabric ................. 18 L. Suspension.................. 18 M.Wiring ..................18 VIII. TIPS FOR ATTENDANTS ..............19 A.To Climb a Curb or Single Step ............

  • Page 5: Your Chair And Its Parts

    I I I . Y o u r C h a i r a n d I t s P a r t s E n g l i s h III. YOUR CHAIR AND ITS PARTS 1. Flip-back, height-adjustable armrest 2.

  • Page 6: Notice- Read Before Use

    I V . N o t i c e – R e a d B e f o r e U s e E n g l i s h IV. NOTICE– READ BEFORE USE A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS Sunrise provides a choice of many power wheelchair styles, sizes and adjustments to meet the needs of the rider.

  • Page 7: Emi (Electromagnetic Interference)

    V . E M I ( E l e c t r o m a g n e t i c I n t e r f e r e n c e ) E n g l i s h V.

  • Page 8: D.distance From The Source

    3. The configurations tested and found to be immune to at least 20 V/m are: a. Quickie Aspire M11 power wheelchair with a right-hand mounted Penny & Giles VSI integral controller, highback seat, flip-back armrests, solid flip-up footplate and U1 gel cell batteries.

  • Page 9: General Warnings

    V I . G e n e r a l W a r n i n g s E n g l i s h VI. GENERAL WARNINGS Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control may occur and cause severe injury to you or others.

  • Page 10: Emi

    V I . G e n e r a l W a r n i n g s E n g l i s h E. EMI Read Section V to learn about EMI. To reduce the risk of unintended brake release or chair movement: 1.

  • Page 11: Terrain

    V I . G e n e r a l W a r n i n g s E n g l i s h 2. Proceed slowly and use extra care if you must operate your chair on a wet or slick surface.

  • Page 12: N.transfers

    V I . G e n e r a l W a r n i n g s E n g l i s h To Reduce The Risk Of A Fall Or Tip-Over: 1. Consult your supplier for information on modifications authorized by Sunrise before you modify or adjust this chair.

  • Page 13: Dressing Or Changing Clothes

    V I . G e n e r a l W a r n i n g s E n g l i s h 3. Turn off all power to your chair. If you fail to do so, you may touch the joystick and cause your chair to move when you do not expect it.

  • Page 14: T To Reduce The Risk Of Falls, Tip-Over Or Loss Of Control

    V I . G e n e r a l W a r n i n g s E n g l i s h T. TO REDUCE THE RISK OF A FALL, TIP-OVER OR LOSS OF CONTROL 1. Never use your chair on a slope unless you are sure you can do so without losing traction.

  • Page 15: Stairs

    V I . G e n e r a l W a r n i n g s E n g l i s h 2. To prevent a fall or tip-over, use wheelchair access ramps or have someone help you. 3.

  • Page 16: Warnings: Components & Options

    V I I . W a r n i n g s : C o m p o n e n t s & O p t i o n s E n g l i s h VII. WARNINGS: COMPONENTS & OPTIONS Note: If you use parts or make changes not authorized by Sunrise it may create a safety hazard and will void the Warranty.

  • Page 17: Motor Locks

    V I I . W a r n i n g s : C o m p o n e n t s & O p t i o n s E n g l i s h F. MOTOR LOCKS 1.

  • Page 18: K.upholstery Fabric

    V I I . W a r n i n g s : C o m p o n e n t s & O p t i o n s E n g l i s h K. UPHOLSTERY FABRIC 1.

  • Page 19: Tips For Attendants

    V I I I . T i p s F o r A t t e n d a n t s E n g l i s h VIII. TIPS FOR ATTENDANTS Persons who help a rider do one of the following tasks should review and heed the warnings “Notice to Attendants”...

  • Page 20: Set Up, Adjustment & Use

    I X . S e t - U p , A d j u s t m e n t & U s e E n g l i s h IX. SET-UP, ADJUSTMENT & USE NOTES: 1. Work Surface For Set-Up: Use a flat surface, such as a table, to assemble, adjust and check your chair.

  • Page 21: A.battery Removal

    I X . S e t - U p , A d j u s t m e n t & U s e E n g l i s h A. BATTERY REMOVAL (Figures 1, 2 & 3) To remove the batteries for transporting or servicing: 1.

  • Page 22: Hanger Adapter (Optional)

    I X . S e t - U p , A d j u s t m e n t & U s e E n g l i s h C. HANGER ADAPTER (OPTIONAL) (Figure 7) 1. Insert hanger adapter into seat frame interface. 2.

  • Page 23: G.armrests Adjustment

    I X . S e t - U p , A d j u s t m e n t & U s e E n g l i s h G. ARMRESTS ADJUSTMENT 1. Width Adjustment (Figure 12) a. Insert armrest support inside of 1" square tube (B) located on back of the seat. b.

  • Page 24: Seat Removal

    I X . S e t - U p , A d j u s t m e n t & U s e E n g l i s h J. SEAT REMOVAL 1. Remove Seat (Figures 17 & 18) a.

  • Page 25: Operating Guide

    X . O p e r a t i n g G u i d e E n g l i s h X. OPERATING GUIDE A. PERFORMANCE CONTROL SETTINGS 1. It is vital to match control settings to your level of function and ability. 2.

  • Page 26: D.circuit Breakers

    X . O p e r a t i n g G u i d e E n g l i s h D. CIRCUIT BREAKERS Circuit 1. Notes: Breaker Your Quickie Aspire has a circuit breaker protruding through the shroud cover at the right rear of the chair.

  • Page 27: Motor Locks

    X . O p e r a t i n g G u i d e E n g l i s h F. MOTOR LOCKS Disconnect the motor locks when you need to manually push the chair. (For example, in an emergency, or if batteries fail). Do not disengage motor locks unless power to the chair is off.

  • Page 28: Batteries

    X I . B a t t e r i e s E n g l i s h XI. BATTERIES A. INTRODUCTION 1. Notes: • Batteries supply the power for your chair. They contain a finite amount of energy and have limits on how long they can store and supply energy.

  • Page 29: Acid Burns

    If acid contacts your eyes, immediately flood eyes with cold running water for at least 15 minutes. Seek medical attention immediately. Sunrise Medical does not recommend the use of wet cell batteries on this chair. D. CONNECTING BATTERIES IN BATTERY WELL Each battery weighs up to 55 lbs.

  • Page 30: Charging Batteries

    X I . B a t t e r i e s E n g l i s h E. CHARGING BATTERIES To avoid the risk of severe injury or death from electrical shock, fire or explosion while charging: 1. Never connect charger to a 240 volt source. The main input voltage is 110 volts. 2.

  • Page 31: Maintenance

    X I I . M a i n t e n a n c e E n g l i s h XII. MAINTENANCE A. NOTES 1. Proper maintenance will improve performance and extend the useful life of your chair. 2.

  • Page 32: Pneumatic Tires

    X I I . M a i n t e n a n c e E n g l i s h 3. Corrosion: Check battery terminals often for corrosion. a. If corrosion is present, use a wire brush to clean the terminals. NOTE–...

  • Page 33: H.ordering Parts

    X I I . M a i n t e n a n c e E n g l i s h H. ORDERING PARTS When you order parts, provide the following: 1. Model of chair 2. Serial number of chair 3.

  • Page 34: Wiring Diagram

    X I I I . W i r i n g D i a g r a m E n g l i s h XIII. WIRING DIAGRAM WIRING DIAGRAM DETAIL (INTEGRATED CONTROL SYSTEM) 930756 Rev. B...

  • Page 35: Sunrise Limited Warranty

    XIV. SUNRISE LIMITED WARRANTY QUICKIE ASPIRE M11, F11 1. LIMITED WARRANTY Sunrise Medical warrants components of this wheelchair against defects in materials and workmanship from the original date of purchase from Sunrise Medical as follows: Silver Warranty Package The following chairs are covered under the Silver Warranty Package: Aspire M11 & F11.
