HD428 QUICK START GUIDE

ABOUT THIS GUIDE

This guide is a quick reference for users to install and operate HD428 Night
Vision HD Indoor/Outdoor Bullet Cameras. It provides only basic information
regarding installation and operation of your camera. For further details,
please refer to the HD428 User Manual.

CONTENTS OF CAMERA BOX

Before proceeding, please check to confirm that the box contains the items
listed here. If any item is missing or has defects, DO NOT install or operate
the product and contact AvertX for assistance.

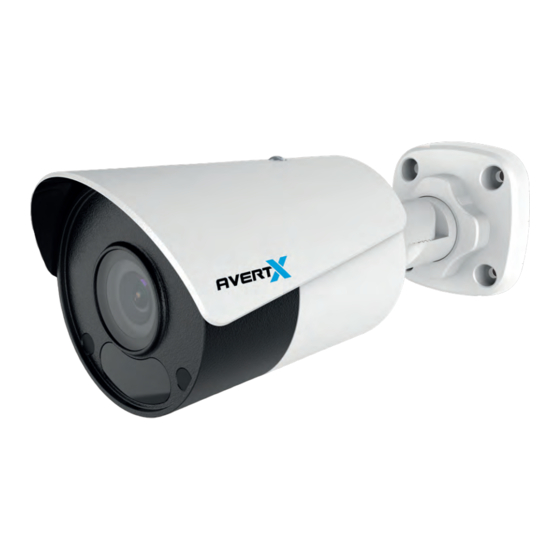

HD428 Bullet Camera
Waterproof Cable
Anchors
Screws
Connector
Documents
4K MINI IP BULLET
INDOOR/OUTDOOR
WITH NIGHT VISION

INSTALLATION

Align Holes
Adjust Aim
The HD428 camera can be installed directly
onto a wall or ceiling. Be sure that the structure
is strong enough to support the camera.
1. Remove the HD428 camera from the
packaging.
2. Connect the camera cable from the
ceiling or wall to the dongle on the
camera. If using the waterproof cable
connector, attach it now. See instructions
on reverse.
3. Loosen the locknut and/or adjustment
screws on the camera bracket. Aim the
camera down to access screw holes
4. Affix the camera base to the ceiling
or wall with the included self-tapping
screws. When mounting on an outdoor
wall, the cable notch should be
positioned downward.
5. Adjust the position of your camera. Be
careful not to damage the cable when
moving the camera.
6. Tighten the locknut and screws to secure
your camera.
Note:
The HD428 mini bullet camera is pre-
focused and factory sealed. There is no need
to open the camera housing.
If mounting outside, seal the opening at the
wall and the base of the camera with silicone
caulking.
Improper installation may cause damage to
your camera and void the warranty.
36772AA
