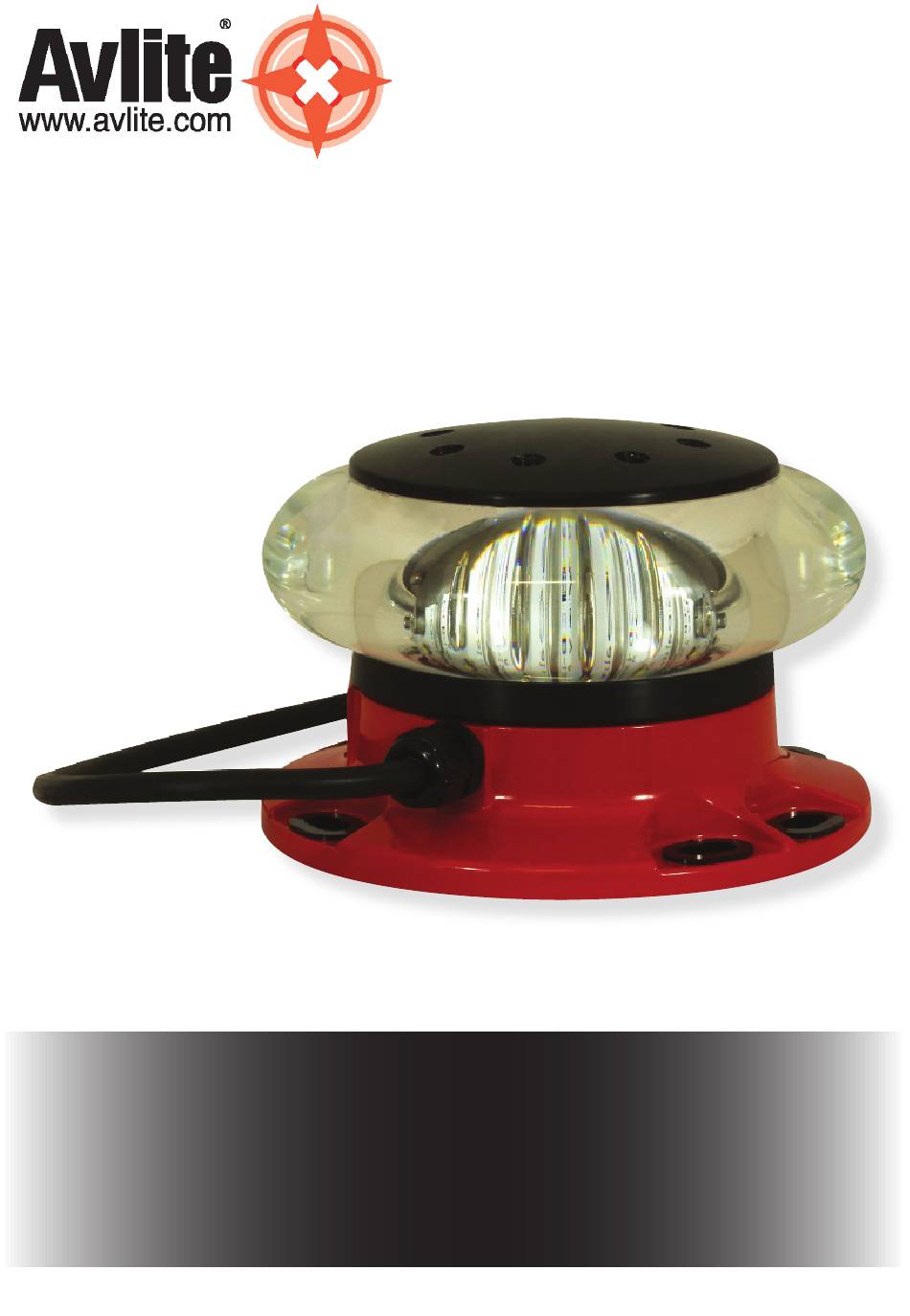

- Page 1 AV-OL-IMB & AV-OL-IMC ICAO Medium Intensity Type B or C Obstruction Light Universal DC & Universal AC Models Installation & Service Manual Version 2.1...
- Page 2 Version No. Description Date Approved Manual launch August 2014 S. Turner Update February 2014 W. Evans Type C added November 2015 W. Evans Flash Codes updated January 2020 W. Evans...
-
Page 3: Table Of Contents
Intensity Setting ..............Page 12 Alarm Relay Output ............Page 12 Optional IR Remote Control ................Page 13 Avlite IR Controller / Universal Remote Compatibility ......Page 13 IR Controller Functions................Page 14 Test Mode / Configure ..............Page 14 Normal Operation ............... Page 14 Read ................... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. The company has superior in-house lens manufacturing capabilities to support outstanding optical performance. -
Page 5: Av-Ol-Imb & Av-Ol-Imc Models

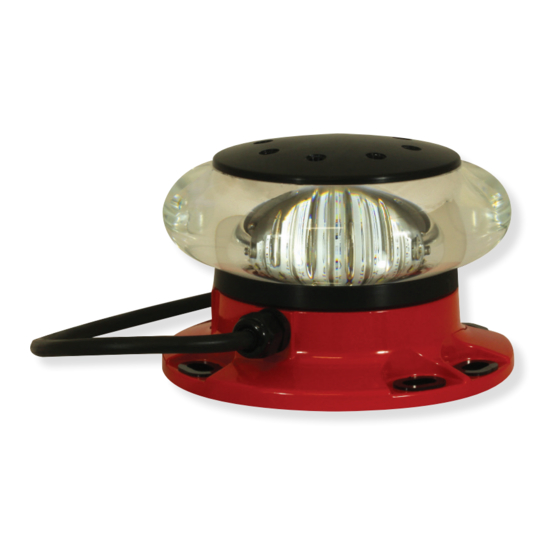

AV-OL-IMB and AV-OL-IMC Medium Intensity Obstruction Light This Avlite light fixture is a flashing, medium intensity LED obstruction light designed to comply with ICAO MIOL Type B or Type C requirements. The model can be used for marking obstacles from 45 metres above ground, such as telecommunication towers, wind turbines, buildings and other tall structures. - Page 6 ICAO Medium Intensity Type B or Type C Obstruction Light Universal AC & Universal DC Models Impact modified UV-stabilised acrylic lens Multiple LED Optic Automatic night operation 7-stage powder coated aluminium base 200mm bolt pattern for ease of installation Latest products and information available at www.avlite.com...
- Page 7 5 year warranty 5 year warranty Options Available • Variety of solar/battery • GSM Cell-Phone Monitoring configurations • GPS Synchronisation • GSM Cell-Phone Monitoring • RS422/485 communications port • GPS Synchronisation • RS422/485 communications port Latest products and information available at www.avlite.com...
-
Page 8: Safety Information
• Do not stare at the LED or shine the LED into your eyes or those of another person. • Do dispose of the product according to the local laws and regulations for your region, for example, at a recycling center that accepts electronic devices. Latest products and information available at www.avlite.com... -
Page 9: Unpacking, Installation, Wiring & Setup
Universal AC & Universal DC Models Unpacking, Installation, Wiring & Setup Unpacking Unpack all hardware and inspect for damage. If there is any damage, please contact your Avlite Office. Retain original packing material for possible future use in shipping. Installation & wiring Before proceding with installation or service, make sure the following conditions are met: •... - Page 10 Black Australia/ Europe/ UK USA/ Canada Neutral Blue White Earth Green/Yellow Green Active/Live Brown Black Neutral Blue White Earth Green/Yellow Green Cable: 3-core Internal: DC Wiring Configuration Positive Brown Negative Blue Cable: 2-core Latest products and information available at www.avlite.com...
- Page 11 ICAO Medium Intensity Type B or Type C Obstruction Light Universal AC & Universal DC Models DC Wiring Configuration DC WIRING CONFIGURATION Positive Brown External: Negative Blue Positive Brown Negative Blue Cable: 2-core Internal: Latest products and information available at www.avlite.com...
-
Page 12: Operation & Setup
Relay inverse operation (inverse functionality of the normal operation, used to conserve power) • Relay disable (in case the relay is not required, used to conserve power) NOTE: The alarm relay is intended for low voltage (SELV) connection only. NOT FOR MAINS CONNECTION Latest products and information available at www.avlite.com... -
Page 13: Optional Ir Remote Control
Avlite IR Controller / Universal Remote Compatibility If you lose your Avlite IR Controller, the following Universal Remote Controller has been tested for compatibility: RCA Type RCR312WR programmed for Phillips TV Type Code 10054... -
Page 14: Ir Controller Functions
Levels are in the range of 1 to 9. The light flashes the Operational Mode. Modes are as follows: 1 flash = Always-On 2 flashes = Standby 3 flashes = Dusk-to-Dawn Latest products and information available at www.avlite.com... -
Page 15: Operational Mode
This function reads the battery status. The response from the light is: 4 flashes = High Voltage 3 flashes = Good Voltage 2 flashes = Low Voltage 1 flashes = Cutoff Voltage or below Example Key sequence: Latest products and information available at www.avlite.com... -
Page 16: Lux
Example key sequence: (Set the intensity level to 5 – undefined.) The light flashes 5 times for 1 second. When a key sequence has been entered successfully the light will respond acknowledgement with a 1 second flash. Latest products and information available at www.avlite.com... -
Page 17: Optional Gps Synchronisation
Universal AC & Universal DC Models Optional GPS Synchronisation Avlite has utilized the latest advancements in GPS technology to develop an internal synchronisation system that can be incorporated into the lights. Using overhead satellites, multiple obstruction lights set to the same flash pattern will flash in unison. -
Page 18: Optional Gsm Monitoring & Control
Universal AC & Universal DC Models Optional GSM Monitoring & Control The Avlite obstruction light is available with GSM Cell-Phone Monitoring, enabling operators to remotely monitor the status of their installation. The system can also be configured to send out SMS text messages or e-mail alerts to designated operators should alarm conditions be triggered, such as low voltage or light failure. -
Page 19: Maintenance & Servicing
Universal AC & Universal DC Models Maintenance & Servicing Designed to be maintenance free the Obstruction Lights requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. -
Page 20: Lantern Status
Universal AC & Universal DC Models Lantern Status The AV-OL-IMB-12/UM lanterns are fitted with two status LEDs and provide the operator with an indication of the lantern status. There is one red and one yellow status LED. The red status LED is used to indicate the health of the Lantern’s power system. -
Page 21: Certification
ICAO Medium Intensity Type B or Type C Obstruction Light Universal AC & Universal DC Models Certification Compliant to: ICAO Annex 14 Volume 1, ‘Aerodrome Design and Operations’, Sixth edition, July 2013, table 6.3, Medium Intensity Type B or C Obstruction Light Latest products and information available at www.avlite.com... -
Page 22: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 23 12. There are no representations or warranties of any kind by Avlite or any other person who is an agent, employee, or other representative or affiliate of Avlite, express or implied, with respect to condition of performance of any product, their merchantability, or fitness for a particular purpose, or with respect to any other matter relating to any products.
- Page 24 • Helipad lighting • Obstruction lighting Portable Airfield Lighting For a complete list of product compliances System including ICAO & FAA, please contact Avlite today AUSTRALIA t: +61 (0)3 5977 6128 t: +1 (603) 737 1310 UNITED KINGDOM t: +44 (0) 1502 588026 A subsidiary of Sealite Pty Ltd www.sealite.com...
