Avlite AV-09-4WL Installation & Service Manual

Solar Powered Windsock Light Kit
AV-09-4WL
Features
• Integrated solar/battery system
• 140watt solar module
(standard)
• 2 x 55Ah SLA batteries
(standard)
Typical Applications
• Lighting kit to suit existing
windsock assemblies
Solar module/battery
configuration of
AV-09-4WL Windsock Light
Avlite Systems
AUSTRALIA
t: +61 (0)3 5977 6128
AV-09 lights with 3watt
ultra-high intensity LED -
no globes to change!
Solar module mounted
for maximum solar
collection

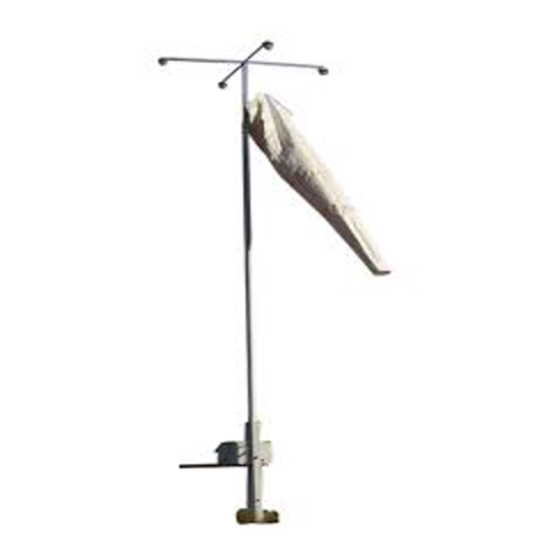

Avlite Systems' AV-09-4WL Solar Windsock Light Kit provides users with a
complete, reliable and low maintenance solution to windsock illumination.
This complete windsock lighting kit incorporates four (4) AV-09 lights mounted onto 12mm
powder-coated square tubing arms, a 140watt multicrystalline solar module and mounting
bracket, and 110Ah SLA battery (2 X 55Ah) housed in a rotationally moulded weatherproof
battery box with galvanized lockable cage for improved security.
Each AV-09 light incorporates a 3watt ultra-high intensity LED as a light source offering up
to 100,000 hours of service - no need to change any globes! With low power consumption
and external sun-switch for automatic night activation, the AV-09-4WL is a fantastic
alternative to traditional hard-wired or fluorescent products.
The AV-09-4WL can be installed immediately and requires no costly underground wiring.
The complete kit comes packaged in a 155x69x76cm pallet for ease of shipping. Other
configurations are available on request.
w: www.avlite.com
USA
e: info@avlite.com
t: +1 (603) 737 1310
Flexible installation with
adjustable 2-piece
clamp
(50-150mm pipe)
Weatherproof battery
box and lockable
galvanised cage for
improved security
Windsock & pole
not included
