Installation
1. Remove the blank panel covering the slot in which the module
will be installed. All other slots in the 7C03 must remain
covered to ensure proper airflow and cooling.
2. Slide the module into the slot. Make sure the printed circuit
board (PCB) is between the card guides, slides in straight, and
engages the backplane connectors properly.
3. Use a slotted screwdriver to tighten the module's front panel
screws.
MAC ADR

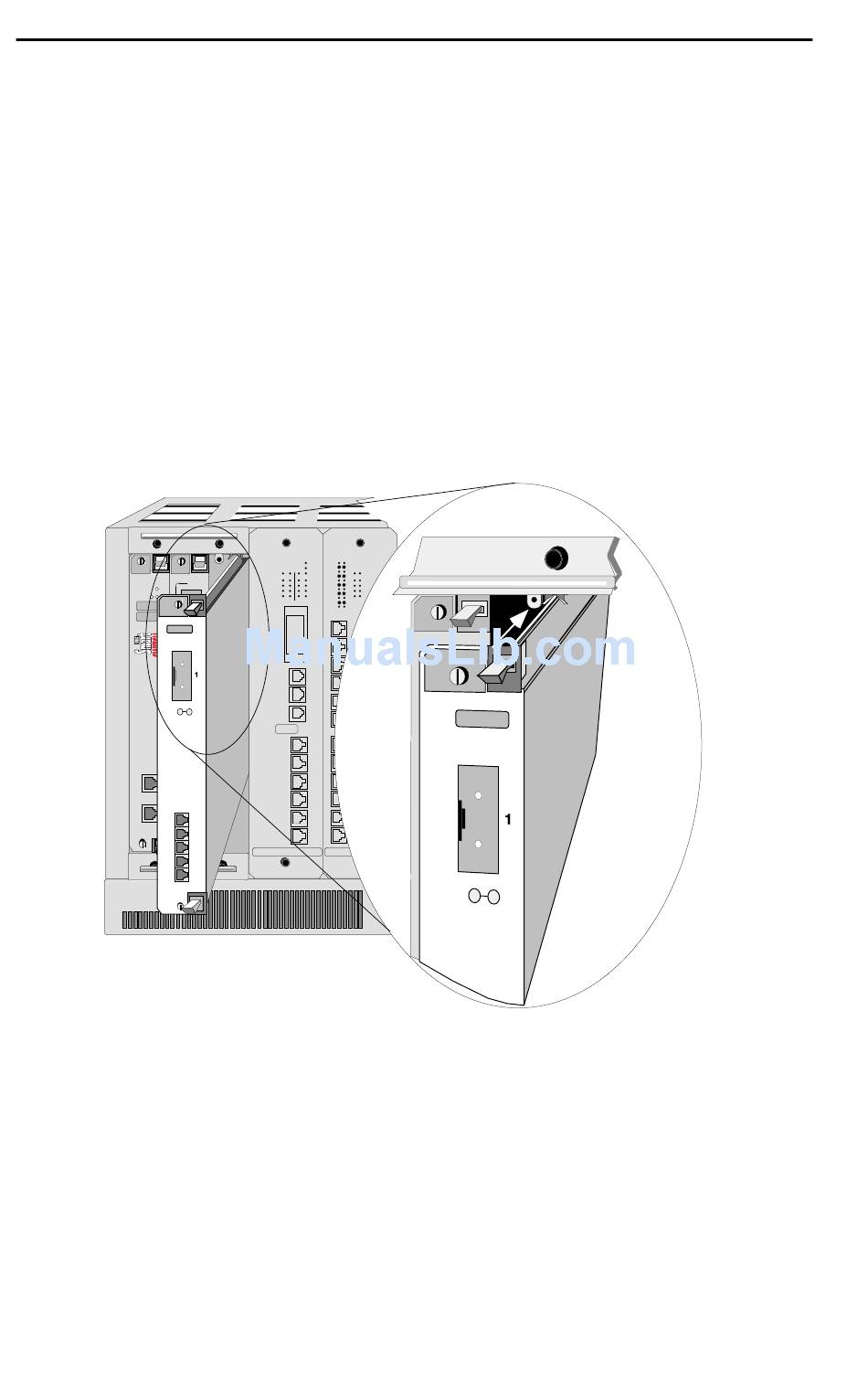

Figure 3-3. Installing the 7H02-06 Module in the
3-4
TPRMIM-20 TPRMIM-20
SP
7C03 MMAC SmartSwitch
SN
