Installation

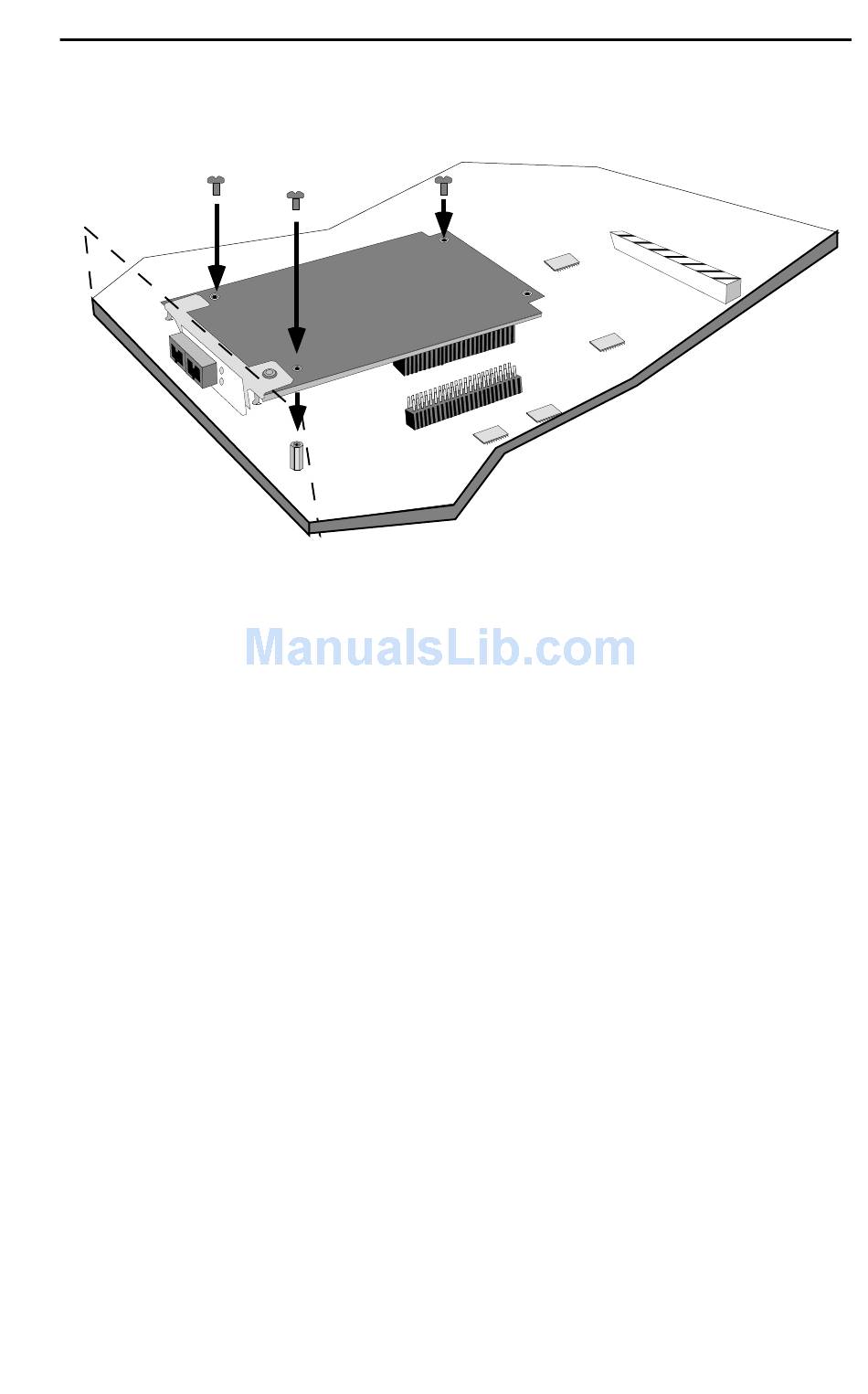

Figure 3-2. Installing an FEPIM

3.3 INSTALLING/REMOVING THE 7H02-06 MODULE

The 7H02-06 Module is installed in: the 7C03 MMAC SmartSwitch,

the 7C04 Workgroup SmartSwitch or the 7C04-R Workgroup

SmartSwitch by using the following steps and referring to the

appropriate ﬁgure.

3.3.1 Installing the 7H02-06 Module in a 7C03 MMAC

SmartSwitch

7H02-06

The

Module cannot be installed in the left most slot of the

7C03 MMAC SmartSwitch. That slot is reserved for the 7X00

SmartSwitch Controller Module.

Note: Before installing the 7H02-06 Module, attach the wrist strap

included with the module (instructions are printed on the packet).

7H02-06

To install the

Module in a 7C03 MMAC SmartSwitch,

follow the listed steps and refer to Figure 3-3.

3-3
