- Page 1 PH-74 Bone Scintigraphy Quality Assurance Phantom ISMM Type （Si㎡ BONE Phantom） Instruction Manual Contents ● Before beginning Product contents and warning・・・・・・・・・ Phantom's specs・・・・・・・・・・・・・ Preparation ● How to set up・・・・・・・・・・・...
-
Page 2: Before Beginning

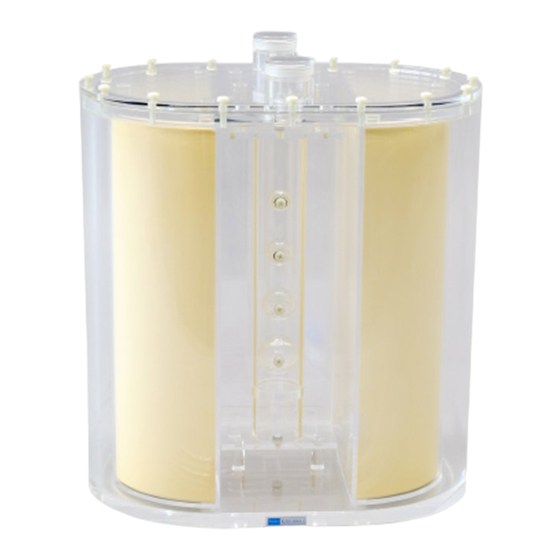

Before beginning Product contents and warning Product contents Before your first use, ensure that your product includes all the components listed below. Phantom body（Including left Petroleum jelly １ １ and right lung fields and bones） e Needle １ Screw driver １... - Page 3 Before beginning Phantom's specs Phantom's specs ( External dimensions, material ) W310×D210×H355 mm（Including protrusions） Outer container/vertebral body: Acrylic resin Inner lung field: tough lung（PVA acetal product） Drawing ２...
-
Page 4: How To Set Up
Before beginning How to set up Detachment of the lung field ○ ○ ○ Align the convex part at the bottom of the lung field with the concave part at the bottom of the container. ※It can be used as a chest if the lung field is attached, and as an abdomen if it is removed. - Page 5 Before beginning How to set up Assembling the spine See the marks and align them ○ ○ ○ ○ ○ Align the convex and concave parts ４...
- Page 6 Before beginning How to set up Lid installation See the marks and align them ○ ○ ○ ５...
- Page 8 2021.04...
