- Page 1 PH-71 Knee Ligament Phantom Instruction Manual Contents Please read General Information · ·········· P.1 ·············P.2 Before use Specification ·············· P.3-4 Images X-ray Images ·················· P.5...
- Page 3 Please read General Information Please read Thank you for purchasing PH-71 Knee Ligament Phantom. This is the phantom for training of X- ray training in knee ligaments. Please read Do not use this phantom outside of its original purposes. Kyoto Kagaku shall not be held any responsible for the damages or accidents caused by way of use not mentioned in this manual.

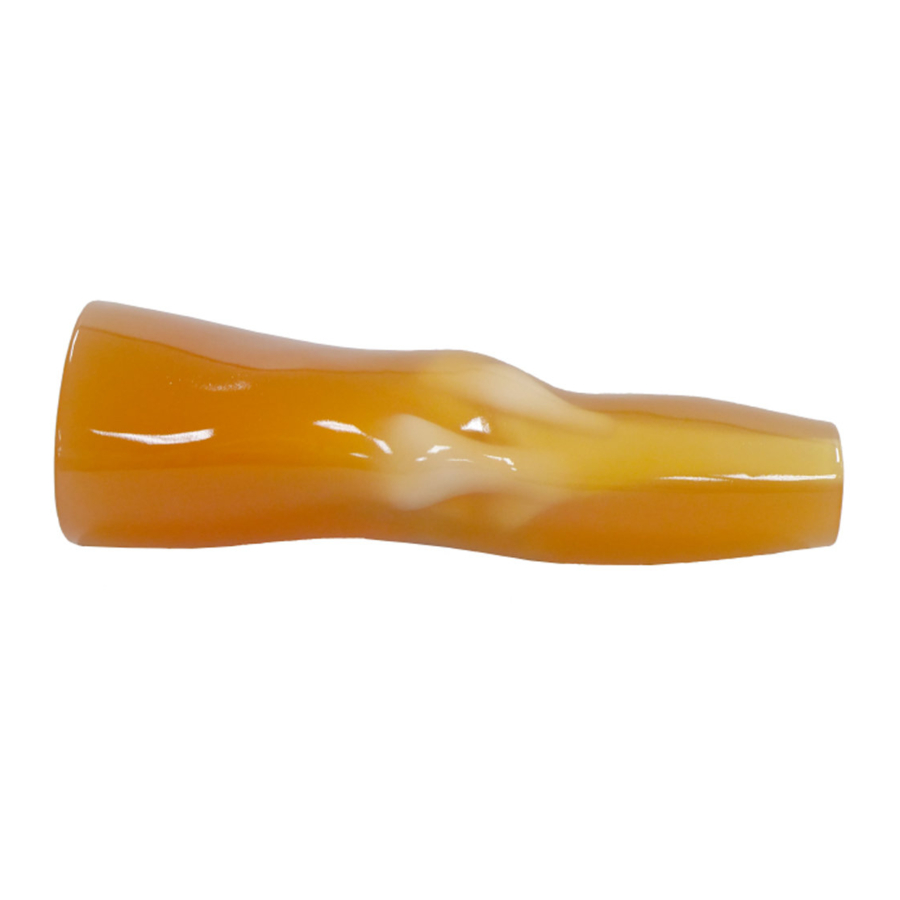

- Page 4 Before use Before use Set includes Before your first use, please ensure that you have all components listed below. a. Knee ligament phantom ･･････1 b. Storage Case････････････････1 c. Instruction manual･･････････1...
- Page 5 Specification Before use Shape and mateial Shape Material 1) Bone：Epoxy resin (Specific gravity 1.31) 2) Soft resin : Polyurethane resin （Specific gravity 1.06） 3） HU Value Ligament Ulnar Collateral Ligament Fibular Collateral Ligament ...
- Page 6 Before use Specification Anatomies Cartilage Ulnar collateral ligament Meniscus Cartilage Patella ligament Femur bone Anterior cruciate ligament Posterior cruciate ligament Fibular collateral ligament Ulnar collateral ligament Tibia Fibula...
- Page 7 Images X-ray images X-ray Images Image samples...
- Page 8 Don’t mark on the phantom with pen or leave printed materials contacted on its surface. Caution Ink marks on the phantom will be irremovable. ・If you have any questions, please contact the dealer you purchased the product or Kyoto Kagaku Co., Ltd. below. ■ ■...
