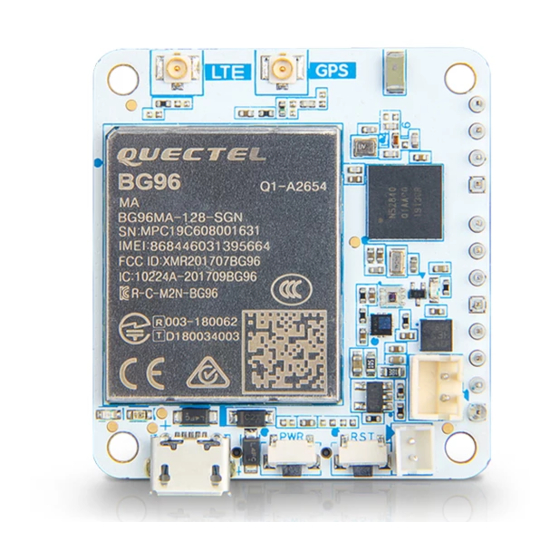

BG96
AT Commands Manual
LTE Module Series
Rev. BG96_NIDD_AT_Commands_Manual_V1.0
Date: 2018-05-25
Status: Released
NIDD
www.quectel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG96 NIDD and is the answer not in the manual?

Questions and answers

Related Manuals for Quectel BG96 NIDD

Summary of Contents for Quectel BG96 NIDD

  • Page 1 BG96 NIDD AT Commands Manual LTE Module Series Rev. BG96_NIDD_AT_Commands_Manual_V1.0 Date: 2018-05-25 Status: Released www.quectel.com...
  • Page 2 QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION.

  • Page 3: About The Document

    LTE Module Series BG96 NIDD Commands Manual About the Document History Revision Date Author Description 2018-05-25 Lane HAO Initial BG96_NIDD_AT_Commands_Manual 2 / 13...

  • Page 4: Table Of Contents

    LTE Module Series BG96 NIDD Commands Manual Contents About the Document ..........................2 Contents ..............................3 Table Index ..............................4 Introduction ............................5 Description of AT Commands ......................6 2.1. Description of NIDD Related AT Commands ................6 2.1.1. AT+QCFGEXT="pdp_type" Modify the Parameters of Specified PDP Context ... 6 2.1.2.
  • Page 5 LTE Module Series BG96 NIDD Commands Manual Table Index TABLE 1: SUMMARY OF <ERR> CODE ......................12 TABLE 2: RELATED DOCUMENTS ........................13 TABLE 3: TERMS AND ABBREVIATIONS ......................13 BG96_NIDD_AT_Commands_Manual 4 / 13...

  • Page 6: Introduction

    Non-IP). NIDD is only applicable for LTE Cat NB1 RAT. Non-IP data calls are supported for both tethered and embedded use cases. This document mainly introduces how to use the NIDD function of Quectel BG96 module through AT commands. BG96_NIDD_AT_Commands_Manual...

  • Page 7: Description Of At Commands

    LTE Module Series BG96 NIDD Commands Manual Description of AT Commands 2.1. Description of NIDD Related AT Commands 2.1.1. AT+QCFGEXT="pdp_type" Modify the Parameters of Specified PDP Context AT+QCFGEXT="pdp_type" Modify the Parameters of Specified PDP Context Write Command Response Query the current configuration: +QCFGEXT: "pdp_type",<cid>,<type>,<apn>...

  • Page 8: At+Qcfgext="Nipdcfg" Configure Parameters For Nidd Connection

    LTE Module Series BG96 NIDD Commands Manual NOTE The command will take effect after reboot, or by executing AT+CFUN=0 and AT+CFUN=1 consecutively. 2.1.2. AT+QCFGEXT="nipdcfg" Configure Parameters for NIDD Connection AT+QCFGEXT="nipdcfg" Configure Parameters for NIDD Connection Write Command Response Query the current configuration for NIDD +QCFGEXT: "nipdcfg",<type>,<apn>...

  • Page 9: At+Qcfgext="Nipds" Send Mo Non-Ip Data

    LTE Module Series BG96 NIDD Commands Manual If there is any other error, response: ERROR Parameter <mode> Integer type. Close the NIDD connection. Open the NIDD connection. <timeout> Integer type. The range is 30-90 and the default value is 30. Unit: second.

  • Page 10: At+Qcfgext="Nipdr" Retrieve Mt Non-Ip Data

    LTE Module Series BG96 NIDD Commands Manual 2.1.5. AT+QCFGEXT="nipdr" Retrieve MT Non-IP Data AT+QCFGEXT="nipdr" Retrieve MT Non-IP Data Write Command Response AT+QCFGEXT="nipdr"[,<read_length If the connection has received data, response: >] +QCFGEXT: "nipdr",<read_actual_length>,<data> If there is no data that can be retrieved, response: +QCFGEXT: "nipdr",0...

  • Page 11: Description Of Nidd Related Urcs

    LTE Module Series BG96 NIDD Commands Manual details. 2.2. Description of NIDD Related URCs 2.2.1. URC of Incoming Data After receiving MT Non-IP data, the module will report URC as +QIND: "nipd","recv" to notify the host. Then host can retrieve data via AT+QCFGEXT="nipdr". Please note that if the buffer is not empty, and the module receives data again, it will not report a new URC until all the received data has been retrieved via AT+QCFGEXT="nipdr"...
  • Page 12 BG96 NIDD Commands Manual AT+QCFGEXT="nipdcfg" +QCFGEXT: "nipdcfg",0,"cmcc" AT+QCFGEXT="nipd",1,30 //Open NIDD connection. +QIND: "nipd","open",0 //Send the string “quectel” in ASCII format via NIDD AT+QCFGEXT="nipds",0,"quectel",7 connection. //Send the string “abcde” in hex format via NIDD AT+QCFGEXT="nipds",1,"6162636465",10 connection. //When there is any incoming data from the network, the following URC will be reported.

  • Page 13: Summary Of Codes

    LTE Module Series BG96 NIDD Commands Manual Summary of <err> Codes The error code <err> indicates an error related to mobile equipment or network. The details about <err> are described in the following table. Table 1: Summary of <err> Code <err>...

  • Page 14: Appendix A References

    LTE Module Series BG96 NIDD Commands Manual Appendix A References Table 2: Related Documents Document Name Remark Quectel_BG96_AT_Commands_Manual BG96 AT Commands Manual Table 3: Terms and Abbreviations Abbreviation Description Application Processor Evolved Packet System Mobile Equipment Mobile Originated Mobile Terminated...
