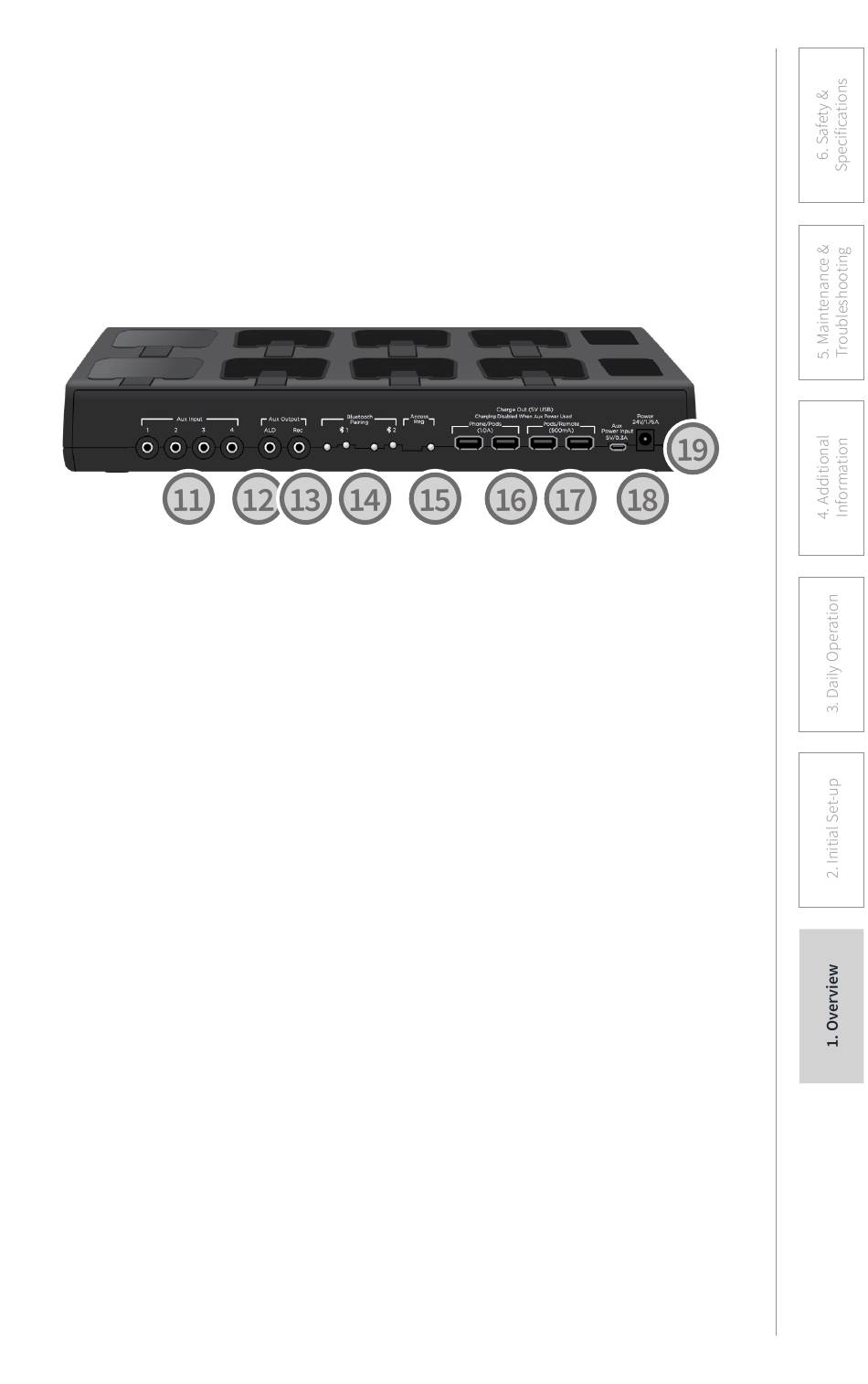

ACTIVATE STATION: CONTROLS, CONNECTIONS
AND INDICATORS
12. AUDIO OUTPUT (ALD): connect
Assistive Listening Device to send
the whole classroom audio to an
individual student's device.
13. AUDIO OUTPUT (REC): connect
recording device to capture whole
classroom audio from the teachers'
microphone. When Record is toggled
on in the app, the output provides a
fixed level that does not change when
the Audio Out volume is adjusted.
14. BLUETOOTH PAIRING (1-2):
press this button to pair Activate
to a mobile device. Download the
Lightspeed Activate app from the
iOS App Store or Google Play for
complete instructions.
15. ACCESS REGISTRATION: this button
is used to pair the Activate Station
with the classroom audio system. If
purchased together this is done by
default at the factory.
16. USB CHARGE OUTPUTS (PHONE/
PODS): use the first two USB ports to
charge a mobile phone or additional
Pods.
17. USB CHARGE OUTPUTS (PODS/
REMOTE/SHAREMIKE): use these
two USB ports to charge additional
Pods, Sharemike or optional remote
control.
18. AUX POWER INPUT: 5V USB power
from a laptop or USB power pack can
be used in a portable application to
power the Activate Station wireless
audio functions (in place of the
standard 24V power supply). Note :
Charging is disabled when auxiliary
power is used.
19. DC POWER INPUT: plug the primary
24V/1.75A power supply into this jack.
