ACTIVATE STATION: OUTPUT TO ASSISTIVE
LISTENING DEVICE (ALD)
1. Turn the Audio Out volume control
on the Activate front panel all the way
down.
2. Determine the size and type of audio
input jack on the device as many
manufacturers' products
differ in connector size and shape.
Most personal FM transmitters
require a 3.5mm to 3.5mm patch
cable (part# MSC3535).

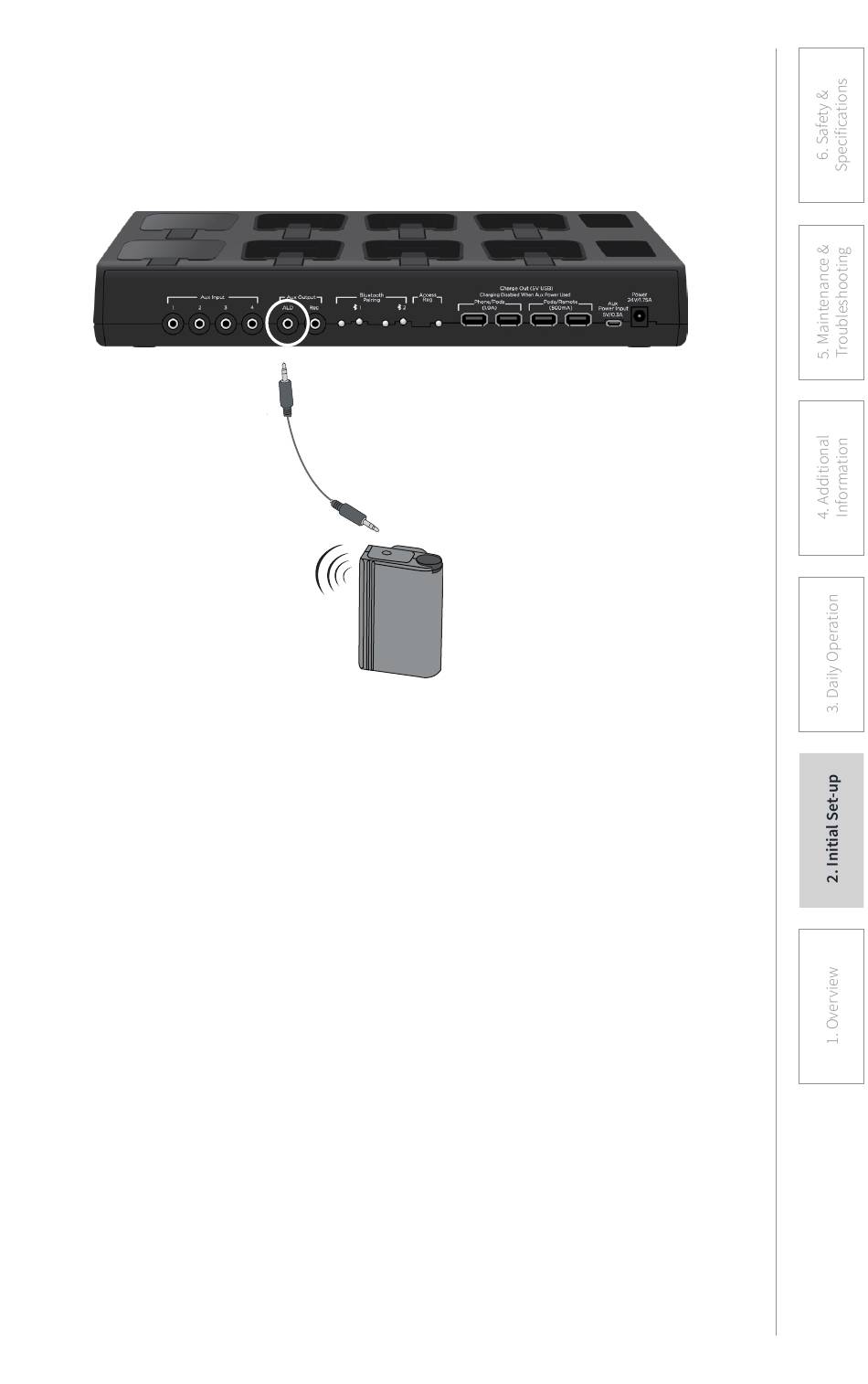

3. Connect a patch cable from the ALD's
microphone jack or AUX input to the
3.5mm audio jack labeled "ALD" on
the back of the Activate.
ALD Transmitter
4. With the Access system and ALD
turned on, speak into the Flexmike
and slowly adjust the AUDIO OUT
volume control on the Activate
until the appropriate audio level
is attained in the ALD receiver's
headphones.
5. It may be necessary to adjust the
volume on the Personal FM receiver
to achieve appropriate volume level.
19
