3. PLACE THE COMPONENTS IN THE ACTIVATE
STATION
Prior to full operation, all system components should be fully charged (at least 8 hours)
to ensure optimum performance. In most cases, there should be enough battery life for
initial setup and testing.

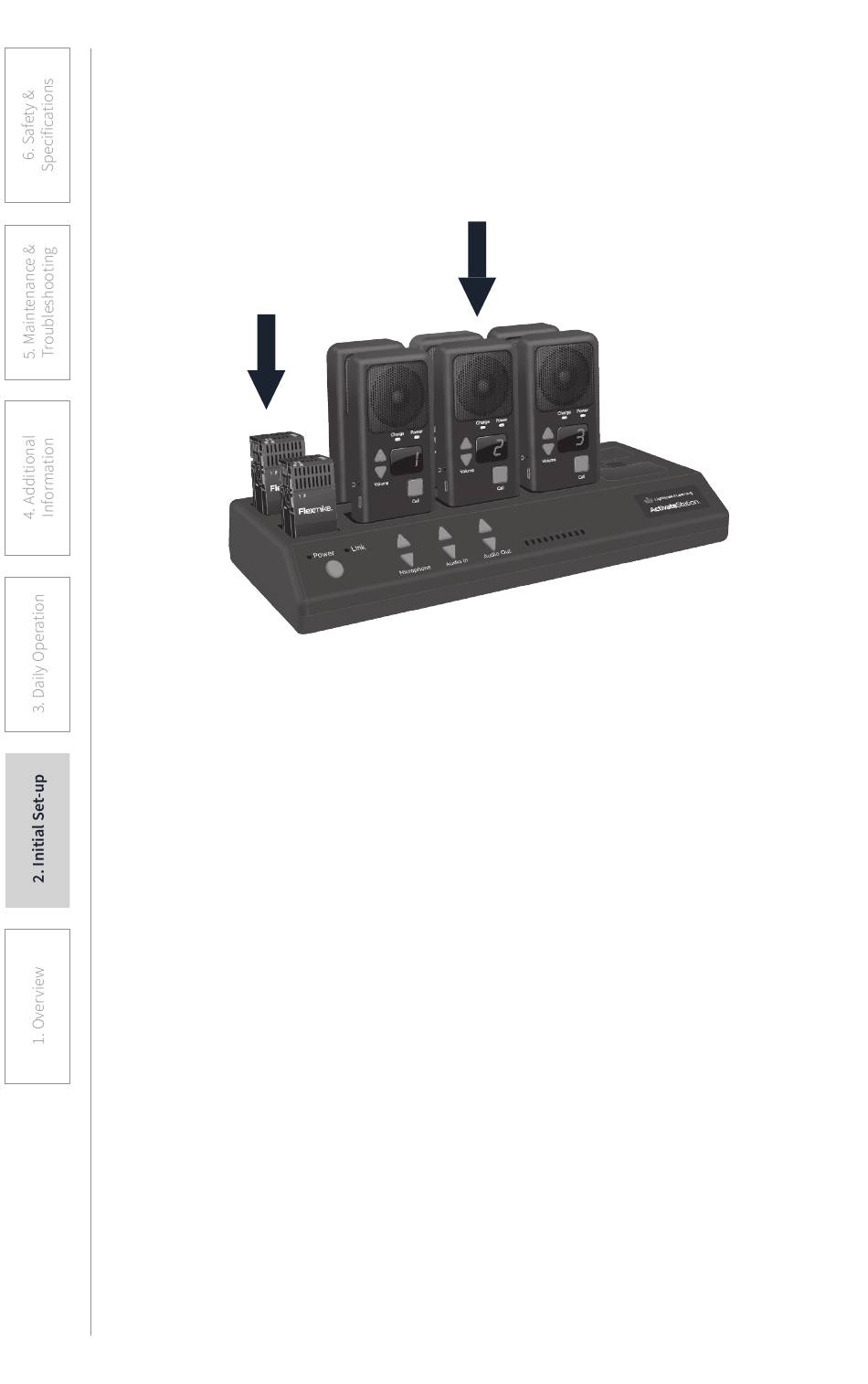

1. Insert all Pods into the Activate Station. If your system has more than 8 Pods, the
additional Pods can be plugged into the USB charging ports on the back with the
included cables.
2. Each Pod will power on and the charge light will turn red to indicate normal charging.
When fully charged, they will turn green.
3. Insert the Flexmike(s) into the Activate Station.
4. The Flexmike(s) will power on and charging light will turn red to indicate normal
charging. When fully charged, it will turn green. The blue microphone 1 or 2 light will
blink for several seconds as it establishes a link, then turn solid.
5. For systems with optional handheld remotes, those can be plugged into the rear USB
Pods/Remote/Sharemike charging ports. The charging light will turn red to indicate
normal charging. When fully charged, it will turn green.
If your Activate System was purchased together with a Lightspeed audio system (Redcat,
Topcat, 955 or Access Link), all components were registered (paired) together at the
factory.
The components are registered and ready for operation when:
• Microphone(s) has a solid blue #1 or #2 light
• Pods have a red LED number and solid blue power light
• Activate Station has a solid green link light
