HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HID 44-D
8 DOOR CABINET

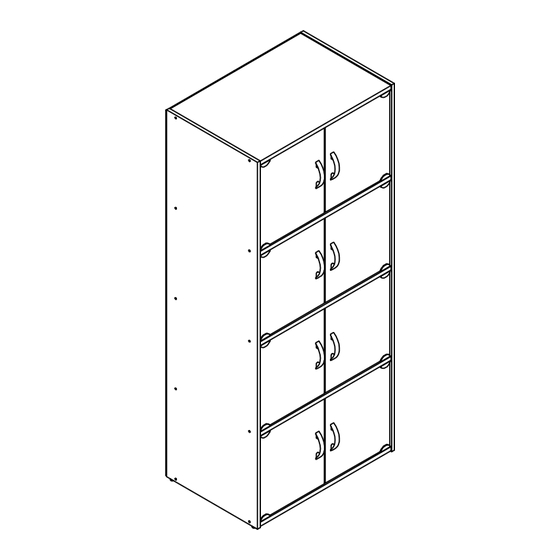

FRONT VIEW
Product Dimensions:
www.Hodedah.com
®
Height 54.2'' x Width 23.3'' x Depth 15.5''
Weight Capacity per shelf: 25 Ibs
1 person
60 mins
1 YR LTD
1 Box
BACK VIEW
1 |
Page
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HID 44-D
Summary of Contents for Hodedah HID 44-D
- Page 1 HODEDAH ® Assembly Instructions 1 person This instruction booklet contains important safety information, please read and keep for future reference. 60 mins ITEM # HID 44-D 1 YR LTD 8 DOOR CABINET 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 54.2'' x Width 23.3'' x Depth 15.5''...
- Page 2 FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
- Page 3 HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restraints may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
- Page 4 HODEDAH ® Hardware List M5 x 40mm M4 x 25mm M3.5 x 12mm JCBCW SCREW CSK SCREW CSK SCREW NAIL PVC NAIL PVC HANDLE AC58 - 64 MAGNET PLATE DOOR HOLDER (12mm) ALLEN KEY ANTI-TIP KIT Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need.
- Page 5 HODEDAH ® Part List Page www.Hodedah.com...
- Page 6 HODEDAH ® The Breakdown Page www.Hodedah.com...
- Page 7 HODEDAH ® Step 1 PVC NAIL - Fix 4 x Pvc Nails (E) into panels (4) & (5) using a Hammer. Step 2 JCBCW M5 x 40mm SCREW ALLEN KEY - Attach panel (4) to panels (1) , (2) , (3).
- Page 8 HODEDAH ® Step 3 JCBCW M5 x 40mm SCREW ALLEN KEY - Attach panel (5) to panels (1) , (2) , (3). - Insert 10 x JCBCW Screw (A) to panel (5) and tighten with a Allen Key (J). Step 4 M3.5 x 12mm CSK SCREW...
- Page 9 HODEDAH ® Step 5 Almost there M4 x 25mm CSK SCREW AC58 - 100 - 64 - Attach Handle (F) to panels (6) & (7) with 16 x CSK Screw (B) using a Phillips head screwdriver. Step 6 Final step NAIL - Fix 54 x Nails (D) into panel (8) using a Hammer.
- Page 10 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
- Page 11 HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! 11 | Page www.Hodedah.com...
