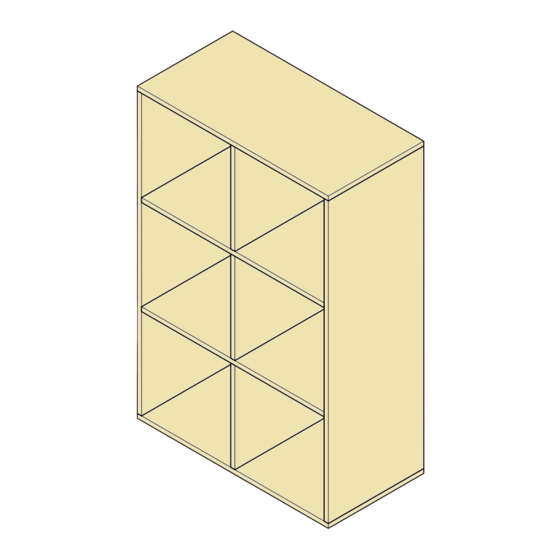

PHOENIX 6 CUBE UNIT
Assembly Instructions
Dimensions
Width - 70cm
Depth - 35.5cm
Height - 105.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
425/7079
395/8960
Version 3 Date: 19/03/15
Advertisement
Related Manuals for Argos PHOENIX 425/7079
Summary of Contents for Argos PHOENIX 425/7079
- Page 1 Width - 70cm Depth - 35.5cm Height - 105.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 3 Date: 19/03/15...
- Page 2 IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE • Argos Ltd. MK9 2 NW. • This product is intended for • Assembly of this product must children in the age 6 or above.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Top/Bottom panel x 2 (69.9 x 34.9cm) Shelf x 2 (66.8 x 34.9cm)
-
Page 4: Tools Required
Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. 30mm Dowel x 20 50mm Dowel x 4 50mm Screw x 8 (This screw is included in the wall strap bag) Screw cover x 4... - Page 5 Assembly Instructions Step 1 back edge Attaching shelves Note: It would be useful back edge to ask someone to help you at this stage. Middle supports onto Shelves Insert Dowels into the Shelves and Middle supports Step 2 back edge Attaching side panel Fix the onto the unit.
- Page 6 Assembly Instructions Step 3 Attaching top and bottom panels Fasten Screws by Allen to x the Top and Bottom panels onto back edge the unit. Use Screw covers cover the screw heads. With help, carefully stand the unit upright. Warning: unit is heavy.
- Page 7 Warning: Before drilling, check wall for hidden pipes and cables. unit wall strap using Screw Assembly is complete. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
-
Page 8: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
