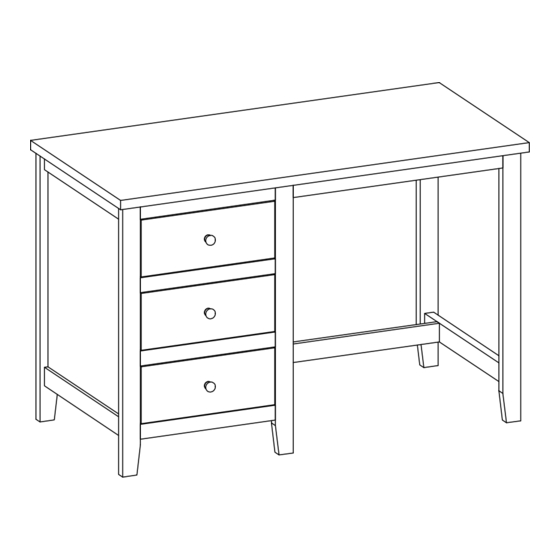

Henley Desk
Assembly lnstructions - Please keep for future reference
428/0369
Dimensions
Width - 115 cm
Depth - 55 cm
Height - 75 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Issue 1-22-05-15
Advertisement
Related Manuals for Argos Henley 428/0369
Summary of Contents for Argos Henley 428/0369
- Page 1 Henley Desk Assembly lnstructions - Please keep for future reference 428/0369 Dimensions Width - 115 cm Depth - 55 cm Height - 75 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-22-05-15...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not components and tools listed on to its final position (in the same recommend the pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline : 0345 6400 800 Underside Inside Side panel (right) (115.6 x 55.6 x 1.2cm) (53.3 x 72 x 2.5cm) Inside Divider Side panel (left) (53.3 x 72 x 2.5cm) (53.3 x 72 x 2.5cm) Support x 4 Drawer support x 2... - Page 4 Components - Parts lf you have damaged or missing components. call the Customer Helpline : 0345 6400 800 11 Drawer side panel (left) x 3 12 Drawer side panel (right) x 3 (35 x 12 x 1.2cm) (35 x 12 x 1.2cm) 13 Drawer base panel x 3 14 Drawer front x 3 (34.4 x 34.4 x 0.3cm)
- Page 5 Components - Fittings 0345 6400 800 Wooden dowel x 32 Metal dowel x 32 Small locking nut x 12 Large locking nut x 20 3x12mm screw x 12 2.2x10mm screw x 14 4x25mm screw x 12 Drawer runner x 6 Screw x 6 4x40mm screw x 4 Serew x 3...
- Page 6 Assembly Instructions Preparing panels Carefully place desk panel drawer fronts down onto a clean flat surface with the fixing holes facing Screw metal dowels into all panels as shown. Note: Insert metal dowels as far as shown. Do not overtighten. Screw metal dowels into both sides of divider as shown.
- Page 7 Assembly Instructions Assembling drawer runners Runners extended With the drawer runners extended as shown, secure drawer runners to left side panel divider using screws Front Back Front Assembling drawer Runners closed runners Push drawer runners back in and further secure using screws shown.
- Page 8 Assembly Instructions Assembling supports Fit wood dowels into the holes in the ends of supports and drawer supports as shown. With help,assemble supports onto divider in the locations shown. Note: Ensure the holes in supports are facing inside as shown. Insert large locking nuts into stretchers Turn locking nuts...
- Page 9 Assembly Instructions Assembling left side panel Fit wood dowels into the holes in each end of upper and lower stretchers shown. With help, assemble stretchers between divider left side frame in the locations shown. Note: Ensure the holes in upper stretchers facing inside and the holes in lower stretcher facing outside as shown.
- Page 10 Assembly Instructions Assembling back panel With help, carefully locate back panel into position. Secure using screws Assembling drawers Carefully locate drawer side panels onto drawer front panel Note: Ensure the grooves are correctly aligned together. Insert small locking nuts into the holes in side panels Turn locking nuts clockwise to secure.
- Page 11 Assembly Instructions Locating drawers With the drawer runners extended, carefully locate drawers onto the runners. Secure drawers using screws on the inside of the drawers as shown. Runners extended If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group.
