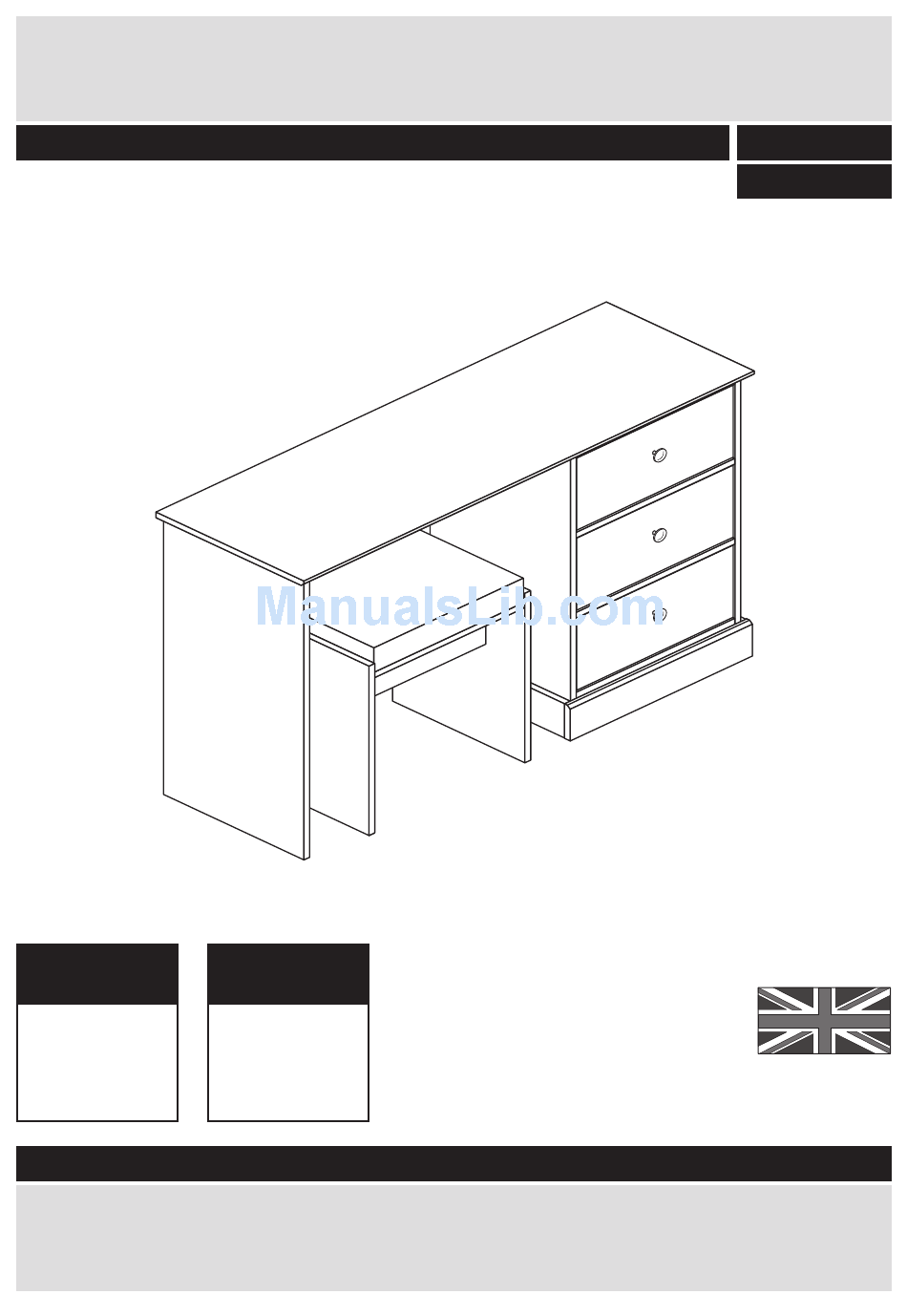

Kensington - Dressing Table & Stool
Assembly Instructions -
Dresser
Dimensions
Dimensions
Width - 119.9cm
Depth - 39.4cm
Height - 76.1cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please keep for future reference
Stool
Dimensions
Width - 43cm
Depth - 35.5cm
Height - 48cm
411/5290
428/7070
MADE IN
BRITAIN
Issue 1 - 12/06/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 428/7070
Summary of Contents for Argos 428/7070
- Page 1 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928.
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 37kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 4 Components - Fittings If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 The Dressing Table will be built first Prepare the 3 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place 3 runners Finished the left side front edge shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place 3 runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and Finished fit the 2nd screw into...
- Page 9 Assembly Instructions Step 10 Prepare the 5 rails Insert 2 large locking nuts into each of the 5 rails Tap 2 wooden dowels into each of the 5 rails Step 11 Fit 3 of the rails to the right side Push 3 rails onto the right side...
- Page 10 Assembly Instructions Step 13 Fit the left side Push the left side onto the rails Use a screwdriver to tighten the large locking fitted to each of the rails Step 14 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Step 15...
- Page 11 Assembly Instructions Step 17 Prepare the front plinth Profiled top edge Screw 2 metal dowels into the front plinth Step 18 Finished top edge Fit the plinths together Finished Push the 2 side plinths top edge Profiled onto the front plinth top edge Use a screwdriver to tighten the large locking...
- Page 12 Assembly Instructions Step 20 Prepare the 2 modesty panels Insert 4 large locking nuts into each of the 2 modesty panels Finished front edge Step 21 Prepare the fly end Screw 4 metal dowels into the fly end Finished front edge Insert 2 large locking nuts into the fly end...
- Page 13 Assembly Instructions Step 23 Note: Place 2 more polystyrene blocks from the packaging underneath the fly end. Fit the fly end Push the fly end onto the 2 modest panels Use a screwdriver to tighten the 2 large locking nuts fitted to each modesty Tap 2 plastic nails...
- Page 14 Assembly Instructions Step 25 Fit the top Push the top onto the assembly. Use a screwdriver to tighten the 2 large locking nuts fitted to each of the sides and the fly end Step 26 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the unit by...
- Page 15 Assembly Instructions Step 27 Fit the drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer 2nd threaded sides hole between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2...
- Page 16 Assembly Instructions Step 28 Prepare the 2 stool sides Screw 6 metal dowels into each of the 2 stool sides , as shown. Step 29 Prepare the stool base Insert 4 large locking nuts into the holes in the stool base Tap 2 wooden dowels into the ends of the stool base...
- Page 17 Assembly Instructions Step 32 Fit the 2 stool rails Push the 2 stool rails down onto the stool side , as shown. Use a screwdriver to tighten the 2 large locking nuts fitted to each stool rail Step 33 Fit the other stool side Push the other stool side...
- Page 18 Assembly Instructions Step 34 Fit the seat pad Position the seat pad onto the assembly and make sure that its 4 edges line up with the stool base Hold the seat pad Soft position and screw up surface through the 4 holes in the stool base using Hard...
- Page 19 If in doubt, consult an expert. Assembly is complete If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 20 ALR3181...
