SPALDING In-Ground Basketball System Owner's Manual page 16

FOLLOW THESE INSTRUCTIONS IF YOUR SYSTEM HAS A GLASS BACKBOARD - ONLY!
THAT FOAM PAD IS PLACED ON TOP OF ALL 4 STEEL SPACERS AND HAS ADHERED
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY OR DAMAGE TO PROPERTY.

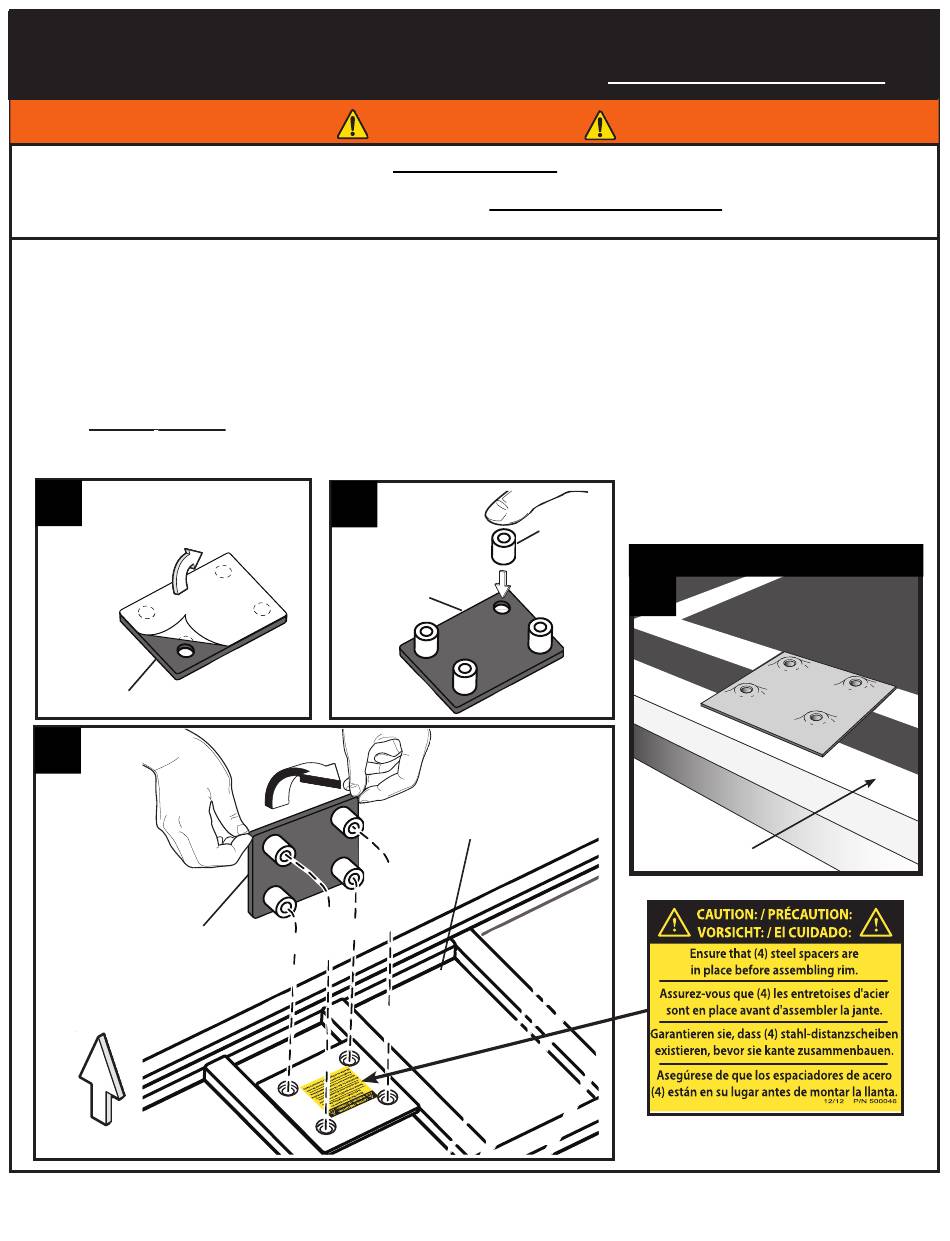

STEP 1.
Place the foam pad onto a flat surface with the adhesive side facing up. Remove the protective film.
STEP 2.
Individually align the (4) steel spacers with the (4) holes of the foam pad and firmly press the (4) steel spacers onto the
adhesive surface of the foam pad .
STEP 3.
Place the (4) steel spacers from the spacer and foam pad assembly created in step 2 into the mounting holes of the backboard.
Firmly press the foam pad onto the glass of the backboard.
STEP 4.
PLEASE ENSURE ALL (4) STEEL SPACERS ARE SECURED TO GLASS BACKBOARD UNDER FOAM PAD
BEFORE ATTACHING YOKES TO BACKBOARD. (SEE FIG. 4)
1.
PEEL
FOAM PAD
3.
FOAM PAD
GLASS SIDE UP
IMPORTANT!:
PLEASE ENSURE
TO GLASS OF THE BACKBOARD BEFORE ATTACHING YOKES.
(SEE FIG. 2)
(SEE FIG. 3)
2.
FOAM PAD
WARNING!
STEEL
SPACER
GLASS
BACKBOARD
16
(SEE FIG. 1)
STEEL SPACERS IN POSITION
4.
GLASS
BACKBOARD
