Quick Guide

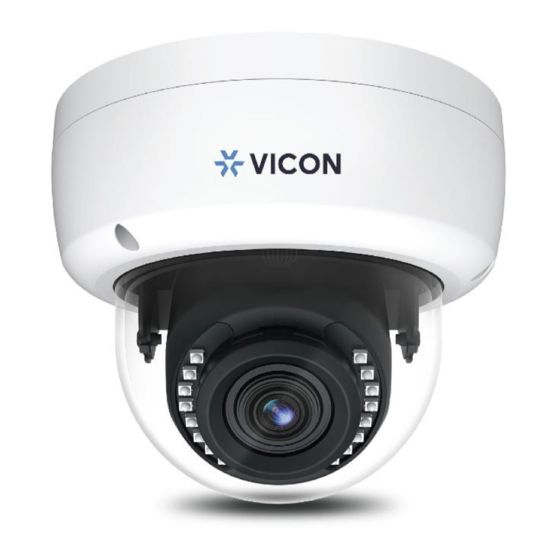

Roughneck V2100D Series
Outdoor Dome Cameras
XX318-20-02
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-20-02 Product specifications subject to change without notice.
Issued: 9/2020 Copyright © 2020 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck V2100D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon Roughneck V2100D Series

Summary of Contents for Vicon Roughneck V2100D Series

  • Page 1 Outdoor Dome Cameras XX318-20-02 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.

  • Page 2: Table Of Contents

    Outdoor Dome Series | Quick Guide Table of Content Product Overview Physical Characteristics Installation and Mounting Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Disassembling the Camera 2.2.3 Wiring the Camera 2.2.4 Mounting the Camera 2.2.5 Adjusting the Camera Position Connection Network Topology System Requirements Connecting Process...
  • Page 3 Outdoor Dome Series | Quick Guide WARNING ⚫ This camera operates at 12 VDC/PoE (IEEE 802.3af Class 3) only. ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 Outdoor Dome Series | Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Product Overview

    Outdoor Dome Series | Quick Guide 1 Product Overview 1.1 Physical Characteristics 4.9 (124) 2.5 (56.75) Figure 1 - 1: Physical Dimension Unit: in. (mm) Table 1 - 1: Pictorial Index Definition Name Conduit Hole Camera Body Top Cover Figure 1 - 2: Pictorial Index...
  • Page 6 Outdoor Dome Series | Quick Guide Figure 1 - 3: Internal Interface Pictorial Index Name Description Insert a micro SD card into the slot for recording and file storage. Micro SD card slot Press the button for less than 1 second to reboot the camera. Reset Button Press the button for 6 seconds to restore the camera’s settings Default Button...

  • Page 7: Installation And Mounting

    2 Installation and Mounting Package Contents Check if all items listed below are included in the packing box. ⚫ Network Outdoor Dome Camera * 1 ⚫ Quick Guide * 1 ⚫ Desiccant * 2 ⚫ Torx Wrench * 1 ⚫ Plastic Anchors * 3 ⚫...

  • Page 8: Disassembling The Camera

    Outdoor Dome Series | Quick Guide 2.2.2 Disassembling the Camera Refer to the steps and figure below for correct disassembly order of the camera. Loosen the 3 torx screws turning counterclockwise using the torx wrench. Gently pull the top cover downward to separate it from the camera body. Figure 2 - 1: Disassembling the Camera...
  • Page 9 Outdoor Dome Series | Quick Guide 2.2.3 Installing Desiccants After the camera disassembly is complete, the desiccants are installed. 1. Secure each desiccant (2x) (via the sticker that is attached to each desiccant) on the inside part of camera bottom case as shown in the following figure. Desiccants Figure 2 - 2: Installing the Desiccants...

  • Page 10: Wiring The Camera

    Outdoor Dome Series | Quick Guide 2.2.4 Wiring the Camera The PoE RJ-45 Ethernet and DC power ports can be found at the end of the conduit for user (based on user’s need) to connect an Ethernet cable for both power supply and network connectivity purposes and/or a DC cable for power supply.
  • Page 11 Outdoor Dome Series | Quick Guide Cable Entry Hole Plastic Anchor Holes Figure 2 - 5: Mountikng Template for Hole Pattern Step 2. Mounting the Camera Place the camera on the prepared surface and fasten the three (3) tapping screws, turning clockwise into the plugged plastic anchors to securely fix the camera onto the location.
  • Page 12 Outdoor Dome Series | Quick Guide Step 3. Re-Assembling the Camera Refer to the following steps and figure for the correct re-assembly order. After adjusting the camera position, gently push the top cover upward to attach to the camera body. See Adjusting the Camera Position below.

  • Page 13: Adjusting The Camera Position

    Outdoor Dome Series | Quick Guide 2.2.6 Adjusting the Camera Position The camera has three axes to adjust field-of-view for different applications. While screening live view on your monitor, adjust the axes using the procedures below for desired coverage of field-of-view. Refer to the figure that follows.

  • Page 14: Connection

    Outdoor Dome Series | Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirements to implement and operate the camera.

  • Page 15: Connecting Process

    Outdoor Dome Series | Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 16 Outdoor Dome Series | Quick Guide Viewing Preparation Images from the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 17 Outdoor Dome Series | Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 18 Outdoor Dome Series | Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close all browser windows and restart the browser. This will allow the new settings to take effect. ...

  • Page 19: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 20 Outdoor Dome Series | Quick Guide keywords can be input into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. Press “Auto Set IP Address” button to automatically give each camera an IP address from predefined range and connected to predefined network internet controller.
  • Page 21 Outdoor Dome Series | Quick Guide Follow the steps below to complete firmware upgrade: ▪ Click to add or remove a camera to be upgraded (only verified cameras will be shown on this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
