Sercos Gateway

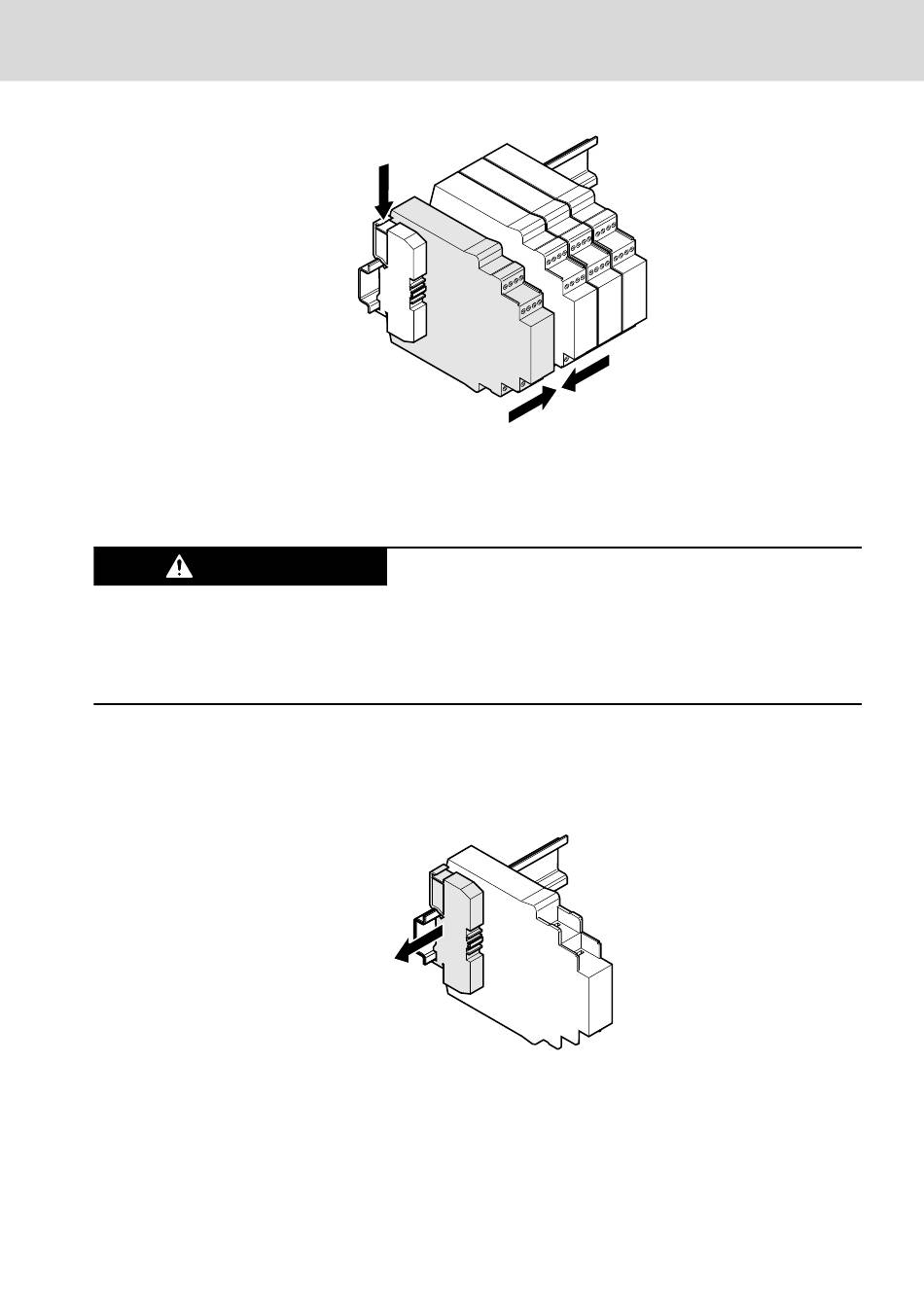

Fig. 10-3: Pushing modules together and installing end brackets

10.3 Demounting

WARNING
Disconnect the complete station and the components before demounting the
components! Connect the voltage only again after demounting.
Remove the connectors at the Sercos connections.
Remove the SafeLogic compact Sercos Gateway from the DIN rail:
1. Remove the end clamps on both sides.
Fig. 10-4: Removing the end clamps
2. If there are several modules, slide the modules away from each other
individually in the direction of the arrow until the side plug connection is
separated.
DOK-CONTRL -SLC*GW*GS3S-IT03-EN-P
Mounting, demounting and electric installation
Do not demount the control, modules or plugs
under voltage.
accidentally!
Bosch Rexroth AG
The system might start
17/31
