Alvarado MT Installation & Maintenance Instructions

MT / GST Turnstile Installation & Maintenance Instructions

Precautions:

Read this installation guide in it entirety before installing the turnstiles. If there are any questions, call Alvarado at (909)
591–8431 or (800) 423–4143, Monday through Friday, 6:00 AM to 4:30 PM PST. Installers & Store Personnel must
provide this document to the manager or person responsible for the maintenance of the Turnstile(s).
Installers & Store Personnel:
The product is designed for indoor use only.

Use only skilled individuals to install and service the turnstile.

The turnstile is not a toy. Do not allow children to play on or near the turnstile.

WARNING
Follow a proper maintenance schedule using skilled individuals.

Do not modify or alter the turnstile.

Do not use non-Alvarado parts.

Do not operate the turnstile if it has been damaged in any manner. Have the unit repaired or adjusted

by a skilled service person before use.

Models Supported:

TABLE 1 – Turnstiles Models; including a Short Product Description.
Model Number Short Product Description

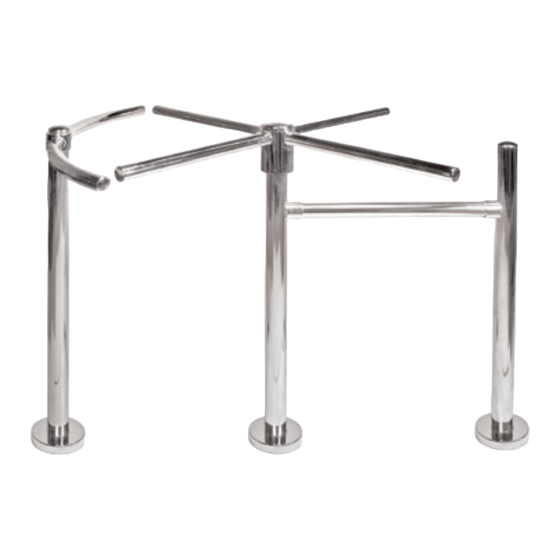

MT Straight Arm Turnstile Head with Clockwise Rotation, Turnstile Post, Connecting Post/Rail & Curved Yoke – Full Assembly –
MTA01–001
Bright Finish.
Greater Security Turnstile Head with Clockwise Rotation, Turnstile Post, Connecting Post/Rail with Over Arm Barrier & Curved
GST01–001
Yoke – Full Assembly – Bright Finish.
Materials & Tools:
TABLE 2 – Turnstiles Models with a Description of Materials Enclosed & Tools Required.
Turnstiles Model & Materials Enclosed
MT
 Turnstile Head (MT)
 Turnstile Post
 OV Rail
 OV Post
 Yoke
 Yoke Post
The product is ready for installation on level concrete assuming that no modifications are made to the
product.
NOTE
MT / GST / SPT Turnstile Installation & Maintenance Instructions || PID3038R1-1 || 05/1/2009
Alvarado Manufacturing Company, Inc.
12660 Colony Street, Chino, CA 91710
(909) 591–8431 / (800) 423–4143 / FAX: (909) 628–1403
http://www.alvaradomfg.com/
GST
 Turnstile Head (GST)
 Turnstile Post
 OV Rail
 OV Post
 OV Arm
 Yoke
 Yoke Post
Tools Required
Hammer Drill & Shop Vac

 5/8" Concrete Drill Bits (1.0" Zenith Post)
 Ratchet w/ a 9/16" Socket (15/16 Zenith Post)
 3/16" Allen Wrench
 Slotted Head Screw Driver
 Rubber Mallet
Materials Required
 (3) SB-14 4-Way Anchor Packages
1
