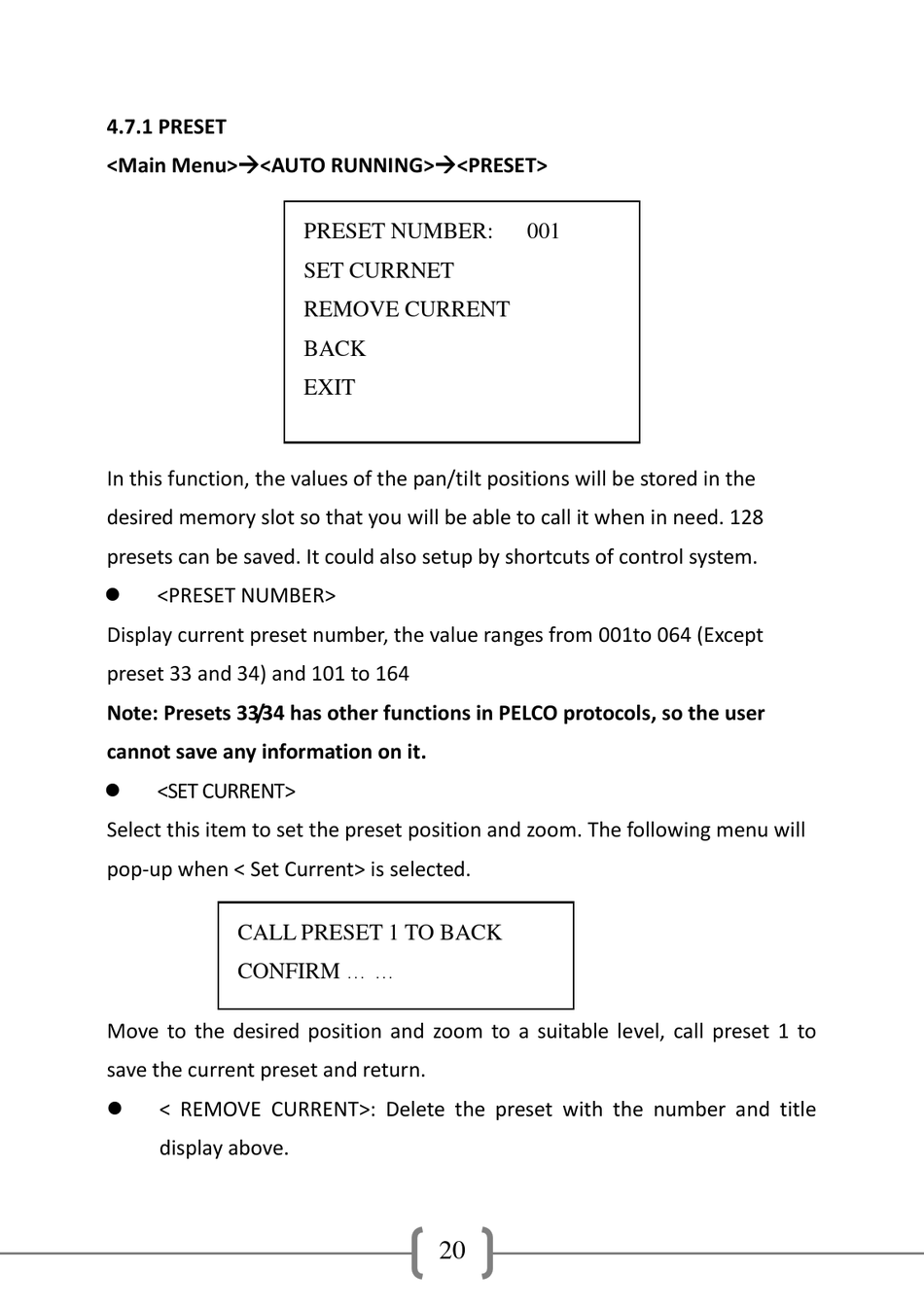

4.7.1 PRESET
<Main Menu><AUTO RUNNING><PRESET>
In this function, the values of the pan/tilt positions will be stored in the
desired memory slot so that you will be able to call it when in need. 128
presets can be saved. It could also setup by shortcuts of control system.

<PRESET NUMBER>
Display current preset number, the value ranges from 001to 064 (Except
preset 33 and 34) and 101 to 164
Note: Presets 33/34 has other functions in PELCO protocols, so the user
cannot save any information on it.

<SET CURRENT>
Select this item to set the preset position and zoom. The following menu will
pop-up when < Set Current> is selected.
CALL PRESET 1 TO BACK
CONFIRM ... ...
Move to the desired position and zoom to a suitable level, call preset 1 to
save the current preset and return.

< REMOVE CURRENT>: Delete the preset with the number and title
display above.
PRESET NUMBER:
SET CURRNET
REMOVE CURRENT
BACK
EXIT
20
001
