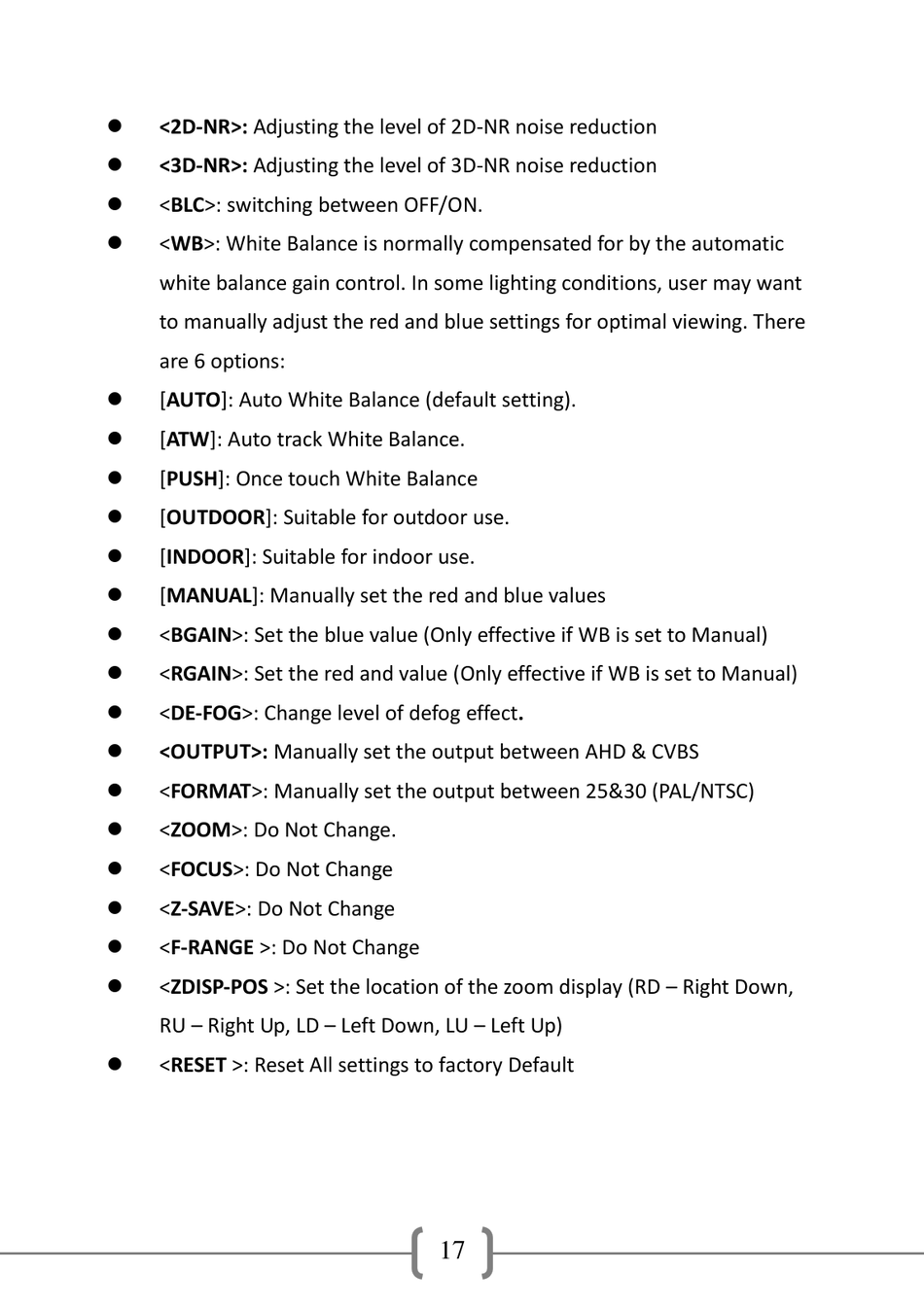

<2D-NR>: Adjusting the level of 2D-NR noise reduction

<3D-NR>: Adjusting the level of 3D-NR noise reduction

<BLC>: switching between OFF/ON.

<WB>: White Balance is normally compensated for by the automatic
white balance gain control. In some lighting conditions, user may want
to manually adjust the red and blue settings for optimal viewing. There
are 6 options:

[AUTO]: Auto White Balance (default setting).

[ATW]: Auto track White Balance.

[PUSH]: Once touch White Balance

[OUTDOOR]: Suitable for outdoor use.

[INDOOR]: Suitable for indoor use.

[MANUAL]: Manually set the red and blue values

<BGAIN>: Set the blue value (Only effective if WB is set to Manual)

<RGAIN>: Set the red and value (Only effective if WB is set to Manual)

<DE-FOG>: Change level of defog effect.

<OUTPUT>: Manually set the output between AHD & CVBS

<FORMAT>: Manually set the output between 25&30 (PAL/NTSC)

<ZOOM>: Do Not Change.

<FOCUS>: Do Not Change

<Z-SAVE>: Do Not Change

<F-RANGE >: Do Not Change

<ZDISP-POS >: Set the location of the zoom display (RD – Right Down,
RU – Right Up, LD – Left Down, LU – Left Up)

<RESET >: Reset All settings to factory Default
