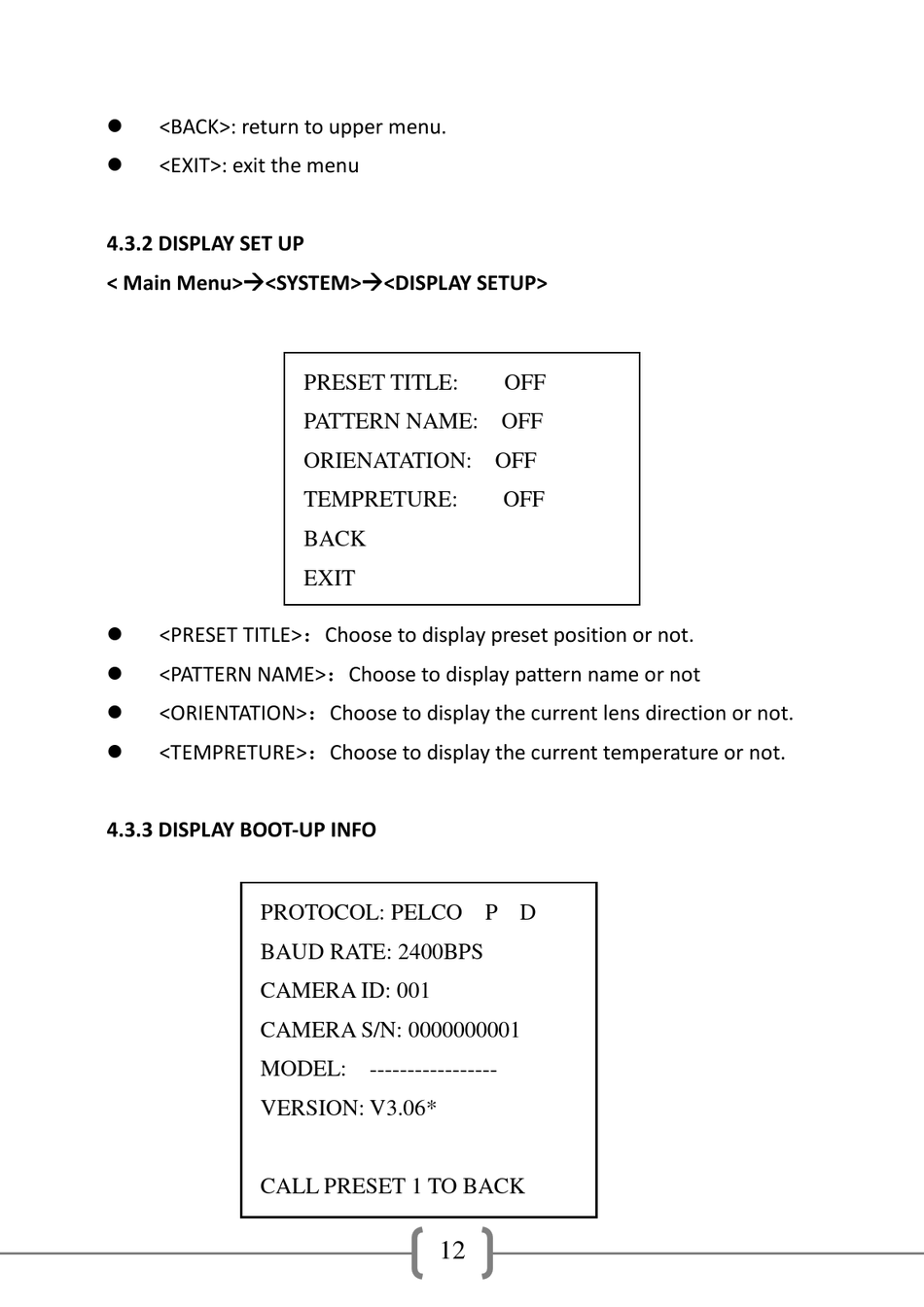

Provision ISR Ultra-Z Z-20AHD-1(IR) User Manual page 13


<BACK>: return to upper menu.

<EXIT>: exit the menu
4.3.2 DISPLAY SET UP
< Main Menu><SYSTEM><DISPLAY SETUP>

<PRESET TITLE>：Choose to display preset position or not.

<PATTERN NAME>：Choose to display pattern name or not

<ORIENTATION>：Choose to display the current lens direction or not.

<TEMPRETURE>：Choose to display the current temperature or not.
4.3.3 DISPLAY BOOT-UP INFO
PROTOCOL: PELCO P D
BAUD RATE: 2400BPS
CAMERA ID: 001
CAMERA S/N: 0000000001
MODEL: -----------------
VERSION: V3.06*
CALL PRESET 1 TO BACK
PRESET TITLE:
PATTERN NAME: OFF
ORIENATATION: OFF
TEMPRETURE:
BACK
EXIT
12
OFF
OFF
