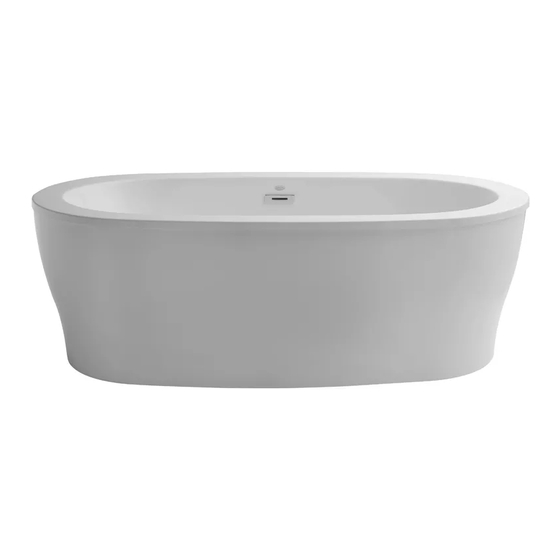

JASON Hydrotherapy forma AirMasseur AC635PS Owner's Manual

"TO BE REMOVED FOR USE BY THE OCCUPANT."
Jason International, Inc.
8328 MacArthur Drive
North Little Rock, AR 72118
www.jasoninternational.com
AC635PS & AC553PS forma
INSTALLATION, OPERATION, AND MAINTENANCE
If the carton shows sign of damage, inspect
the product before accepting and describe the
problem on the Bill of Lading.
INSPECTION
Inspect the unit prior to installation. In the event of a problem, DO
NOT install the unit. All components are factory assembled
onto the bath and the unit is water tested and inspected prior
to leaving the factory.
The installer is responsible for inspecting the unit to insure that
it is free from defects and/or shipping damage. The factory
is not responsible for damage that might have been avoided
by inspection or testing prior to installation.
Note: Transportation and insurance from Jason's factory are
the buyer's responsibility.
Damage sustained in transit is the responsibility of the
carrier. The owner or installer MUST open, uncrate, and
inspect the unit for damage when it is delivered. Inspect
plumbing and AirMasseur
components. Alert the dealer of any discrepancies. If damage
is discovered, immediately notify the carrier in writing and
request that they have a representative inspect the unit. If
the carrier fails to respond, report it to the seller and carrier.
Always file a freight claim promptly.
CAUTION: DO NOT LIFT OR HANDLE THE BATH BY ITS PLUMBING.
OWNER'S RECORD
Dealer:
Date Purchased:
Date Installed:
Installer:
Jason International, Inc. • 501.771.4477
OWNER'S MANUAL
surface for missing or damaged
®
AirMasseur
®
Damage to the unit during installation will not be covered
by warranty and is the responsibility of the installer. ALL
WARRANTY CLAIMS ON ACRYLIC SURFACE DAMAGE MUST BE
MADE PRIOR TO INSTALLATION.
To protect the unit from damage, keep the bath in its carton
until ready for installation.
EQUIPMENT ACCESS
In accordance with Building Codes, service access to all
therapy bath equipment, controls, and electrical connections
must be provided during installation. Insufficient access will
hinder repair and maintenance. For the minimum access
size refer to Table 1 - Specifications. Warranty service will not
cover the cost of providing equipment access.
TABLE 1 - SPECIFICATIONS
Overall
Dimension
Model L x W x H (in.)
L x W x H (cm.)
42 x 72 x 22
AC635PS
107 x 183 x 56
36 x 66 x 22
AC553PS
91 x 168 x 56
PLACE SERIAL NUMBER CARD WITH
PRODUCT CONFIGURATION IN THIS BOx
Page 1 of 15
49-1000-117
Date
Bath
®
Operating Blower Min. Size
Capacity 120v / Access
Gallons 240v HP W x H (in.)
Liters W x H (cm.)
56 36" x 17"
1
212 91 x 43 cm
39 36" x 17"
1
148 91 x 43 cm
Customer Service : 800.255.5766
Copyright © 2010 Jason International.
03/10
Floor
Loading
lbs/ft
2
kg/M
2
53.5 lbs
261
55 lbs
268
