Jason International, Inc.
8328 MacArthur Drive
North Little Rock, AR 72118
www.jasoninternational.com

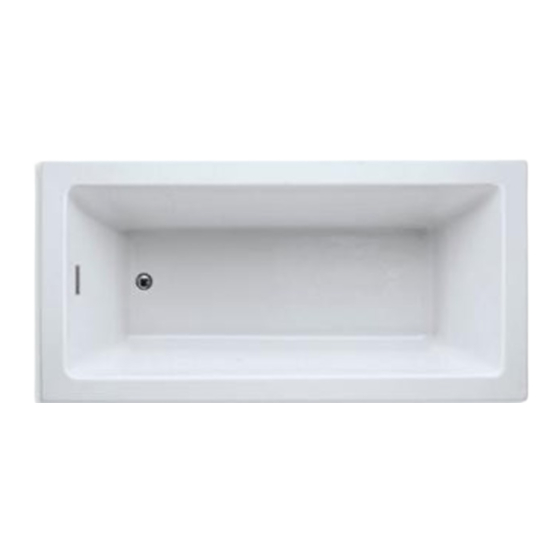

RC/RE630PS & RC553PS forma
INSTAllATION, OPERATION, AND MAINTENANCE
If the carton shows sign of damage, inspect
the product before accepting and describe the
problem on the Bill of lading.
INSPECTION
Inspect the unit prior to installation. In the event of a
problem, DO NOT install the unit.
All components are factory assembled to the bath and the
unit is water tested and inspected prior to leaving Jason
International, Inc.
If the carton shows sign of damage, inspect the product
before accepting and describe the problem on the Bill of
Lading.
NOTe: Transportation and insurance from Jason's
factory are the buyer's responsibility.
Damage sustained in transit is the responsibility of
the carrier. If damage is discovered, The carrier must
be immediately notified in writing with a request for a
representative to inspect the unit. Failure of the carrier
to respond should be reported to the seller and carrier.
Always file a freight claim promptly.
CAUTION: DO NOT lIFT OR HANDlE THE BATH BY ITS PlUMBINg.
OwNER'S RECORD
Dealer:
Date Purchased:
Date Installed:
Installer:
Jason International, Inc. • 501.771.4477
"TO BE REMOVED FOR USE BY THE OCCUPANT."
OwNER'S MANUAl
Soaking Baths
®
The installer is responsible for insuring that the unit is
free from defects or shipping damage. In the event of a
problem, DO NOT install the unit.
Jason International is not responsible for damage that
might have been avoided by inspection or testing prior to
installation.
Damage to the unit during installation will not be covered
by warranty and is the responsibility of the installer. ALL
WARRANTY CLAIMS ON ACRYLIC SURFACE DAMAGE
MUST BE MADE PRIOR TO INSTALLATION. Inspect
plumbing and bath surface for missing or damaged
components. Alert your dealer of any discrepancies.
To protect the unit from damage keep the bath in the
carton until ready for installation.
EQUIPMENT ACCESS
In accordance with Building Codes, service access to all
therapy bath equipment, controls and electrical connections
must be provided during installation. Insufficient access will
hinder repair and maintenance. Warranty service will not
cover the cost of providing equipment access.
PlACE SERIAl NUMBER CARD wITH
PRODUCT CONFIgURATION IN THIS BOx
Page 1 of 8
49-1011-002
Date 04/11
Customer Service : 800.255.5766
Copyright © 2011 Jason International.
Advertisement
Related Manuals for JASON Hydrotherapy forma RE630PS
Summary of Contents for JASON Hydrotherapy forma RE630PS
- Page 1 “TO BE REMOVED FOR USE BY THE OCCUPANT.” Jason International, Inc. 49-1011-002 8328 MacArthur Drive Date 04/11 North Little Rock, AR 72118 www.jasoninternational.com OwNER’S MANUAl RC/RE630PS & RC553PS forma Soaking Baths ® INSTAllATION, OPERATION, AND MAINTENANCE If the carton shows sign of damage, inspect The installer is responsible for insuring that the unit is free from defects or shipping damage.
-
Page 2: Installation Instructions
INSTALLATION INSTrucTIONS TABlE 1 - SPECIFICATIONS 3. Set aside the template and locating stud kit, these will be used forma RE/RC 'PS' (Soaking Bath) later. Operating Floor Overall Dimensions 4. Cardboard bath-well protector. Each bath is provided with a Capacity Loading cardboard bath-well protector that should be kept in the Model... - Page 3 INSTALLATION INSTrucTIONS (cont.) FIgURE 2 FIgURE 3 3/8" Holes (x4) Skirt Template Locating Stud Pilotholes (x4) FIgURE 5 FIgURE 4 Floor Locating Stud Bolts (x4) Overflow 6" 8" Stub-Out (x2) Sump Area Location Overflow (PVC Flex Pipe) Drain Water Inlet Stub-Out Location Jason International, Inc.
- Page 4 INSTALLATION INSTrucTIONS (cont.) assure there is enough clearance between the bath are designed for use with your particular model. shell and the skirt for the drain. 8. After the finished floor is installed, position the installation b. Position bath in place and attach the drain and overflow template on the finished floor.
- Page 5 INSTALLATION INSTrucTIONS (cont.) 18. Flex plumbing. Attach stainless steel flex plumbing to deck mounted faucet (if applicable). Faucetry connections should be tested for leaks at this time. NOTE: Flex plumbing lines must be long enough so the bath can be removed from the skirt if access is FIgURE 7 required in the future.
-
Page 6: Water Testing
INSTALLATION INSTrucTIONS (cont.) ClEANINg wATEr TESTINg Before finishing the installation, it is recommended that the 1. Remove all loose debris. Construction plaster or bath be water tested and the plumbing tested for leaks. excess grout can be removed with the use of a wood (edge) trowel. -
Page 7: User Maintenance Instructions
USEr MAINTENANCE INSTrUCTIONS ClEANINg HUMIDITY wARNINg: AVOID HIgH HUMIDITY lEVElS IN YOUR HOME. With minimum care, your acrylic-surfaced bath will retain MOlD, MIlDEw, FUNgI, AND BACTERIA wHICH MAY BE its high-luster finish for many years. For regular cleaning HARMFUl TO HEAlTH THRIVE IN AREAS wITH CONTINUED use Jason Bath Cleaner or a mild NONABRASIVE liquid HIgH HUMIDITY lEVElS;... -
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INSTrucTIONS PErTAINING TO THE rISK OF FIrE, ELEcTrIc SHOcK, Or INJurY TO PErSONS. wARNINg: When using this unit, basic precautions should always be followed, including the following: This manual contains information and instructions for proper operation and maintenance of your bath. Failure to follow these instructions could result in personal injury, electrical shock or fire.
