SET COMMUNICATION:

This section define the fundamental communication parameters of HART and BACnet
buses.
By Pressing the "Set Communication" button from the main window for SW67901 (Fig.
2) the window "Set Communication" appears (Fig. 3).
In the section "BACnet Slave" is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
The means of the fields for the "HART Master" section are:
In the field "Address" the type of Master is defined;
In the field "Retry Limit" the maximum number of retries in case of missing
response from HART device is defined;
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" the IP address of BACnet/IP side of the converter is
defined;
In the fields "SUBNET
is defined;
In the fields "GATEWAY" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature is
used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The default
port used for BACnet communication is 47808, but is possible to insert any value;
In the field "BACnet Device
defined;
In the field "Device Identifier" the ID of BACnet/IP side of the converter is
defined;
If the field "BACnet description up to 32
the BACnet objects can be up to 32 chars.
ADFweb.com S.r.l.
Mask" the SubNet Mask of BACnet/IP side of the converter
Name" the name of BACnet/IP side of the converter is
chars" is checked, the description of
User Manual BACnet Slave / HART Master
Document code: MN67901_ENG Revision 1.000

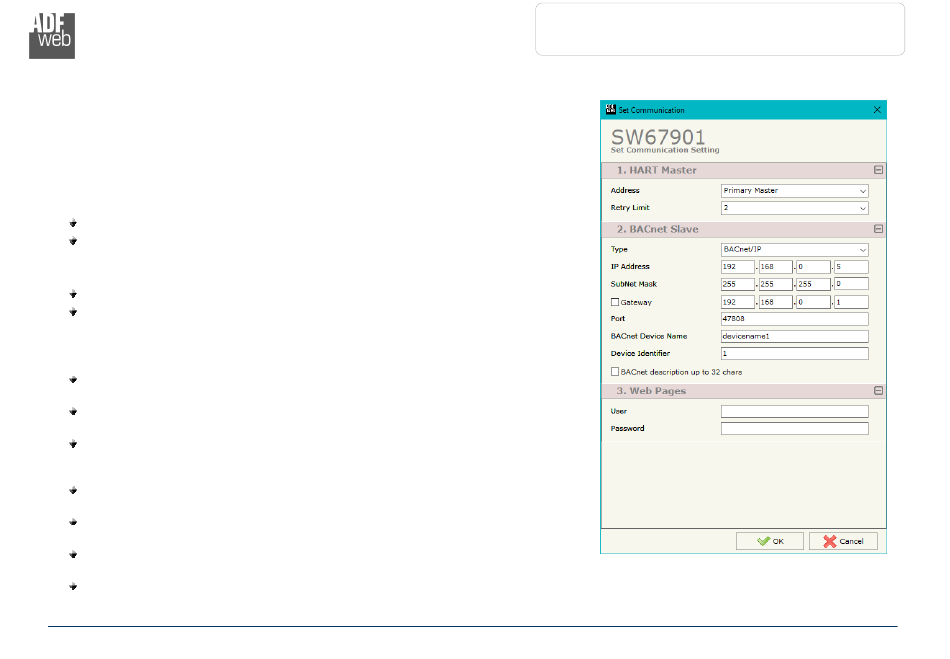

Figure 3a: "Set Communication" window
