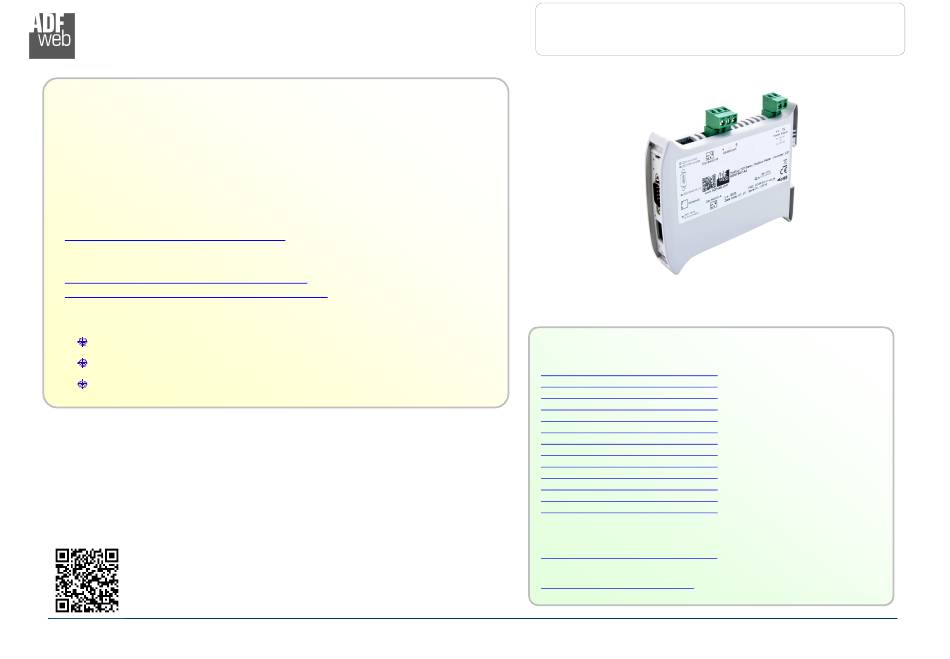

Industrial Electronic Devices
User Manual
Revision 1.001
English
BAcnet Slave / HART Master - Converter
(Order Code: HD67901-IP-A1, HD67901-MSTP-A1)
For Website information:
www.adfweb.com?Product=HD67901
For Price information:
www.adfweb.com?Price=HD67901-IP-A1
www.adfweb.com?Price=HD67901-MSTP-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual BACnet Slave / HART Master
Document code: MN67901_ENG
For other HART products see also the following link:
Converter HART Master to
www.adfweb.com?Product=HD67900
www.adfweb.com?Product=HD67902
www.adfweb.com?Product=HD67903
www.adfweb.com?Product=HD67904
www.adfweb.com?Product=HD67905
www.adfweb.com?Product=HD67906
www.adfweb.com?Product=HD67907
www.adfweb.com?Product=HD67908
www.adfweb.com?Product=HD67909
www.adfweb.com?Product=HD67910
www.adfweb.com?Product=HD67911
www.adfweb.com?Product=HD67912
www.adfweb.com?Product=HD67913
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 35
(Serial)
(CAN)
(CANopen)
(DeviceNet Slave)
(Ethernet)
(EtherNet/IP Slave)
(J1939)
(Modbus Slave)
(Modbus TCP Slave)
(MQTT)
(PROFIBUS Slave)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67901-IP-A1
Summary of Contents for ADF Web HD67901-IP-A1
- Page 1 Revision 1.000 Page 1 of 35 Industrial Electronic Devices User Manual Revision 1.001 English BAcnet Slave / HART Master - Converter (Order Code: HD67901-IP-A1, HD67901-MSTP-A1) For Website information: www.adfweb.com?Product=HD67901 For Price information: www.adfweb.com?Price=HD67901-IP-A1 www.adfweb.com?Price=HD67901-MSTP-A1 Benefits and Main Features: Very easy to configure...
-
Page 2: Table Of Contents
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 2 of 35 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 3 of 35 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 4 of 35 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 5 of 35 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67901-IP-A1 ADFweb.com S.r.l. - Page 6 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 6 of 35 Industrial Electronic Devices Figure 1a: Connection scheme for HD67901-MSTP-A1 ADFweb.com S.r.l.
-
Page 7: Characteristics
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 7 of 35 Industrial Electronic Devices CHARACTERISTICS: The HD67901-xxxx-A1 are BACnet Slave / HART Master - Converters. It allows for the following characteristics: Triple isolation between BACnet - Power Supply, BACnet - HART, HART - Power Supply; Two-directional information between BACnet bus and HART bus;... -
Page 8: Power Supply
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 8 of 35 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin... -
Page 9: Function Modes
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 9 of 35 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... -
Page 10: Leds
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 10 of 35 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode 1: Device State... -
Page 11: Hart
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 11 of 35 Industrial Electronic Devices HART: “HART” is an acronym for Highway Addressable Remote Transducer. The HART Protocol makes uses Frequency Shift Keying (FSK) standard to superimpose digital communication signals at a low level on top of the 4-20mA. This enables two-way field communication to take place and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field instrument. -
Page 12: Ethernet
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 12 of 35 Industrial Electronic Devices ETHERNET: The updating of the converters and BACnet/IP communication must be made using Connector4 of the HD67901-XXXX-A1 with at least a Category 5E cable. -
Page 13: Rs485
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 13 of 35 Industrial Electronic Devices RS485 (for BACnet MS/TP version): For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 14: Use Of Compositor Sw67901
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 14 of 35 Industrial Electronic Devices USE OF COMPOSITOR SW67901: To configure the Converter, use the available software that runs with Windows called SW67901. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 15: New Configuration / Open Configuration
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 15 of 35 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “BACnet Slave / HART Master”... -
Page 16: Software Options
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 16 of 35 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 17 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 17 of 35 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 18: Set Communication
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 18 of 35 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of HART and BACnet buses. By Pressing the “Set Communication” button from the main window for SW67901 (Fig. 2) the window “Set Communication”... - Page 19 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 19 of 35 Industrial Electronic Devices The means of the fields for the “Web Pages” section are: In the field “User” the user name for webserver’s authentication is defined; In the field “Password”...
-
Page 20: Hart Variables
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 20 of 35 Industrial Electronic Devices HART VARIABLES: By Pressing the “HART Variables” button from the main window for SW67901 (Fig. 2) the window “Definition of HART Variables List” appears (Fig. - Page 21 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 21 of 35 Industrial Electronic Devices In the field “Params” the parameters for the commands are defined; In the field “Position” the starting byte of the internal array where mapping the HART data is defined; In the field “Swap”...
-
Page 22: Set Bacnet Access
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 22 of 35 Industrial Electronic Devices SET BACNET ACCESS: By Pressing the “Set BACnet Access” button from the main window for SW67901 (Fig. 2) the window “BACnet Set Access” appears (Fig. 5). The window is divided in two parts, the “BACnet in Read”... -
Page 23: Ede File
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 23 of 35 Industrial Electronic Devices It is possible to insert directly the Unit (using its unique number) by compiling the “Selected BACnet Engineering Unit” field; or by selecting with the fields “Select the Type”... -
Page 24: Update Device
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 24 of 35 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 25 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 25 of 35 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67901 device. Warning: If Fig.
-
Page 26: Scan Function
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 26 of 35 Industrial Electronic Devices SCAN FUNCTION: “SCAN” function is integrated in the configurator software SW67901. It is possible to access to these functions by simple click on the “Scan” button in “HART Variables”... - Page 27 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 27 of 35 Industrial Electronic Devices Insert the IP Address configured in the converter; Start the Scan by clicking on “Start Scan” button. The window will appear like below: Figure 9b: “HART Scan”...
-
Page 28: Webserver Interface
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 28 of 35 Industrial Electronic Devices WEBSERVER INTERFACE: The HD67901-xxxx-A1 has an integrated Webserver that allows to scan HART network, discover HART devices and program them for first installation. - Page 29 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 29 of 35 Industrial Electronic Devices When one of the buttons of the “Welcome” page are pressed, it is necessary to do the login, using the “Admin” and “Password” defined in the section “Set Communication”...
- Page 30 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 30 of 35 Industrial Electronic Devices HART S Figure 12: “HART Scan” window When the “HART Scan” button is pressed, the “HART Scan” window appears (Fig. 12). It has the following fields: “NUMBER OF DEVICES TO SEARCH FOR (Maximum 16)”...
- Page 31 User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 31 of 35 Industrial Electronic Devices HART C ONTROL Figure 13: “Data Logger Commands” window When the “HART Control” button is pressed or when a discovered HART node from HART Scan section is selected, the “HART Control”...
-
Page 32: Mechanical Dimensions
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 32 of 35 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 14: Mechanical dimensions scheme for HD67901-XXXX-A1 ADFweb.com S.r.l. -
Page 33: Ordering Informations
BACnet type IP: BACnet/IP MSTP: BACnet MS/TP Device Family HD67901: BACnet Slave / HART Master - Converter Order Code: HD67901-IP-A1 BACnet/IP Slave / HART Master – Converter Order Code: HD67901-MSTP-A1 BACnet MS/TP Slave / HART Master - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 34: Disclaimer
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 34 of 35 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 35: Warranties And Technical Support
User Manual BACnet Slave / HART Master Document code: MN67901_ENG Revision 1.000 Page 35 of 35 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
