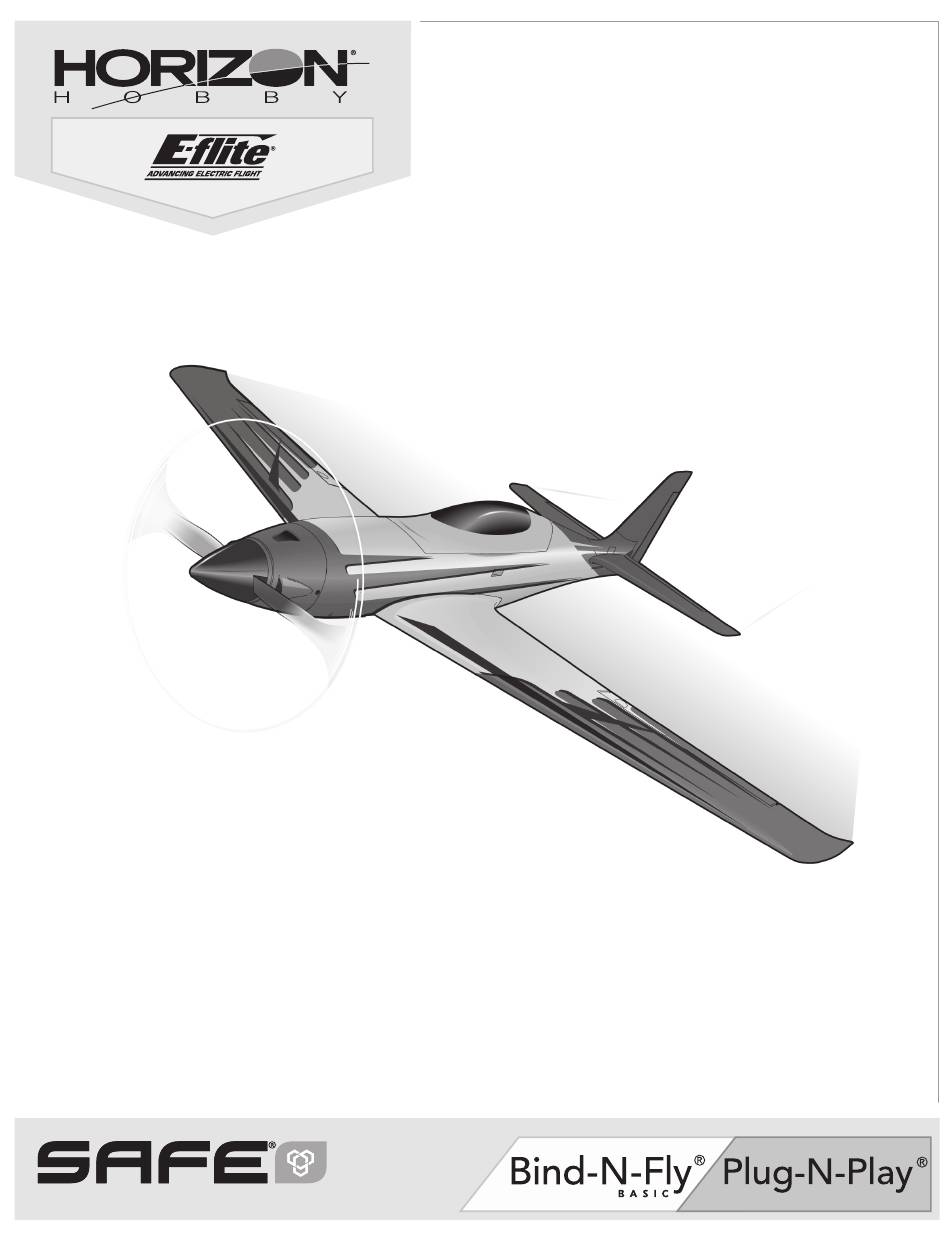

- Page 1 V900 Sport Airplane ™ Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE Select Technology, Optional Flight Envelope Protection ®...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language:...
-
Page 3: Table Of Contents
Box Contents Quick Start Information* Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate p12mm p8mm q8mm q6mm Dual Rates p8mm p5mm q8mm q5mm Center of 78-82mm back from leading edge of wing Gravity (CG) at the fuselage. -
Page 4: Safe Select Technology
SAFE Select Technology ® The evolutionary SAFE ® Select technology can offer an extra level of protection so you can perform the first flight with confidence. No complex transmitter programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Horizontal Tail Installation 1. Insert the horizontal tail (A) through the right side of the fuselage (B) as shown until the tail contacts the built in alignment stop (C). 2. Secure the horizontal tail in place using the included screw (D). Use care to avoid over-tightening the screw. -
Page 6: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection The E-flite ® V900 ™ aircraft is 3S and 4S capable. Choose the battery that fits your flying style. 3S = Fast 4S = Crazy Fast 1800mAh 11.1V 3S 30C+ Li-Po battery is recommended for good speed and longer flight times. -
Page 7: Transmitter And Receiver Binding / Switching On And Off Safe Select
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select Switching ON SAFE Select Binding Sequence This product requires an approved Spektrum DSM2 /DSMX compatible ™ ® ® transmitter. Visit www.bindnfly.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specific manner as described below. -
Page 8: Safe Select Switch Designation
SAFE Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch (2 or 3 position) ® Mode 1 and 2 Transmitters on your transmitter. With this new feature, you now have the flexibility to enable or disable the technology while in flight. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (SPMX22003S50). NOTICE: Install the battery but do not arm the ESC while checking the CG. Personal injury may result. -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. NOTICE: If a crash is imminent, reduce the throttle NOTICE: Always and trim fully. Failure to do so could result in extra Range Check your Radio System decrease throttle at damage to the airframe, as well as damage to the propeller strike. -
Page 11: Post Flight
Crash damage is not covered For more information, view our propeller balancing video on under warranty. Always install the machined aluminum spinner (EFLSP200). Horizon Hobby’s YouTube channel: https://www.youtube.com/watch?v=OXuNnYQO2s4 • Tighten the collet by using a small screw driver or hex wrench inserted into the small hole. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2018 A model aircraft is a non-human-carrying device capable of sustained flight within visual line of sight of the pilot or spotter(s). It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model flights must be conducted in accordance with this safety code and related AMA guidelines, any additional rules specific to the flying site, as well as all applicable laws and regulations. -
Page 14: Limited Warranty
Product, (iv) attempted service by call the toll free telephone number referenced in the Warranty and Service anyone other than a Horizon Hobby authorized service center, (v) Product not Contact Information section to speak with a Product Support representative. -
Page 15: Contact Information
2904 Research Road Radio Equipment Directive 2014/53/EU. Champaign, IL 61822 USA EU Importer of Record: V900 PNP (EFL7475); Hereby, Horizon Hobby, LLC declares that the device is in Horizon Hobby, GmbH compliance with the following: EU EMC Directive 2014/30/EU. Hanskampring 9 The full text of the EU declaration of conformity is available at the following 22885 Barsbüttel Germany... -
Page 16: Replacement Parts
Recommended Receivers•Empfohlene Empfänger Récepteurs Recommandés•Ricevitori Raccomandati PNP Only • Nur PNP • PNP Uniquement • Solo PNP Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice Telemetry Equipped Receivers Empfänger mit Telemetrie Récepteurs avec télémétrie Riceventi con telemetria AR620 6-Channel Air Integrated AR620-6-Kanal-Flugzeugempfänger Récepteur aérien avec télémétrie... - Page 17 E-flite, V900, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Thrust, Prophet, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
