Summary of Contents for Horizon Hobby Radian

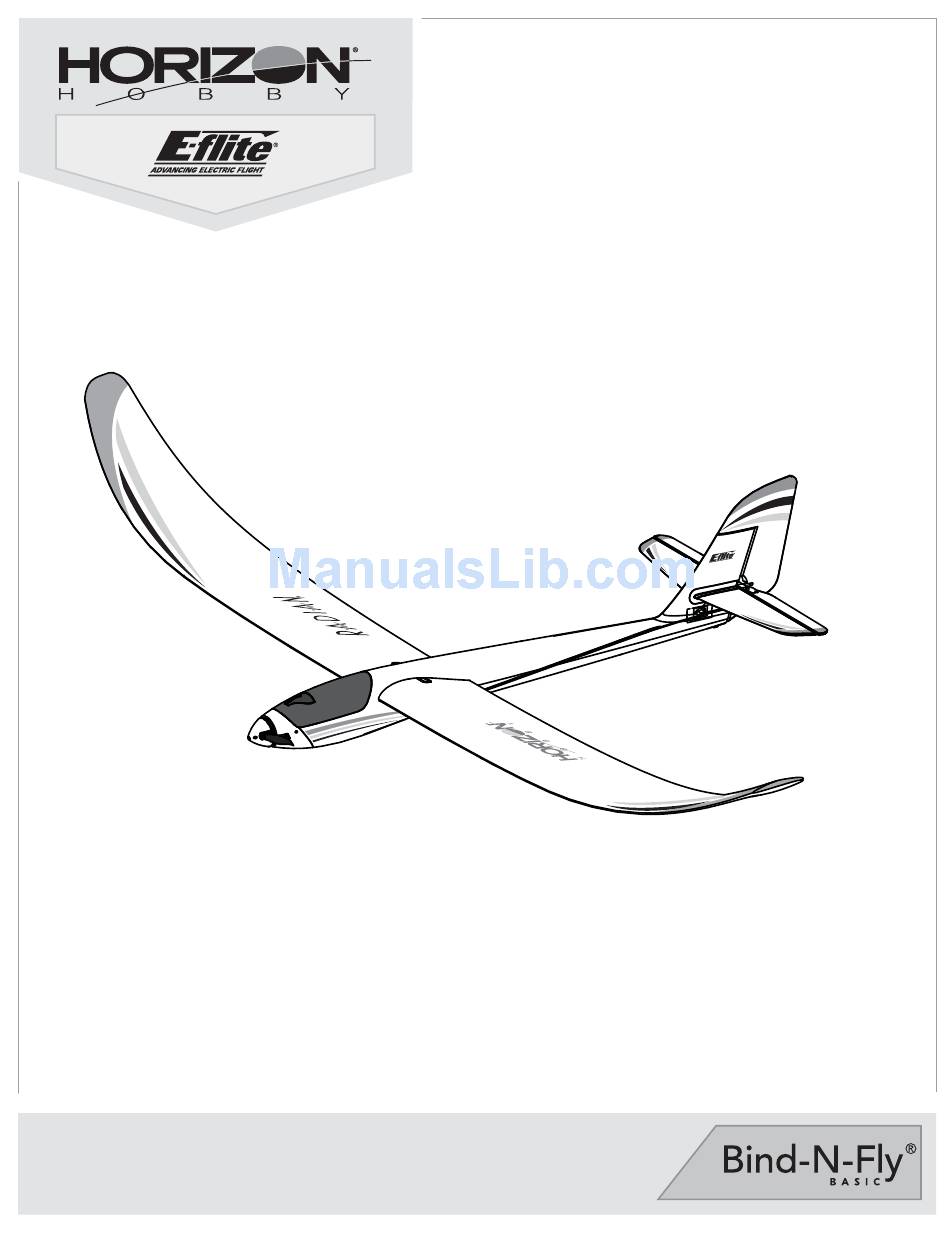

- Page 1 Radian Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
Box Contents Quick Start Information Blank (Acro) Model Servo Reversing: Transmitter Rudder: Reverse Setup Elevator: Reverse Aileron: Reverse DO NOT Reverse Throttle Dual Rates: 100% / 70% Hi Rate Low Rate Dual Rates =12mm =9mm =12mm =9mm =40mm =25mm =40mm =25mm Center of 2 1/2 inches (63mm) back... -
Page 4: Prefl Ight
Prefl ight Remove and inspect contents. Bind the aircraft to your transmitter. Read this instruction manual thoroughly. Make sure linkages move freely. Charge the fl ight battery. 10 Perform the Control Direction Test with the transmitter. Fully assemble the airplane. 11 Adjust fl... -
Page 5: Wing Installation
Model Assembly Continued Wing Installation 1. Slide the wing tube (A) into the fuselage. 2. Install the left and right wing over the wing tube until seated into the wing slot of the fuselage. 3. Secure the wings to the fuselage using the included 2 screws (B) as shown. Disassemble in reverse order. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID Remove the bind plug from the bind port. (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ™ ® ®... -
Page 7: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection We recommend the E-fl ite ® 1300mAh 11.1V 3S 20C Li-Po battery (EFLB13003S20). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl... -
Page 8: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB13003S20) installed all the way forward in the battery compartment. 2-1/2 inches (63mm) back from the... -
Page 9: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. NOTICE: If a crash is imminent, reduce the throttle and WARNING: trim fully. Failure to do so could result in extra dam- Always decrease Range Check your Radio System age to the airframe, as well as damage to the ESC and throttle at propeller motor. -
Page 10: Post Flight
Post Flight Disconnect the fl ight battery from the ESC (Required for Safety Repair or replace all damaged parts. and battery life). Store the fl ight battery apart from the aircraft and monitor the Power OFF the transmitter. battery charge. Remove the fl... -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 12: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 13: Limited Warranty
Product, (iv) attempted service by Be sure your name, address, and RMA number are clearly written on the anyone other than a Horizon Hobby authorized service center, (v) Product not outside of the shipping carton. -
Page 14: Contact Information
Compliance Information for the European Union EFL Radian BNF Basic (EFL4750) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directive. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. -
Page 15: Replacement Parts
E-fl ite Rumpf ohne Kabinenhaube Radian BNF - Fuselage nu Fusoliera vuota: Radian BNF EFL4702 Wing with spar: Radian BNF E-fl ite Tragfl äche mit Holm: Radian BNF Radian BNF - Aile avec clé Ala con longherone: Radian BNF EFL4703 Decal Sheet: Radian BNF Dekoborgen: Radian BNF Radian BNF - Planche de décoration... - Page 16 © 2015 Horizon Hobby, LLC. E-fl ite, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, Z-Foam, ModelMatch, EC3, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
