Summary of Contents for Horizon Hobby Bind-N-Fly Plug-N-Play E-flite V900

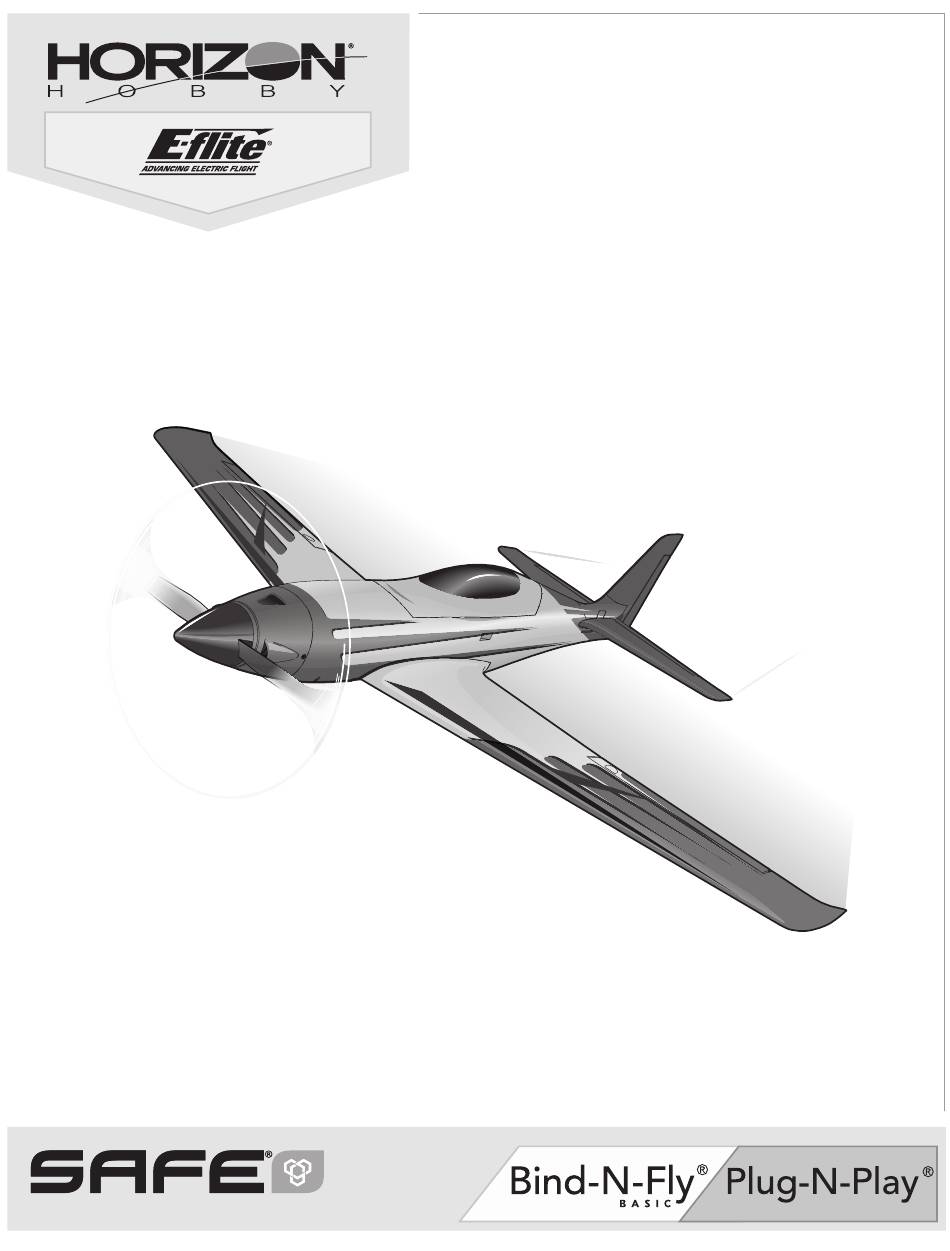

- Page 1 V900 ™ Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE Select Technology, Optional Flight Envelope Protection ®...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.
-
Page 3: Table Of Contents
Box Contents Quick Start Information* Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate p12mm p8mm q8mm q6mm Dual Rates p8mm p5mm q8mm q5mm Center of 78-82mm back from leading edge of wing Gravity (CG) at the fuselage. -
Page 4: Safe Select Technology
SAFE Select Technology ® The evolutionary SAFE Select technology can offer an extra level of protection so you can perform the first flight with confidence. No complex transmitter ® programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Horizontal Tail Installation 1. Insert the horizontal tail (A) through the right side of the fuselage (B) as shown untill the tail contacts the built in alignment stop (C). 2. Secure the horizontal tail in place using the included screw (D). Use care to avoid over-tightening the screw. -
Page 6: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection The E-flite V900™ aircraft is 3S and 4S capable. Choose the battery that fits your flying style. 1800mAh 14.8V 4S 30C+ Li-Po Battery is recommended for good speed and longer flight times. The E-flite Thrust 1800mAh 14.8V 4S 35C Li-Po Battery (EFLRB18004S35) ®... -
Page 7: Binding / Switching On And Off Safe Select
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select Switching ON SAFE Select Binding Sequence This product requires an approved Spektrum DSM2 /DSMX compatible ™ ® ® transmitter. Visit www.bindnfly.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specific manner as described below. -
Page 8: Safe Select Switch Designation
SAFE Select Switch Designation ® SAFE ® Select technology can be easily assigned to any open switch (2 or 3 Mode 1 and 2 Transmitters position) on your transmitter. With this new feature, you now have the flexibility to enable or disable the technology while in flight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both direction. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S30). Tip: Measure the CG with the aircraft inverted. 78-82mm back from leading edge of wing at the fuselage. -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. Range Check your Radio System NOTICE: After any impact, always ensure the WARNING: Before you fly, range check the radio system. Refer to your specific transmitter receiver is secure in the fuselage. -
Page 11: Post Flight
Post Flight 1. Disconnect the flight battery from the ESC (Required for Safety and battery 5. Repair or replace all damaged parts. life). 6. Store the flight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. tooltip battery charge. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 B. RADIO CONTROL A. GENERAL 1. All pilots shall avoid flying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property A model aircraft is a non-human-carrying aircraft capable of sustained flight of others. -
Page 14: Limited Warranty
(iii) modification of or to any part of the Product, (iv) attempted service by office. anyone other than a Horizon Hobby authorized service center, (v) Product not Warranty Requirements purchased from an authorized Horizon dealer, or (vi) Product not compliant... -
Page 15: Contact Information
Compliance Information for the European Union EU Compliance Statement: EFL7450 - Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives. EFL7475 - Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directives. -
Page 16: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL7451 Painted Fuselage Lackierter Rumpf Fuselage peint Fus oliera verniciata EFL7452 Painted Wing Lackierte Tragfläche Aile peinte Ala verniciata EFL7453 Horizontal Stab... -
Page 17: Optional Parts
Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice APC 8 x 8 dünner, elektrischer APC08080E APC 8x8 Thin Electric Propeller Hélice électrique fine 8x8 APC APC 8x8 Elica elettrica sottile Propeller Sac de protection du chargeur de Sacchetto di protezione per... - Page 18 E-flite, V900, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Z-Foam, Thrust, Prophet, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
