Summary of Contents for Horizon Hobby V1200 1.2M

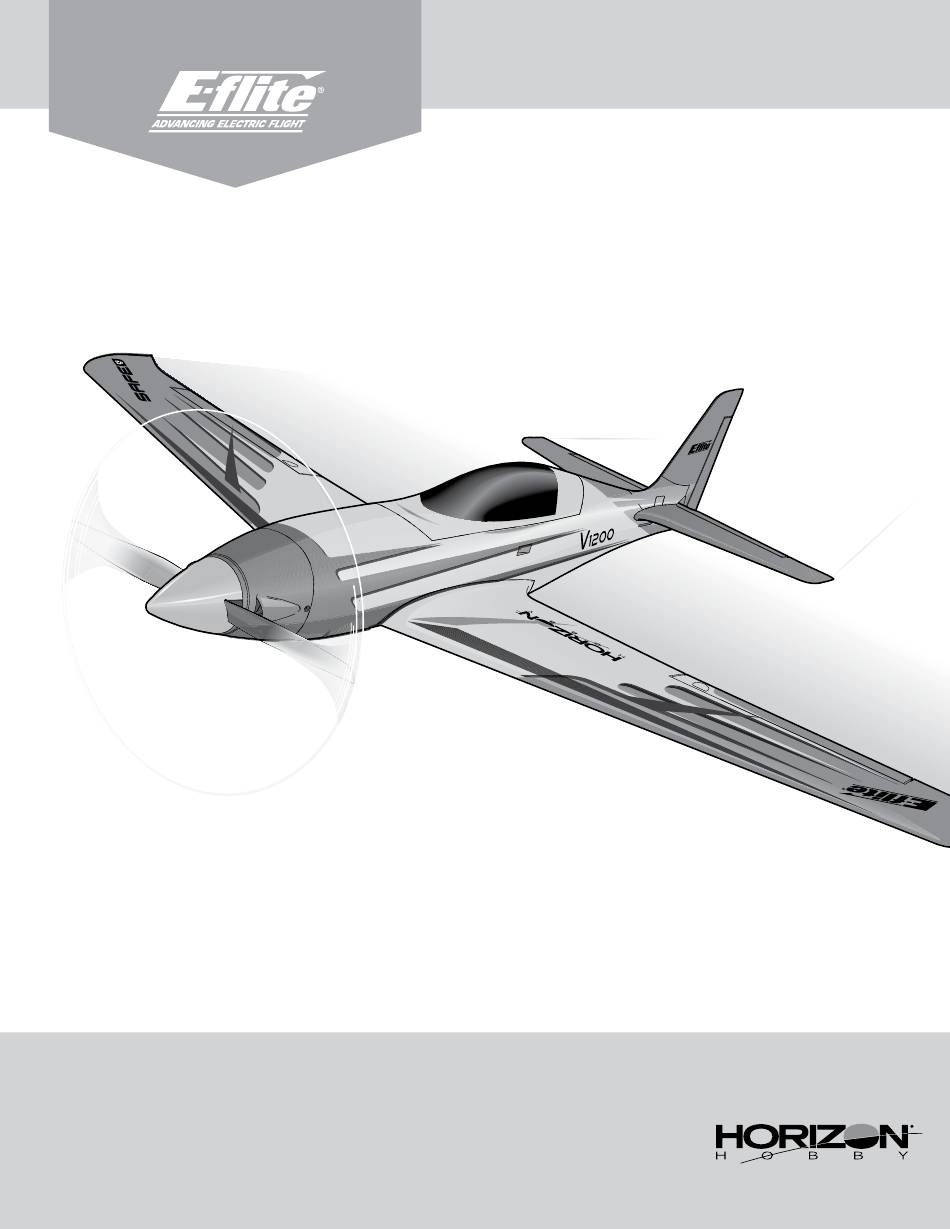

- Page 1 V1200 1.2M Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
-
Page 3: Table Of Contents
Box Contents Quick Start Information 1. Blank (Acro) Model 2. Wing Type: 1 Aileron, 1 Flap Transmitter Setup 3. Servo Reversing: Gear Reversed, All Others Normal 4. Travel Adjust (All Surfaces): 100% High Rate Low Rate = 12mm = 8mm Aileron ... -
Page 4: Select Technology
® SAFE Select Technology The evolutionary SAFE ® Select technology can offer an extra level of protection takeoffs to counter the torque of the propeller. Turn it OFF in fl ight for unrestricted so you can perform the fi rst fl ight with confi dence. No complex transmitter aerobatic performance, and turn it back ON when a buddy wants to try out your programming is required. -
Page 5: Model Assembly
WARNING: Before proceeding, remove the spinner and propeller from the motor shaft. Never attempt to program the radio components, assemble the aircraft or perform maintenance of any kind without removing the propeller or engaging throttle cut. Serious injury could result if the motor starts inadvertently with the propeller still attached. -
Page 6: Battery Installation And Esc Arming
Battery Installation and ESC Arming ™ The Spektrum Smart 5000mAh 6S 30C Li-Po battery (SPMX50006S30) is recommended for best performance. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Li-Po battery pack to fi... -
Page 7: Transmitter And Receiver Binding / Switching On And Off Safe Select
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select General Binding Tips • The included receiver has been specifi cally programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until aircraft. -
Page 8: Select Switch Designation
® SAFE Select Switch Designation Once SAFE Select is enabled, you can choose to fl y in SAFE mode full-time, or 3. Hold both transmitter sticks to the inside bottom corners, and toggle the desired assign a switch. Any switch on any channel between 5 and 9 can be used on your switch 5 times quickly (1 toggle = full up and down). -
Page 9: Control Response Test
® AS3X Control Response Test WARNING: Do not perform any testing or maintenance with the propeller Aircraft movement AS3X Reaction installed on the aircraft. Serious injury or property damage could result from the motor starting inadvertently. This test ensures that the AS3X control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test. -
Page 10: In Flight Trimming
In Flight Trimming During your fi rst fl ight, trim the aircraft for level fl ight at 3/4 throttle with fl aps up. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s fl ight path. 3 Seconds After adjusting the trim, do not touch the control sticks for 3 seconds. -
Page 11: Post Flight
Post Flight 1. Disconnect the fl ight battery from the ESC (Required for safety and battery life). 5. Repair or replace all damaged parts. 2. Power OFF the transmitter. 6. Store the fl ight battery apart from the aircraft and monitor the battery charge. 3. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to other Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
Product Support Inquiry, or call the toll free telephone number referenced in of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized the Warranty and Service Contact Information section to speak with a Product Support service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) representative. -
Page 14: Contact Information
2904 Research Road EU EMC Directive 2014/30/EU. Champaign, IL 61822 USA V1200 1.2m Sport Airplane BNF Basic (EFL12350); Hereby, Horizon Hobby, LLC EU Importer of Record: declares that the device is in compliance with the following: EU Radio Equipment Horizon Hobby, GmbH Directive 2014/53/EU. -
Page 15: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Description Beschreibung Description Descrizione EFL12351 Painted Fuselage Lackierter Rumpf Fuselage peint Fus oliera verniciata EFL12352 Painted Wing Lackierte Tragfl äche Aile peinte Ala verniciata EFL12353 Horizontal Stab Höhenleitwerk Stabilisateur horizontal Stabilizzatore orizzontale EFL12354... - Page 16 E-fl ite, V1200, Avian, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, IC5, EC5, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
