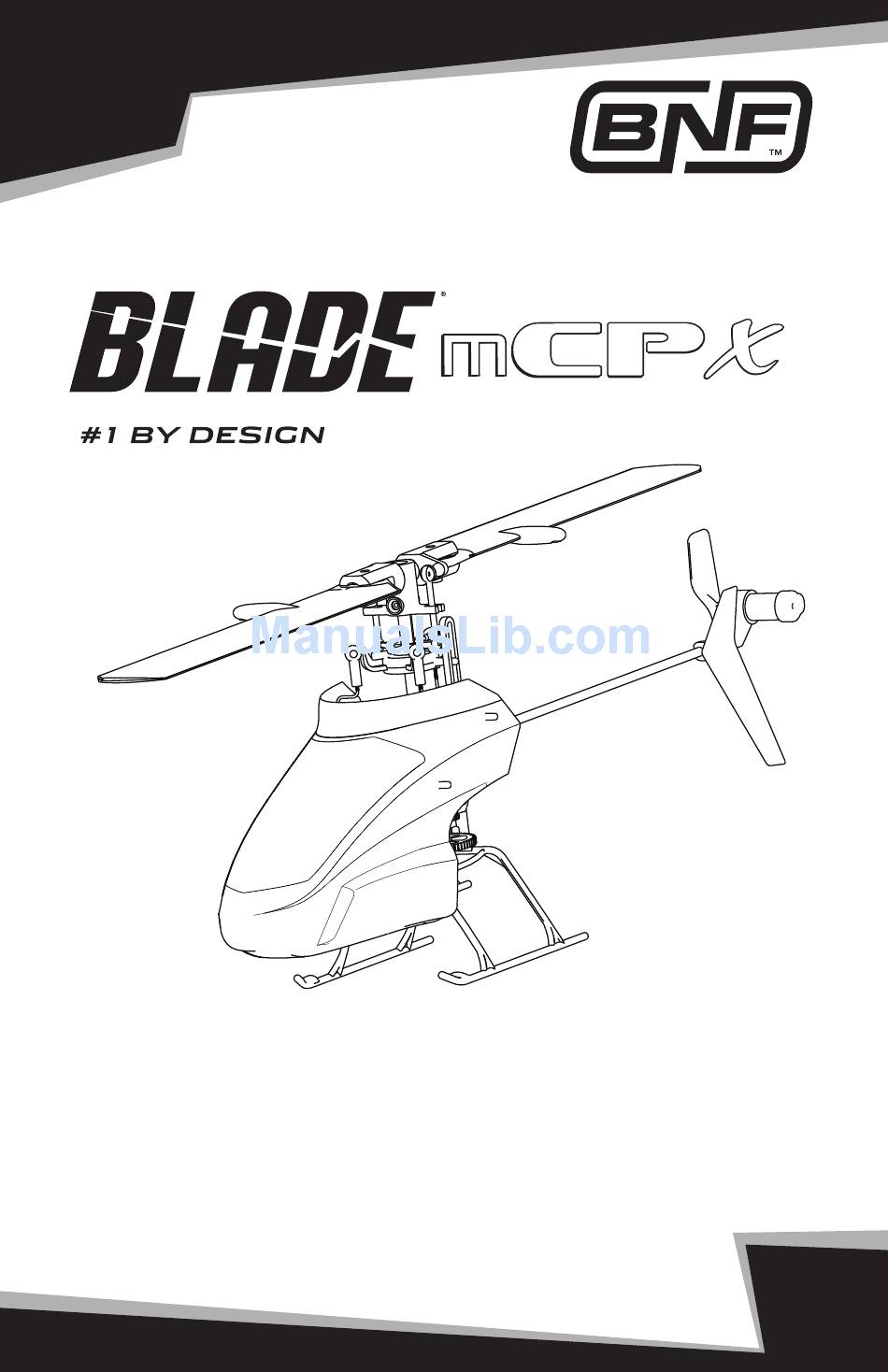

- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Additional Safety Precautions And Warnings
Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
Introduction As you are about to see, the Blade mCP X truly is an ultra micro heli experience unlike any other. Its advanced flybar- less design reduces drag on the rotorhead and significantly boosts cyclic control response. This, combined with its exceptionally lightweight airframe, delivers a level of power and responsiveness that eclipses that of any ultra micro heli you have flown before. Inverted flight, loops, flips, rolls, funnels, hurricanes – the mCP X can do it all, indoors or out, with power to spare. If you’re transitioning from a basic CCPM or fixed-pitched heli, you’ll find the mCP X is a great way to get used to flying more agile CCPM helis without having to invest a lot in expensive equipment or repairs. Before you take the first flight, though, please take time to read through this manual and watch the included DVD. Both contain important pre-flight information as well as useful tips on binding your transmitter that will help ensure your first flight is a great one. *Transmitter and AA Batteries not included with BNF Version Table of Contents Battery Warnings and Guidelines ....4 Low Voltage Cutoff (LVC) ......4 BLH3500 BLH3580 Battery Charging ........5... -
Page 4: Battery Warnings And Guidelines
Battery Warnings and Guidelines 120F/49C Always use a Never leave Always charge Never Alter Never touch or Never charge charger compatible charging Batteries Batteries away from use hot Batteries. Batteries. damaged Batteries. with batteries. flammable materials. unattended. The Battery Charger (EFLC1006) included with the Blade mCP X has been designed to safely charge the Li-Po battery. CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a fire, personal injury, and/or property damage. -
Page 5: Battery Charging
Battery Charging Celectra™ 1-Cell 3.7V Variable Rate DC Li-Po Charger Instructions 1. C onnect power supply to an appropriate power source. 2. I nsert output plug from power supply into the power input slot of the Variable Rate Charger. 3. S elect the appropriate charge current for your battery by pushing the + or -, which are the smaller buttons to the right and left of the middle button. (When charging your 200mAh battery, set the charger to 0.7 amps.) 4. C onnect the charge adapter to the Charger lead. Match the red dots on both the charge adapter and the Charger lead. -
Page 6: Programming Your Transmitter
® Programming Your Transmitter (Computer Transmitters Only) Program your transmitter before attempting to bind or fly the helicopter. If the throttle and pitch programming values are incorrect, the helicopter will not respond. Transmitter programming values are shown below for the Spektrum DX6i, DX7 and DX8. The Spektrum DX8 model file is also available for download online at the Spektrum DX8 Community. DX6i ADJUST LIST SETUP LIST SETUP LIST ADJUST LIST ADJUST LIST SETUP LIST D/R & Expo Thro Curve Model Type D/R &... -
Page 7: Transmitter And Receiver Binding
® Transmitter and Receiver Binding If you purchased an RTF model, the transmitter is bound to the model at the factory. To bind or re-bind your mCP X to your chosen transmitter, please follow the directions below: Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. You need to ‘bind’ your chosen Spektrum or JR DSM ™... -
Page 8: Primary Flight Controls
Understanding the Primary Flight Controls If you are not familiar with the controls of your mCP X, take a few minutes to familiarize yourself with them before attempting your first flight. Throttle Descend Climb Throttle up Throttle down Rudder Nose Yaws Left Nose Yaws Right Rudder left Rudder right Elevator Backward Forward Elevator down Elevator up Aileron Left Right Aileron left Aileron right... -
Page 9: Throttle Hold
Throttle Hold Throttle hold is used to turn off the helicopter motors if the helicopter is out of control, in danger of crashing or both. Activate throttle hold anytime the helicopter is in danger of crashing to reduce the chance of damaging the helicopter in a crash. -
Page 10: Installing The Flight Battery
Installing the Flight Battery 1. Lower throttle and throttle trim to lowest settings. 2. Power on transmitter. 3. Install flight battery in the battery holder. Connect the battery cable to the 3-in-1 control unit. NOTICE: Do not allow the helicopter to move until the blue LED on the 3-in-1 control unit is solid. NOTICE: Always disconnect the Li-Po from the receiver of the aircraft when not flying. Failure to do so will render the battery unusable. Flying the mCP X 50 100 Always use Never operate Always keep Always Always keep transmitter fully charged vehicle with vehicle in sight enable throttle hold powered on while vehicle is powered. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reset controls with throttle stick and Throttle at high position throttle trim at center or lowest setting Helicopter will not Set flight mode to OFF/0 and exit throttle Switches not in normal position initialize hold. Pitch or throttle servo reversing Reset servo reversing improperly configured Refer to “Programming your Transmitter” Turn off HOLD with throttle low and trim Throttle hold on centered or low. -
Page 12: Exploded View And Parts Listings
Exploded View and Parts Listings Part # Description Part # Description BLH3501 Flybarless 3-in-1 Control Unit, BLH3509 Complete Precision Swashplate: mCP X Receiver/ESCs/Gyros: mCP X BLH3510 High-performance Main Rotor Blade Set BLH3502 Tail Boom Assembly with Tail Motor/ with Hardware: mCP X Rotor/Mount: mCP X BLH3511 Fast Flight Main Rotor Blade Set with BLH3503 Main Motor with Pinion: mCP X Hardware: mCP X (not shown) BLH3504 Landing Skid and Battery Mount: mCP X BLH3512 Main Rotor Hub with Hardware: mCP X BLH3505 Main Frame with hardware: mCP X BLH3513 Feathering Spindle with O-rings, Bush- ings, and Hardware: mCP X... -
Page 13: Optional Parts
Main Board Plug Configuration Elevator Main Motor Aileron Pitch Tail Motor Optional Parts Part # Description BLH3519 Complete Green Canopy with Vertical Fin: mCP X (not shown) BLH3520G Green Vertical Fin with Decal (not shown) EFLC1004 Celectra 4 port charger Part # Description Part # Description BLH3517 Tail Rotor (1): BMSR, mCP X SPMAS 1.8-Gram Linear Ultra Micro Servo EFLH3017 2000LBB SPM6833 1.8-Gram Linear Ultra Micro Servo... -
Page 14: Warranty And Repair Policy
Warranty and Repair Policy Warranty Period WARRANTY SERVICES Exclusive Warranty- Horizon Hobby, Inc., (Horizon) war- Questions, Assistance, and Repairs ranties that the Products purchased (the “Product”) will Your local hobby store and/or place of purchase cannot be free from defects in materials and workmanship at the provide warranty support or repair. Once assembly, setup date of purchase by the Purchaser. or use of the Product has been started, you must contact Horizon directly. -
Page 15: Customer Service Information
Immunity characteristics EN55014 Immunity characteristics EN61000-3-2 Harmonic current emissions EN61000-3-3 Voltage fluctuations & flicker Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA Jan 9, 2011 Steven A. Hall Vice President International Operations and Risk Management Horizon Hobby, Inc Instructions for disposal of WEEE by users in the European Union This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electri- cal and electronic equipment. -
Page 16: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Address Phone Number/Email Address Purchase 4105 Fieldstone Rd 877-504-0233 Horizon Service Center Champaign, Illinois Online Repair Request: (Electronics and engines) 61822 USA visit www.horizonhobby.com/repairs United States of America 4105 Fieldstone Rd Horizon Product Support 877-504-0233 Champaign, Illinois (All other products) productsupport@horizonhobby.com 61822 USA Units 1-4 Ployters Rd Staple Tye +44 (0) 1279 641 097 United Kingdom Horizon Hobby Limited Harlow, Essex sales@horizonhobby.co.uk... -
Page 17: Fcc Information
EN 301 489-1, 301 489-17 EN 301 489-1, 301 489-3 General EMC requirements EN 60950 Safety EN55022 Radio disturbance characteristics EN55024 Immunity characteristics EN55014 Immunity characteristics EN61000-3-2 Harmonic current emissions EN61000-3-3 Voltage fluctuations & flicker Signed for and on behalf of: Steven A. Hall Horizon Hobby, Inc. Vice President Champaign, IL USA International Operations and Risk Management Jan 9, 2011 Horizon Hobby, Inc... - Page 18 ©2011 Horizon Hobby, Inc E-flite, Celectra, JR and DSM are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. US patent number 7, 391, 320. US D578,146. PRC ZL 200720069025.2 Other patents pending. Created 12/10 27560 BLH3500 / BLH3580...
