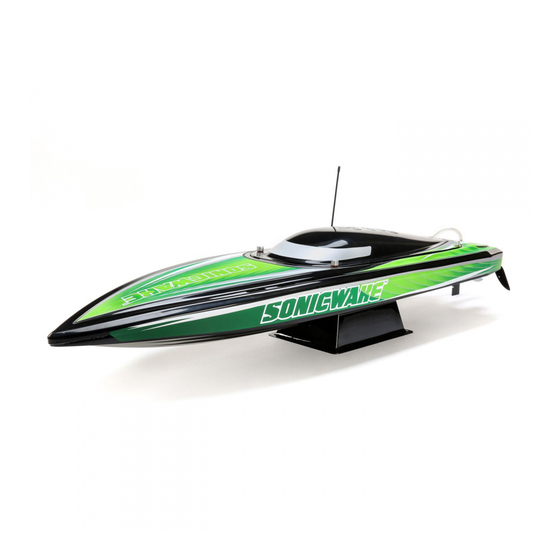

36-INCH SELF-RIGHTING DEEP-V BRUSHLESS RTR
36-INCH SELF-RIGHTING DEEP-V BRUSHLESS RTR
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
PRB08032V2
Owners Manual • Bedienungsanleitung
Manuel de l'utilisateur • Manuale dell'utente
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
pagina del prodotto per le informazioni manuali più aggiornate.
®
®
Battery and Charger
Battery and Charger
Not Included
Not Included
Advertisement
Table of Contents
Related Manuals for Horizon Hobby ProBoat SONICWAKE V2
Summary of Contents for Horizon Hobby ProBoat SONICWAKE V2

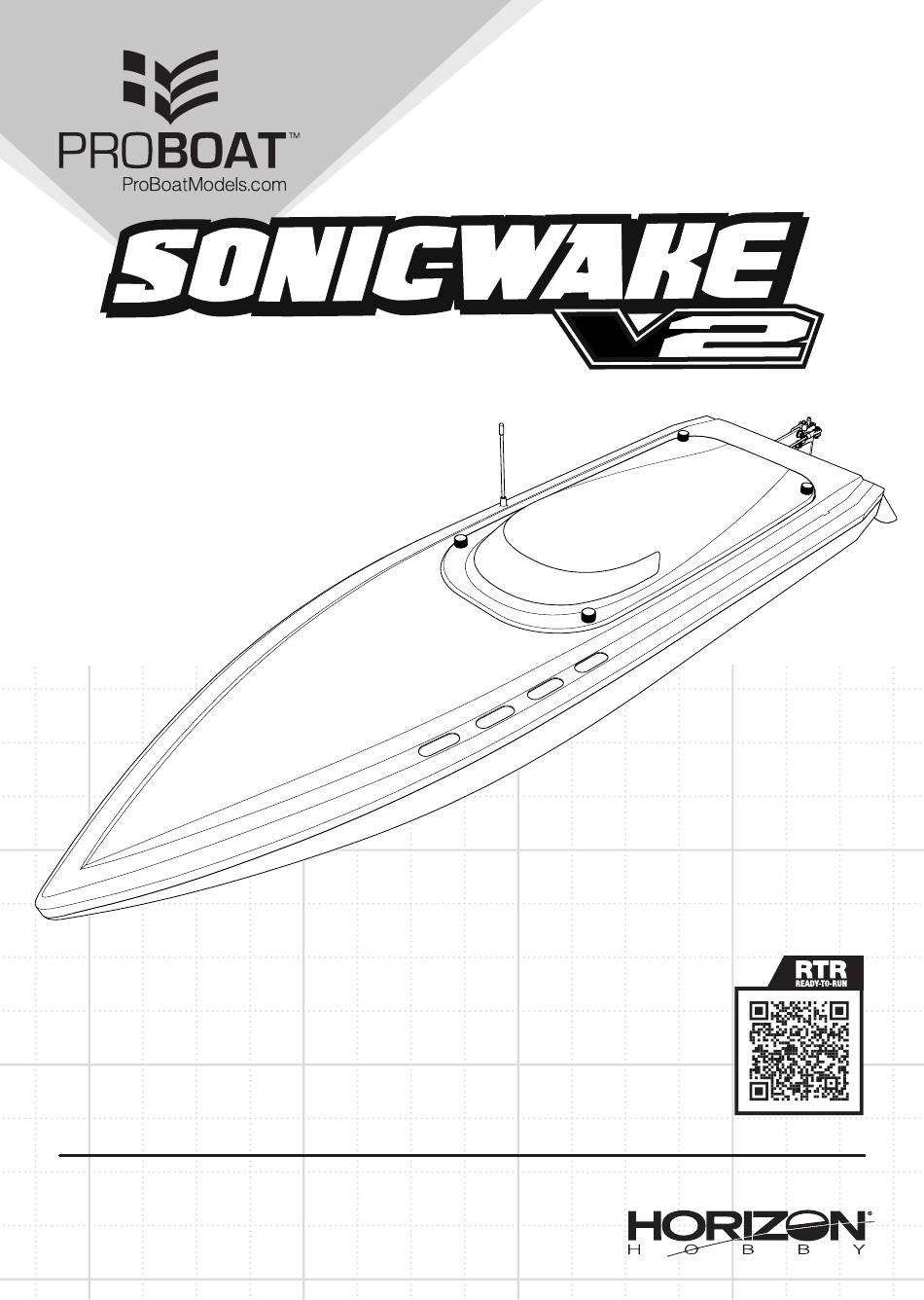

- Page 1 ® ® 36-INCH SELF-RIGHTING DEEP-V BRUSHLESS RTR 36-INCH SELF-RIGHTING DEEP-V BRUSHLESS RTR Battery and Charger Battery and Charger Not Included Not Included Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
-
Page 2: Safety Precautions And Warnings
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. -
Page 3: Table Of Contents
Box Contents • Pro Boat Sonicwake V2 36-Inch Self-Righting Deep V RTR (PRB08032V2T1/T2) ® ® • Spektrum Firma Smart 120A Brushless Marine ESC 3–6S (SPMXME1120) ™ • Spektrum SR315 DSMR 3-Channel Sport Receiver (SPMSR315) ™ ® • Spektrum 9KG Waterproof Servo (SPMS605) ™... -
Page 4: Transmitter Functions
Transmitter Functions A. Throttle Trim Adjusts the throttle neutral point Steering Trim Adjusts the steering center point. Normally, the steering trim is adjusted until the vehicle tracks straight. Solid red lights: Indicates the power is ON and • adequate battery power Flashing red lights: Indicates the battery voltage is •... -
Page 5: Battery Pack Installation
Battery Pack Installation 1. Loosen the 4 canopy screws. 2. Carefully lift the canopy from the hull. 3. Install the batteries in the battery tray. 4. Connect the battery packs to the ESC power connectors. 5. Before placing your boat in the water, secure the canopy on the hull. -
Page 6: Getting Started
Getting Started 1. Power on the transmitter. 2. Connect the two batteries to the IC5 connectors on the ® ESC. 3. Power on the ESC switch. The ESC arming tones will sound. 4. Test the transmitter’s control of the boat with the boat on the display stand. -
Page 7: Boating Tips
Boating Tips During the first run, we recommend calm wind and water NOTICE: When running at full speed in choppy water, the conditions to ensure that the boat is properly set up. propeller may exit and re-enter the water repeatedly and very Maximum speeds of 50 MPH/+ can be achieved once you quickly, subjecting the propeller and drive shaft to some stress. -
Page 8: Trim Tab Adjustment
Trim Tab Adjustment The trim tabs come installed from the factory to stabilize the 5. Tighten the adjustment lock nut to prevent further move- boat as it rides across the water. They are set for consistent ment of the adjustment screw. performance and stability in most water conditions. -
Page 9: Drivetrain Lubrication
Drivetrain Lubrication Always replace the drivetrain parts when they are damaged or NOTICE: Ensure the flex shaft is installed correctly. Installing show visible wear or injury and damage may result. the flex shaft incorrectly may result in irreparable damage to the boat. -
Page 10: General Information
General Information Receiver Antenna The SR315 receiver features a coaxial antenna design for easy WARNING: Do not kink, cut or damage the antenna installation in almost any model. The last 1 inch (32mm) on the wire. The antenna is made of a coaxial wire; if the tip of the antenna is the active portion of the antenna. -
Page 11: Failsafe
Failsafe In the unlikely event that the radio connection is lost during If the receiver is powered on before powering on the use, the receiver will drive the servo and ESC to their pre- transmitter, the receiver will enter this failsafe mode. When programmed failsafe positions (normally no throttle and the transmitter is powered on, normal control is resumed. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds to Throttle channel is reversed Reverse throttle channel on transmitter other controls Damaged propeller, shaft or motor Replace damaged parts Propeller is out of balance Balance or replace propeller Extra noise or extra vibration Boat squeals or makes a high pitch sound when... -
Page 13: 2-Year Limited Warranty
Product, (iv) attempted ser- or service. Once assembly, setup or use of the Product has vice by anyone other than a Horizon Hobby authorized service been started, you must contact your local distributor or Horizon center, (v) Product not purchased from an authorized Horizon directly. -
Page 14: Warranty And Service Contact Information
Sales 800-338-4639 Hanskampring 9 Horizon Technischer Service service@horizonhobby.de D 22885 Barsbüttel, Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 Germany *For the most up-to-date customer service contact information, please visit: www.horizonhobby.com/content/service-center-render-service-center Sonicwake 36 V2 Self-Righting Deep-V Brushless RTR... -
Page 15: Fcc Information
ProBoat Sonicwake 36 V2 Self Righting Deep V 2904 Research Road Brushless, RTR (LOS08032V2) Champaign, IL 61822 USA Hereby, Horizon Hobby, LLC declares that the device is in EU Importer of Record: compliance with the following: EU RED 2014/53/EU; RoHS 2 Horizon Hobby, GmbH Directive 2011/65/EU;... -
Page 16: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # English Deutsch Français Italiano PRB281074 Canopy, Black Verdeck, Schwarz Verrière, Noire Capottina, Nera PRB281068 Canopy, White Verdeck, Weiß Verrière, Blanche Capottina, Bianca Pro Boat Water Pro Boat Wasserdichte Récepteur Pro Boat Scatola ricevitore resistente PRB281118... -
Page 17: Optional Parts
Optional Parts / Diverse Teile / Pièces optionnelles / Pezzi opzionali Part # English Deutsch Français Italiano Dynamite DYN2803 Nut Driver: 5.5mm Clé à écrou 5,5mm Chiave per dadi: 5,5mm Steckschlüssel:5.5mm Dynamite DYN2805 Nut Driver: 8mm Clé à écrou 8mm Chiave per dadi: 8mm Steckschlüssel:8mm Dynamite metrischer... - Page 18 130241 Created: 06/2021 ©2021 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Sonicwake, Dynamite, EC5, IC5, DSMR, Firma, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. US 9,930,567. US 10,419,970. US 10,849,013.
