User Manual HPC-7120S 1U Short-depth Server Chassis for ATX/MicroATX Motherboard 1U 上架式工业服务器机箱 - 适用 ATX/ MicroATX 工业级母板 1U 上架式工業伺服器機殼 - 適用於 ATX/ MicroATX 工業級主機板...
Page 2
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
Page 3
The equipment has been exposed to moisture. The equipment does not work well, or you cannot get it to work according to the user's manual. The equipment has been dropped and damaged. The equipment has obvious signs of breakage. HPC-7120S User Manual/ 用户手册...
Page 6
Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
Page 7
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
Page 8
Also, please notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection, we will make arrangements to repair or replace the unit. HPC-7120S User Manual/ 用户手册 viii...

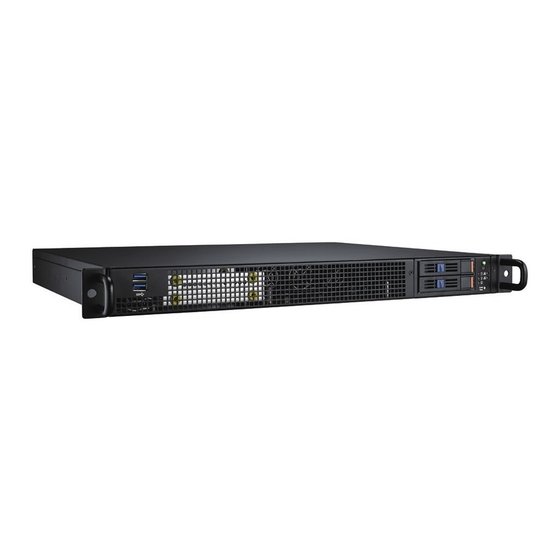

The HPC-7120S series is a 1U, short-depth rackmount/tower chassis designed for digital surveillance or broadcasting server applications. Featuring the latest in indus- trial design, the HPC-7120S represents a breakthrough from the traditional, rigid con- cept of industrial PCs, and provides users with both a high-performance and a state- of-the-art operating platform.
To remove the cover, please proceed as below. Unscrew the seven knurled screws on the top side. (see Figure 2.1) 请按照以下步骤移除机箱盖。 旋开 7 个顶盖上侧的螺丝。( 如图 2.1 所示 ) 請按照以下步驟移除主機殼蓋。 旋開 7 個頂蓋上側的螺絲。( 如圖 2.1 所示 ) HPC-7120S User Manual/ 用户手册...
Figure 2.1 Removing the top cover/ 移除顶盖 / 移除上蓋 Installing the Motherboard/ 安装母板 / 安裝主機板 The HPC-7120S can support ATX/MicroATX/Mini-ITX motherboard. To install a moth- erboard, please proceed as follows: A yellow label is located on the top cover. (see Figure 2.2) It shows the stub copper location for attaching the specific ATX/MicroATX/Mini-ITX motherboard.
Figure 2.4 Installing a Motherboard/ 安装母板 / 安裝主機板 Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機 The HPC-7120S comes with two easy-to-maintain 2.5" SATA HDD trays. Please refer to the following instructions to install the various disk drives. 支持 2 个 2.5" SATA HDD 托架以及两个内置 2.5" SATA HDD 。...
2.3.1 上安装 SATA 硬盘 / 在可移動 HDD 托架上安裝 SATA 硬碟 HPC-7120S accepts SATA HDDs. Users do not need to remove chassis cover when installing a SATA HDD into one of the mobile HDD trays. Left-shift the key latch of one HDD tray to unlock the tray. Hold the handle of the tray and draw it out from the chassis.
Figure 2.11 and simply fasten them to the front-right and front-left cor- ners with the screws provided. 附件盒里有一对耳柄。请参考图 2.11 将耳柄安装在机箱前面板的左右两端,并用提供 的螺丝进行固定。 附件盒裡有一對耳柄。請參考圖 2.11 將耳柄安裝在主機殼前面板的左右兩端,並用提 供的螺絲進行固定。 Figure 2.7 Attaching the Ears and Handles/ 安装耳柄 HPC-7120S User Manual/ 用户手册...
The five LEDs on the top of the front panel indicate system power and activity. Refer to Table 3.1 for the LED definition summary. 机箱前面板上方配有 5 个 LED 指示灯,能够显示系统是否正常运行及运行状态。LED 指 示灯的功能描述请参考表 3.1。 主機殼前面板上方配有 5 個 LED 指示燈,能夠顯示系統是否正常運行及運行狀態。LED 指示燈的功能描述請參考表 3.1。 HPC-7120S User Manual/ 用户手册...
SATA 硬碟 LED 指示燈功能 Activity LED Status Color: Green Color: Amber Drive Present, No Activity 硬盘正确安装但无数据存取 亮灯 不亮灯 硬碟正確安裝但無資料存取 亮燈 不亮燈 2 port SATA Drive Present, Activity 硬盘正确安装且有数据存取 以 4Hz 频率闪烁 不亮灯 硬碟正確安裝且有資料存取 以 4Hz 頻率閃爍 不亮燈 HPC-7120S User Manual/ 用户手册...
Unscrew the 4 screws on the fan bracket. Take out the fan bracket carefully. (See Figure 3.4) Remove the four screws on the failed fan unit and take out the fan. Fasten a new fan onto the fan bracket. Plug in fan power connectors. HPC-7120S User Manual/ 用户手册...
Backplane Layout/ 底板布局 / 背板佈局 Only for HPC-7120S-35ZXE / 仅用于 HPC-7120S-35ZXE / 僅用於 HPC-7120S-35ZXE。 Figure 4.1 Front side layout (connect to the HDD)/ 前侧布局 (连接至 HDD)/ 前方配置 (連接至 HDD) Figure 4.2 Rear side layout (connect to the RAID card or motherboard)/ 后侧布局...
