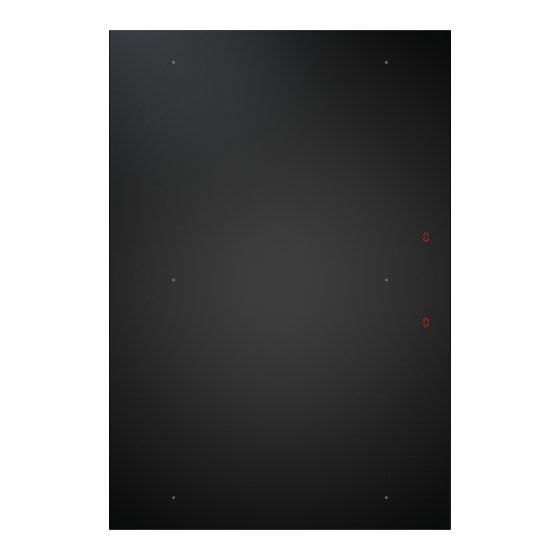

Pro surface induction glass ceramic cooktop with 2 cooking zones
Table of Contents

Advertisement

Quick Links

Operating and installation instructions PKFI11, PKFI11AB
EN
BORA Pro surface induction glass ceramic cooktop
with 2 cooking zones
BORA Pro surface induction glass ceramic cooktop
with 2 cooking zones All Black
PKFI11UMEN-007
1043169
www.bora.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKFI11 and is the answer not in the manual?

Questions and answers

Summary of Contents for bora PKFI11

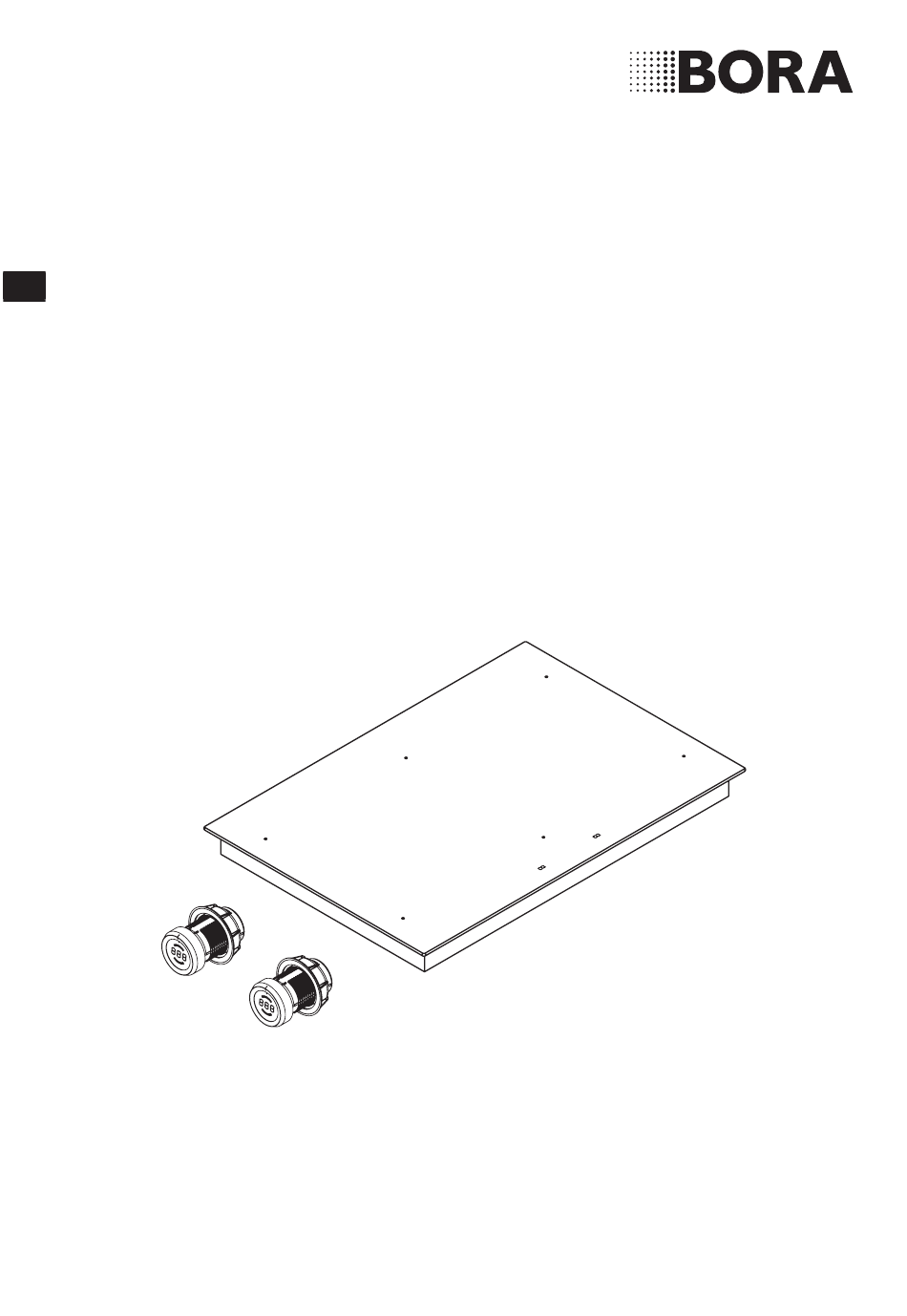

  • Page 1 Operating and installation instructions PKFI11, PKFI11AB BORA Pro surface induction glass ceramic cooktop with 2 cooking zones BORA Pro surface induction glass ceramic cooktop with 2 cooking zones All Black PKFI11UMEN-007 1043169 www.bora.com...
  • Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
  • Page 3: Table Of Contents

    4.4.1 Residual heat display......... 15 spare parts, accessories 4.4.2 Safety shut-down ..........15 4.4.3 Overheating protection ........15 10.1 BORA manufacturer’s warranty ......33 10.2 Service .............. 33 4.4.4 Childproofing feature ......... 15 10.3 Spare parts ............33 10.4 Accessories ............33 Installation Checking the delivery ........
  • Page 4: General Information

    INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred to as BORA - do not assume any liability for damage Target group arising from non-adherence to these documents...
  • Page 5: Presentation Of Information

    Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com...
  • Page 6: Safety

    Do not place any objects on the operating panel or the cooktop extractor air inlet nozzle. INFO In recirculation mode, only a slight Switch off the appliance after use. amount of moisture is removed from Keep pets away from the appliance. the cooking vapour. www.bora.com...
  • Page 7: Safety Instructions - Cooktop Operation

    Flammable liquids in the vicinity of the cooktop. cooktop can explode and cause serious injury. Do not spray aerosols in the vicinity of this appliance while it is in operation. Do not place any flammable liquids in the vicinity of the cooktop. www.bora.com...
  • Page 8 Do not place any objects on the To choose a suitable stove guard, cooktop while it is hot. contact your specialist supplier or the BORA Service Team. 2.2.1 Safety instructions – cooktop installation WARNING! Do not rely on the pan size recognition.
  • Page 9: Safety Instructions - Installation

    When cleaning, only use non-abrasive appliance’s poles to be disconnected detergents to prevent scratching and abrasion from the mains with a contact on the surface. opening width of at least 3 mm (LS switch and automatic circuit breakers, fuses, contactor). www.bora.com...
  • Page 10: Safety Instructions - Disassembly And Disposal

    INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH do Safety instructions – spare parts not assume any liability for damage arising from non-adherence to the WARNING! safety and warning information.
  • Page 11: Technical Data

    Rear cooking zone 230 x 230 mm 2100 W Power setting 3700 W Cooktop energy consumption Fig. 3.2 PKFI11 Device dimensions aerial view Front cooking zone 230 x 230 mm 182.2 (Wh/kg) Back cooking zone 230 x 230 mm 181.1 (Wh/kg)
  • Page 12: Device Description

    Control knob display elements Control knob for the back cooking zone (zone 2) Control knob for the front cooking zone (zone 1) Display of functions Power display Front cooking zone display Display of mode or operating mode Rear cooking zone display www.bora.com...
  • Page 13: Functional Principle

    The induction automatically takes into account the size of the used cookware which means that only the area in the cooking zone covered by the base of the pot is heated up. Observe the minimum pot base diameter. www.bora.com...
  • Page 14: Automatic Heat Up Function

    www.bora.com...
  • Page 15: Timer Functions

    After a sufficient cooling period, the cooktop can be used again in full. 4.4.4 Childproofing feature The childproofing feature prevents the cooktop from being switched on accidentally. is displayed. The childproofing feature can only be activated when all the cooking zones are switched off (see the Operation section). www.bora.com...
  • Page 16: Installation

    If there are any missing or damaged parts, please be taken into account: notify BORA After Sales Service immediately. It must be fitted in such a way that it can be Do not under any circumstances install parts which are removed for maintenance work.
  • Page 17: Recirculation When Using The Cooktop Extractor As A Recirculation System

    B ±2 > 500 cm² (per air cleaning box) in combination with cooktops PKFI11, PKI11, PKIW1, PKC32, PKC3B, PKCH2 and PKT11 INFO If several extractor systems are operated in recirculation mode, the return flow aperture for each air cleaning box must be calculated correspondingly.
  • Page 18: Surface Mounting

    Cooktops/cooktop extractor B in mm Fig. 5.7 Installed control knob and cooktop ≥70 ≥40 1310 80-140 1681 Fig. 5.8 Drill template Tab. 5.3 Cut-out dimensions for surface mounting of appliance combinations www.bora.com...
  • Page 19 Bore holes for 2 cooktops and 1 cooktop extractor Boreholes for socket (2x external) Fig. 5.10 Fitting the control knob Bore holes for control knobs (5x) Cooktop (2x) Cooktop extractor Worktop Floor unit front panel Fig. 5.11 Wave spring once assembly is complete www.bora.com...
  • Page 20: Installing The Cooktop

    INFO If installation is rotated by 180°, the cooktop system [1] are at the front. display is automatically shown as rotated by 180°. INFO The device connection should be at the rear. Use INFO Cables of sufficient length are provided. the cable holders provided. www.bora.com...
  • Page 21: Establishing Communication

    [1]. ZONE1 INTERF. COM1 ZONE2 Fig. 5.18 Connections on the cooktop Connection of the front cooking zone control knob (zone 1) Connection of the automatic extraction system Connection of the rear cooking zone control knob (zone 2) www.bora.com...
  • Page 22: Establishing The Power Connection

    Australia and New Zealand (AUS/NZS) Tab. 5.4 Fuse protection and minimum cross-section If the connection cable has been damaged this must be replaced. This may only be done by an authorised member of the After Sales Service team. www.bora.com...
  • Page 23: Configuration Menu

    Touch the touch surface on the control knob again for the control knob display and the cooktop display 1 second to confirm the menu you want. is shown rotated by 180°. The sub-menu is accessed and the display switches to a three-character combination (e.g. C 23 www.bora.com...
  • Page 24: Changing The Set Value

    INFO If no settings are changed in a menu or submenu option for 2 minutes, the configuration menu is closed automatically. Sealing the devices Fig. 5.23 Silicone sealant for flush installation black, heat-resistant silicone sealant Fig. 5.24 Silicone sealant for surface mounting black, heat-resistant silicone sealant www.bora.com...
  • Page 25: Operation

    ß p After 10 minutes, the cooking zone is automatically switched back to power level Switching the power setting off early Turn the knob ring to the desired power level. The power level set is active and is displayed. www.bora.com...
  • Page 26: Bridging Function

    Heat retention cooking level selected (e.g. level INFO When the automatic heat up function is active, Symbol is displayed. Temperature in °C Tab. 6.2 Temperatures of heat retention levels www.bora.com...
  • Page 27: Childproofing Feature

    Switching the timer off early: want. Twist the knob ring to the 12 o’clock position. The childproofing feature is reactivated next time you The control knob display changes to 0, a beep sounds switch on. and the cooking zone switches off. www.bora.com...
  • Page 28: Pause Function

    6.2.10 Switching off the cooking zone INFO When is displayed, the cooking zone is still hot. INFO Turn the cooking zone off after use. Do not rely on the pan size recognition. Fig. 6.4 Switching off the cooking zone www.bora.com...
  • Page 29: Cleaning And Maintenance

    Never use the cooktop as a work or storage surface. Do not push or pull cookware over the cooktop. Always lift pots and pans. Keep the cooktop clean. Remove any dirt immediately. Only use cookware suitable for glass ceramic cooktops (see Appliance description chapter). www.bora.com...
  • Page 30: Cleaning The Control Knobs

    Dry the touch surface and the knob housing carefully. Place the knob ring back on the knob housing. INFO If the knob ring has not been fitted correctly, a segment rotating clockwise is displayed in the central control knob display ( www.bora.com...
  • Page 31: Troubleshooting

    After troubleshooting, turn the knob ring to the 12 o’clock position (0 position). In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter the error number displayed and the device type.
  • Page 32: Decommissioning, Disassembly And Disposal

    Take the old appliance to a regional collection point upwards. for return and recycling electrical and electronic Remove any other accessories. components and other materials. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com...
  • Page 33: Warranty, Technical Service, Spare Parts, Accessories

    In order to file a warranty claim, the end customer is to The BORA Service Team will require the type designation notify their dealer or BORA of the fault and must present and serial number of your device (FD number).
  • Page 34: Notes

    Notes 11 Notes www.bora.com...
  • Page 35 Notes www.bora.com...
  • Page 37 F +49 (0) 8035 / 9840-300 F +43 (0) 5373 / 62250-90 info@bora.com mail@bora.com www.bora.com www.bora.com Austria: Australia - New Zealand: BORA Vertriebs GmbH & Co KG BORA APAC Pty Ltd Innstraße 1 100 Victoria Road 6342 Niederndorf Drummoyne NSW 2047 Austria Australia...
