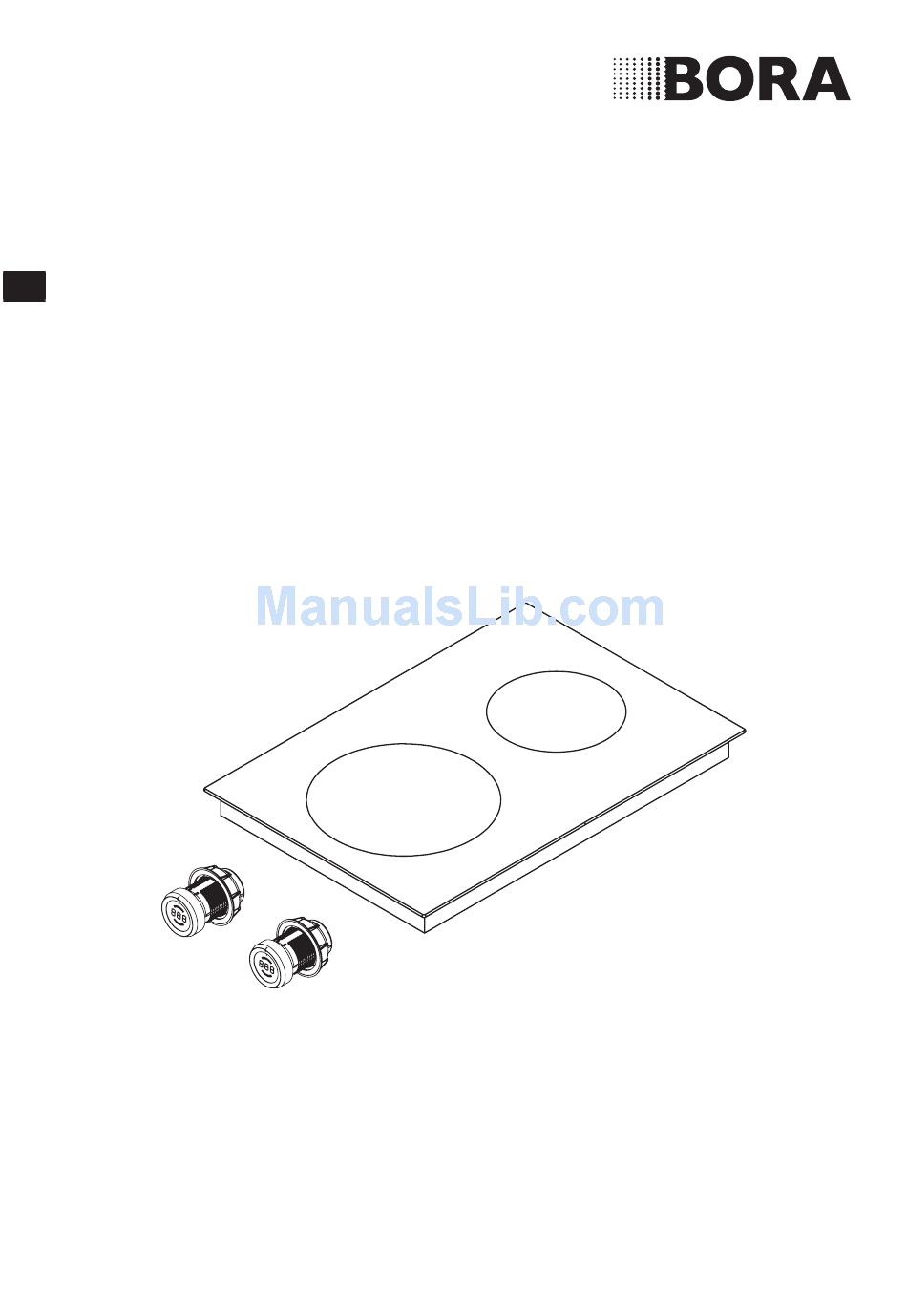

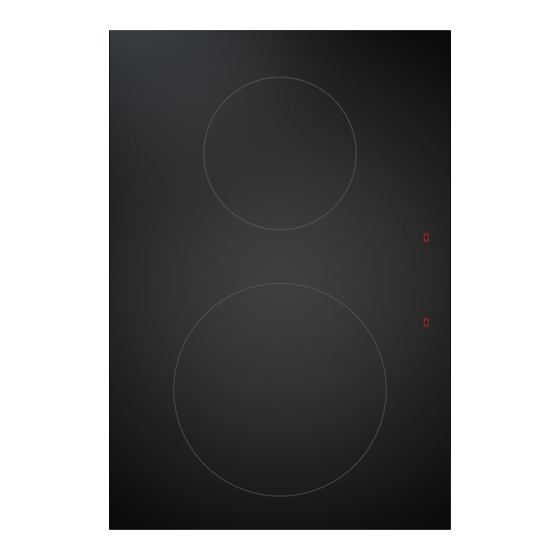

- Page 1 Operating and installation instructions PKI11 Induction glass ceramic cooktops PKI11UMEN-001 1039928 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
General operating instructions ......23 Operating the cooktop ........23 6.2.1 Switching on the cooking zone ......23 6.2.2 Power setting ........... 23 6.2.3 Automatic heat up function ....... 24 6.2.4 Switching off the automatic heat up function ..24 www.bora.com... -
Page 4: General Information
& Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - do not assume any liability for damage arising from non-adherence to these These operating and installation instructions apply for the... -
Page 5: Safety And Warning Information
Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com... -
Page 6: Safety
Pay attention to the residual heat display. cause malfunctions of pacemakers, Switch the device off after use. hearing aids or metallic implants. Do not rely on the pan size recognition. Issues with pacemakers are unlikely. Keep pets away from the appliance. www.bora.com... -
Page 7: Safety Instructions - Operation
Do not use steam cleaners. The steam can flammable liquids! cause a short-circuit on live parts and Flammable liquids in the vicinity of the cooktop can explode and cause serious injury. Do not place any flammable liquids in the vicinity of the cooktop. www.bora.com... - Page 8 Unattended pans can boil over Do not place any items on the allowing hot liquids to escape. cooktop. Please use suitable tools Always keep an eye on pans while (pot holders, oven gloves). cooking. Short cooking sessions must be constantly monitored. www.bora.com...
-
Page 9: Safety Instructions - Installation
3 mm across all poles (circuit breaker, Work on electrical components must only be fuses, automatic circuit breakers, conducted by trained electrical personnel. contactors). www.bora.com... -
Page 10: Safety Instructions - Spare Parts
Use an authorised measuring here is classed as unintended. BORA does not device to ensure that there is no assume any liability for damages caused by power to the appliance. -
Page 11: Technical Data
3700 W Rear cooking zone Ø 165 mm 1400 W Power setting 2200 W Fig. 3.2 PKI11 Device dimensions aerial view Cooktop energy consumption Front cooking zone Ø 230 mm 179.4 (Wh/kg) Back cooking zone Ø 155 mm 178.3 (Wh/kg) Total (average) 178.8 (Wh/kg) -
Page 12: Device Description
Control knob for the back cooking zone Control knob for the front cooking zone Fig. 4.4 Control knob display elements Display of functions Power display Front cooking zone display Display of mode or operating mode Rear cooking zone display www.bora.com... -
Page 13: Functional Principle
A slight the power level set. adjustment is needed in comparison to conventional cooking systems when selecting the power level in order to avoid burning food. www.bora.com... -
Page 14: Heat Retention Levels
Suitable cookware is made of: stainless steel with a magnetisable base enamelled steel cast iron Cooking zone Minimum diameter PKI11 front back 120 mm 90 mm Tab. 4.5 Minimum cookware diameter Perform a magnet test, if necessary. If a magnet sticks to the base of the utensils, they are normally induction compatible. -
Page 15: Timer Functions
Each cooking zone is switched off automatically when the cooking zone in the power level or heat retention level Thechildproofingfeaturepreventsthecooktopfrom exceeds the maximum operating duration. The control beingswitchedonaccidentally.The childproofingfeature knob display shows (residual heat display). can only be activated when all the cooking zones are switchedoff(seetheOperationsection). www.bora.com... -
Page 16: Installation
If there are any missing or damaged parts, please 5.4.1 Worktop overhang notify BORA After Sales Service immediately. Do not under any circumstances install parts which are damaged. ≥74 Dispose of transport packaging in the proper manner (see the Decommissioning and Disposal section). -
Page 17: Flush Installation
Cross bars on the kitchen unit in the area of the worktop cut-out may need to be removed. The drawers and/or shelves in the floor unit must be removable for maintenance and cleaning purposes. Make sure that the area below the cooktop is sufficiently ventilated (see ‘Air supply cooktop’). www.bora.com... -
Page 18: Air Supply Cooktop
Cooktop Worktop Floor unit panel Fig. 5.11 Fitting the control knob Fig. 5.8 Air supply via the plinth area Air supply in the plinth area through the plinth panel Air supply in the plinth area through the body www.bora.com... -
Page 19: Installing The Cooktop
If applicable, insert the height adjustment plates [2]. 90 196 Fig. 5.13 Bore holes for 3 cooktops and 2 extractors Bore holes for socket (2x external) Bore holes for control knobs (8x) Cooktop 3x Cooktop extractor (2x) Worktop Floor unit panel www.bora.com... -
Page 20: Seal The Cooktop
Make sure that no silicone sealant gets under the cooktop. Fig. 5.20 Connection the control knob to the cooktop on the front Fig. 5.17 Silicone sealant for flush installation Connection the control knob for the front cooking zone Connection the extraction system www.bora.com... -
Page 21: Establishing The Power Connection
Make sure the power to the appliance is disconnected. INFO In the three-character combination shown, the Only connect the cooktop using a permanent right-hand figure shows the value saved in the connection to a power supply cable. system. 220 - 240 V~ Fig. 5.21 Connection diagram 1-phase www.bora.com... -
Page 22: Changing The Setting
Installation 0° Factory setting C 20 operating and installation instructions for safe storage. Installation 180° C2 1 Tab. 5.7 Installation direction INFO For installation rotated around 180°, the C2 1 assign the correct cooking zones inside the control knob display. www.bora.com... -
Page 23: Operation
After 10 minutes, the cooking zone is automatically switched back to power level Switching the power setting off early Turn the knob ring to the desired power level. The power level set is active and is shown in the control knob display. www.bora.com... -
Page 24: Automatic Heat Up Function
An acoustic signal can be heard and the display on the control knob switches to . After 10 seconds, another acoustic signal sounds and the display goes out. The childproofing feature is activated. Fig. 6.3 Knob ring setting for heat retention level www.bora.com... -
Page 25: Using The Timer Function
A beep sounds and the power level selected is shown 3 seconds to turn the knob ring to the power level on the control knob display. you want. The cooking session continues. This activates the timer function and the time starts to count down. www.bora.com... -
Page 26: Switching Off The Cooking Zone
Twist the knob ring to the 12 o’clock position. A beep sounds and the cooking zone is deactivated. The cooktop is switched off when there are no longer any active cooking zones. Pay attention to the residual heat display (see the Device Description section). www.bora.com... -
Page 27: Cleaning And Maintenance
(see Device description section). Cleaning the cooktop Fig. 7.1 Pull out the knob ring Make sure that the cooktop is switched off (see the Operation section). Knob casing Wait until all cooking zones are cold. Touch surface knob ring www.bora.com... -
Page 28: Cleaning The Knob Ring
Dry the touch surface and the knob housing carefully. Place the knob ring back on the knob housing. INFO If the knob ring has not been fitted correctly, a segment rotating clockwise is displayed in the central control knob display www.bora.com... -
Page 29: Troubleshooting
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position). In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter the error number displayed and the device type. -
Page 30: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it for return and recycling electrical and electronic upwards. components and other materials. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 31: Warranty, Technical Service And Spare Parts
BORA specialist supplier or the BORA Service Team. The BORA Service Team requires the type designation and the build number of your appliance (FD number). Both pieces of information can be found on the nameplate on the back of the instructions and on the appliance base. - Page 32 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.bora-australia.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
