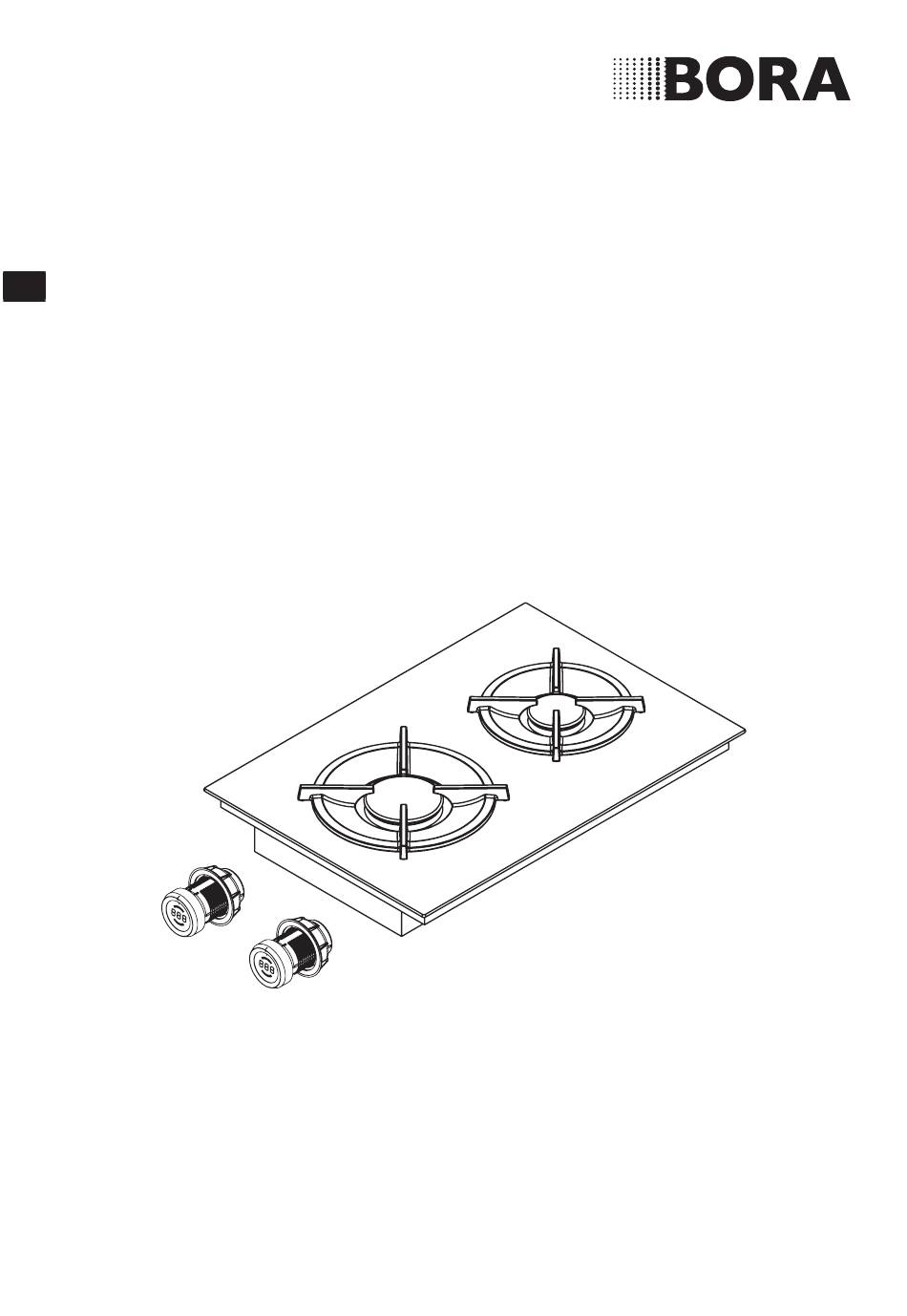

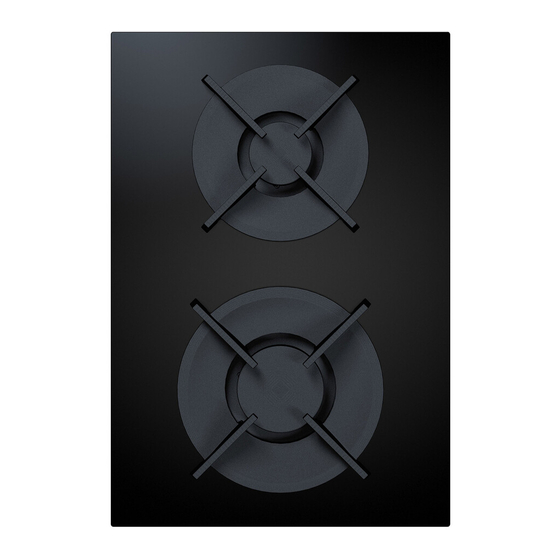

- Page 1 Operating and installation instructions PKG11 Gas glass ceramic cooktop with 2 cooking zones PKG11UMEN-000 1038527 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
Changing the gas type ........22 5.6.4 Nozzle table ............23 Configuration menu .......... 23 5.7.1 Accessing the configuration menu ....23 5.7.2 Select menu option ........... 23 5.7.3 Changing the setting ......... 24 5.7.4 Exiting configuration menu ........ 24 Handover to user ..........24 www.bora.com... -
Page 4: General Information
& Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - do not assume any liability for damage arising from non-adherence to these These operating and installation instructions apply for the... - Page 5 Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com...
-
Page 6: Safety
XKeep pets away from the appliance. XSupervise children in the vicinity of the appliance. XChildren must not play with the appliance. Use the childproofing feature to prevent children accidentally switching the cooktop on or changing the settings. www.bora.com... -
Page 7: Safety Instructions - Operation
LS switches, fuses, automatic circuit breakers or contactors. DANGER! Risk of explosion from gas! Gas leaks can cause explosions and serious injuries. XKeep ignition sources (naked flames, heaters) away. XClose the gas supply and switch the building supply off. www.bora.com... - Page 8 XKeep children away from the and the pan base can evaporate and cooktop when it is hot or ensure cause burns. they are supervised at all times. XMake sure that the cooking zone and the pan base are always dry. www.bora.com...
-
Page 9: Safety Instructions - Installation
A damaged mains connection cable can cause a (deadly) electric shock. XMake sure that the mains connection cable cannot come into contact with hot hobs. XMake sure that the connection cable is not squashed or damaged. www.bora.com... -
Page 10: Safety Instructions - Disassembly And Disposal
Comply with the local regulations of the utility This appliance is not intended for: companies. Outdoor use Installation in vehicles Heating rooms Use in non-stationary installation sites (e.g. on ships) www.bora.com... - Page 11 Any use other than that specified in these operating and installation instructions or any use that goes beyond that which is described here is classed as unintended. BORA does not assume any liability for damages caused by improper use or incorrect operation.
-
Page 12: Technical Data
11.1 kg Cooktop Power levels Heat retention levels Front high-power burner 700-3000 W Fig. 3.2 PKG11 Device dimensions aerial view Rear normal burner 450-1750 W Total nominal connection values 4.75 kW/347 g/h liquid gas: Total nominal connection values 4.75kW / 0.588m³/h... -
Page 13: Device Description
Display of functions Normal back burner Power display Pan support rear Front cooking zone display Pan support front Display of mode or operating mode Control knob for the back hob Rear cooking zone display Control knob for the front hob www.bora.com... -
Page 14: Functional Principle
Burner position Recommended pan Minimum pan Heat retention level Symbol Temperature diameter diameter 40° C Normal burner 140-200 mm 120 mm 55° C High-power burner 180-260 mm 160 mm 70° C Tab. 4.2 Pan diameters Tab. 4.5 Heat retention levels www.bora.com... -
Page 15: Timer Functions
Risk of burns and fire! After switching it off, the cooking zone remains hot. is displayed in the control knob display (residual heat display). The display goes out after a sufficient cooling time (temperature < 60 °C). www.bora.com... -
Page 16: Installation
If there are any missing or damaged parts, please notify BORA After Sales Service immediately. INFO The hose connection must be laid in such Do not under any circumstances install parts which are a way that it is not subject to deformation, damaged. -
Page 17: Assembly Instructions
Create the worktop cut-out taking into account the specified cut-out dimensions. B ±2 Make sure that the cutting surfaces of the worktops are properly sealed. Comply with the instructions of the worktop manufacturer. 5.4.1 Worktop overhang ≥74 Fig. 5.5 Surface mounting Fig. 5.2 Worktop overhang www.bora.com... -
Page 18: Installing The Cooktop
Cooktop The drawers and/or shelves in the floor unit must be Worktop removable for maintenance and cleaning purposes. Floor unit panel Make sure that the area below the cooktop is sufficiently ventilated. www.bora.com... -
Page 19: Installing The Cooktop
For a normal installation, please note that the Cooktop extractor connections for the control knob and the extraction Worktop system [1] are at the front. Floor unit panel INFO The device connection should be at the rear. Use the cable holders provided. www.bora.com... -
Page 20: Seal The Cooktop
Turn the gas connection hose so the connection is at the rear. Fig. 5.18 Connection the control knob on the back For the installation, proceed as described above. Change the installation direction in the configuration Connection the control knob on the back menu (see Configuration menu). www.bora.com... -
Page 21: Establishing The Power Connection
If the connection line has been damaged this must be particular. replaced by a special connection line. This may only Always ensure sufficient ventilation during operation be done by an authorized member of the After Sales (of the appliance). Service team. www.bora.com... -
Page 22: Gas Connection
Seal the point from which the gas is leaking. Re-check all connections and the gas connection. Repeat the leak test until all connections are tight. Create a leak test record and give this to the user. www.bora.com... -
Page 23: Nozzle Table
For installation rotated around 180°, the C2 1 assign the correct cooking zones inside the Tab. 5.6 Menu options in the configuration menu control knob display. Touch the touch surface on the control knob again for 1 second to confirm the menu you want. www.bora.com... -
Page 24: Changing The Setting
If no settings are changed in a menu or sub- menu option for 2 minutes, the configuration menu is closed automatically. Handover to user Once installation is complete: Explain the main functions to the user. Explain all safety-related aspects of operation and handling to the user. www.bora.com... -
Page 25: Operation
Once the pan contents are simmering, put the gas burner on the lowest power level (small flame). Fig. 6.2 Switching on the cooking zone Centrally position the cookware on the gas hob. Turn the knob ring from the 12 o-clock position to a power level. www.bora.com... -
Page 26: Automatic Heat Up Function
Each time, this is confirmed by a beep and the relevant symbol is shown on the control knob display. Switching off heat retention level The heat retention level activated switches off if you select another power level switch off the cooking zone www.bora.com... -
Page 27: Childproofing Feature
In the range from 0 to 20 minutes, the time reduces/ A beep can be heard and the control knob display increases in both directions by one minute at a time, shows in front of the power level. The cooking session is interrupted. www.bora.com... -
Page 28: Switching Off The Cooking Zone
Twist the knob ring to the 12 o’clock position. A beep sounds and the cooking zone is deactivated. The cooktop is switched off when there are no longer any active cooking zones. Pay attention to the residual heat display (see the Device Description section). www.bora.com... -
Page 29: Cleaning And Maintenance
Make sure that the cooktop is switched off (see the Operation section). Make sure the gas supply is interrupted and stopped. Wait until all cooking zones are cold. Remove all coarse dirt and food residues from the cooktop using a glass ceramic scraper. www.bora.com... -
Page 30: Cleaning The Gas Burner Components
Place the burner lid [1] on the burner head [2] so it fits central control knob display perfectly. If the burner parts are not put together correctly, the electric ignition will not work. www.bora.com... -
Page 31: Troubleshooting
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position). In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter the error number displayed and the device type. -
Page 32: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it components and other materials. upwards. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 33: Warranty, Technical Service And Spare Parts
BORA specialist supplier or the BORA Service Team. The BORA Service Team requires the type designation and the build number of your appliance (FD number). Both pieces of information can be found on the nameplate on the back of the instructions and on the appliance base. -
Page 34: Notes
Notes: 11 Notes: www.bora.com... - Page 36 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
