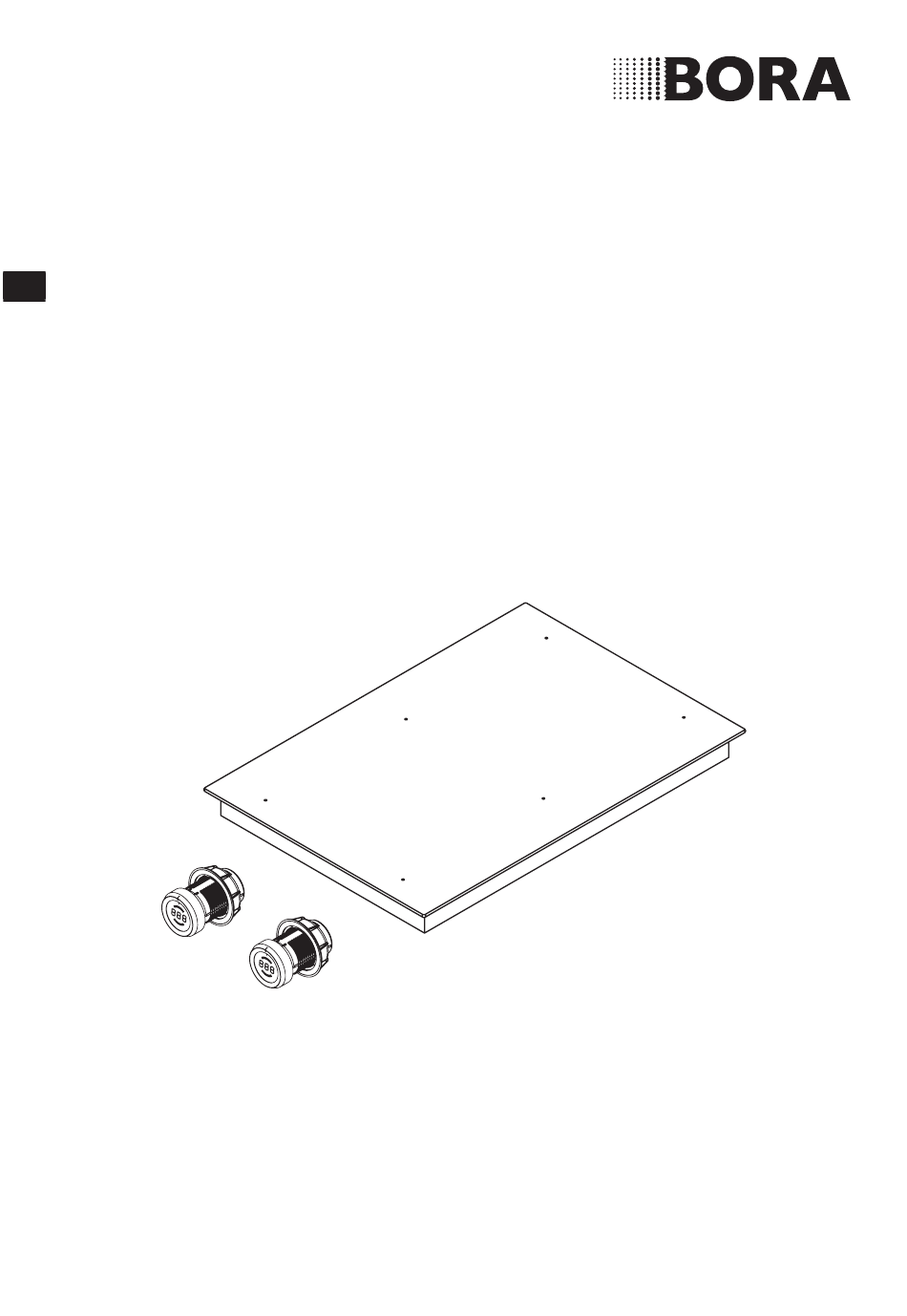

- Page 1 Operating and installation instructions PKFI11 Surface induction glass ceramic cooktop PKFI11UMEN-000 1038509 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
Changing the setting ......... 21 5.6.4 Exiting configuration menu ........ 22 Handover to user ..........22 Operation General operating instructions ......23 Operating the cooktop ........23 6.2.1 Switching on the cooking zone ......23 6.2.2 Power setting ........... 23 www.bora.com... -
Page 4: General Information
& Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - do not assume any liability for damage arising from non-adherence to these These operating and installation instructions apply for the... - Page 5 Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com...
-
Page 6: Safety
Households with children and people with special needs XThe appliance can be used by children aged 8 and above as well as people with reduced physical, sensory or mental capacities or a www.bora.com... -
Page 7: Safety Instructions - Operation
XNever touch the cooktop when it XAlways lift the cookware (do not pull) to is hot. avoid scratching or wearing the surface. XKeep children away from the cooktop when it is hot or ensure they are supervised at all times. www.bora.com... -
Page 8: Safety Instructions - Installation
The device must only be installed and assembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies. Work on electrical components must be conducted by trained electrical personnel. www.bora.com... -
Page 9: Safety Instructions - Disassembly And Disposal
XRemoving the cooktop from the packaging is a two-person job. XPlacing the cooktop into the work- top cut-out is a two-person job. XUse appropriate aids to prevent damage or injuries to limbs or torso. www.bora.com... -
Page 10: Safety Instructions - Spare Parts
Any use other than that specified in these operating and installation instructions or any use that goes beyond that which is described here is classed as unintended. BORA does not assume any liability for damages caused by improper use or incorrect operation. -
Page 11: Technical Data
Rear cooking zone Power 230 x 230 mm 2100 W setting 3700 W Cooktop energy Fig. 3.2 PKFI11 Device dimensions aerial view consumption Front cooking zone 230 x 230 mm 182.2 (Wh/kg) Back cooking zone 230 x 230 mm 181.1 (Wh/kg) -
Page 12: Device Description
Control knob for the back cooking zone Control knob for the front cooking zone Fig. 4.4 Control knob display elements Display of functions Power display Front cooking zone display Display of mode or operating mode Rear cooking zone display www.bora.com... -
Page 13: Functional Principle
Observe the minimum pot base diameter. INFO Never heat up oil, fat and the like at this power setting. The bottom of the pan can overheat due to the high power output. www.bora.com... -
Page 14: Automatic Heat Up Function
... after 10 minutes if no pan is detected. The cooking feature magnetic properties and possess a zone then switches off automatically and can only sufficient bottom surface. be switched back on after the control knob has been turned back to the zero position. www.bora.com... -
Page 15: Timer Functions
10 minutes. The control knob indicator switches to The set power level is reduced. The cooking zones switch off automatically (see safety shut-down of the cooking zones). 4.4.4 Childproofing feature Thechildproofingfeaturepreventsthecooktopfrom beingswitchedonaccidentally.The childproofingfeature can only be activated when all the cooking zones are switchedoff(seetheOperationsection). www.bora.com... -
Page 16: Installation
Make sure that the cutting surfaces of the worktops If there are any missing or damaged parts, please are properly sealed. notify BORA After Sales Service immediately. Comply with the instructions of the worktop Do not under any circumstances install parts which are manufacturer. -
Page 17: Flush Installation
Cross bars on the kitchen unit in the area of the worktop cut-out may need to be removed. The drawers and/or shelves in the floor unit must be removable for maintenance and cleaning purposes. Make sure that the area below the cooktop is Fig. 5.5 Surface mounting sufficiently ventilated. www.bora.com... -
Page 18: Optional Cable Protection
Bore holes for 2 cooktops and 1 extractor ≥70 Bore holes for socket (2x external) Bore holes for control knobs (5x) Cooktop 2x Cooktop extractor Worktop 80-140 Floor unit panel Fig. 5.9 Drill template Cooktop Worktop Floor unit panel www.bora.com... -
Page 19: Installing The Cooktop
[1] are at the front. devices with black, heat-resistant silicone sealant. Installation rotated around 180°. Rotate the cooktop around 180°. For the installation, proceed as described above. Change the installation direction in the configuration menu (see Configuration menu). www.bora.com... -
Page 20: Seal The Cooktop
Connection the control knob on the back replaced by a special connection line. This may only be done by an authorized member of the After Sales Service team. Switch off the main switch/automatic circuit breaker before connecting the cooktop. www.bora.com... -
Page 21: Configuration Menu
In the three-character combination shown, the for 1 second to confirm the new setting. The value right-hand figure shows the value saved in the is saved and a beep sounds. The previously selected system. menu option is shown again on the control knob display. www.bora.com... -
Page 22: Exiting Configuration Menu
Explain all safety-related aspects of operation and handling to the user. Affix the nameplate supplied to the back of these operating and installation instructions. Provide the user with the accessories and the operating and installation instructions for safe storage. www.bora.com... -
Page 23: Operation
After 10 minutes, the cooking zone is automatically switched back to power level Switching the power setting off early Turn the knob ring to the desired power level. The power level set is active and is shown in the control knob display. www.bora.com... -
Page 24: Bridging Function
If a higher continuous cooking level is selected while Each time, this is confirmed by a beep and the relevant the automatic heat up function is active, the new heat- symbol is shown on the control knob display. up time is automatically valid. www.bora.com... -
Page 25: Childproofing Feature
Set time Switching off the short-time timer (egg timer) early: Twist the knob ring to the 11 o’clock position. Press the touch surface of the knob ring. appears on the control knob display. The short-time timer is deactivated. www.bora.com... -
Page 26: Pause Function
A beep sounds and the cooking zone is deactivated. The cooktop is switched off when there are no longer any active cooking zones. Pay attention to the residual heat display (see the Device Description section). Configuration menu see the Installation section www.bora.com... -
Page 27: Cleaning And Maintenance
Remove all coarse dirt and food residues from the The knob ring can only be cleaned by hand. cooktop using a glass ceramic scraper. Remove the knob ring from the knob housing. Put the detergent onto the cold cooktop. Use a cleaner and degreaser in one. www.bora.com... -
Page 28: Cleaning The Touch Surface And The Knob Housing
Dry the touch surface and the knob housing carefully. Place the knob ring back on the knob housing. INFO If the knob ring has not been fitted correctly, a segment rotating clockwise is displayed in the central control knob display www.bora.com... -
Page 29: Troubleshooting
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position). In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter the error number displayed and the device type. -
Page 30: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it for return and recycling electrical and electronic upwards. components and other materials. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 31: Warranty, Technical Service And Spare Parts Warranty
BORA specialist supplier or the BORA Service Team. The BORA Service Team requires the type designation and the build number of your appliance (FD number). Both pieces of information can be found on the nameplate on the back of the instructions and on the appliance base. - Page 32 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
